The 5-axis CNC stone cutting machine from Hualong Machinery features a high-rigidity frame structure with a cast beam for the cross girder. The entire machine operates smoothly without vibration, maintaining consistent precision during continuous high-intensity production operations. Equipped with 5-axis simultaneous linkage, it can process a wide range of workpieces including polygons, arcs, moldings, and three-dimensional sculptural shapes.

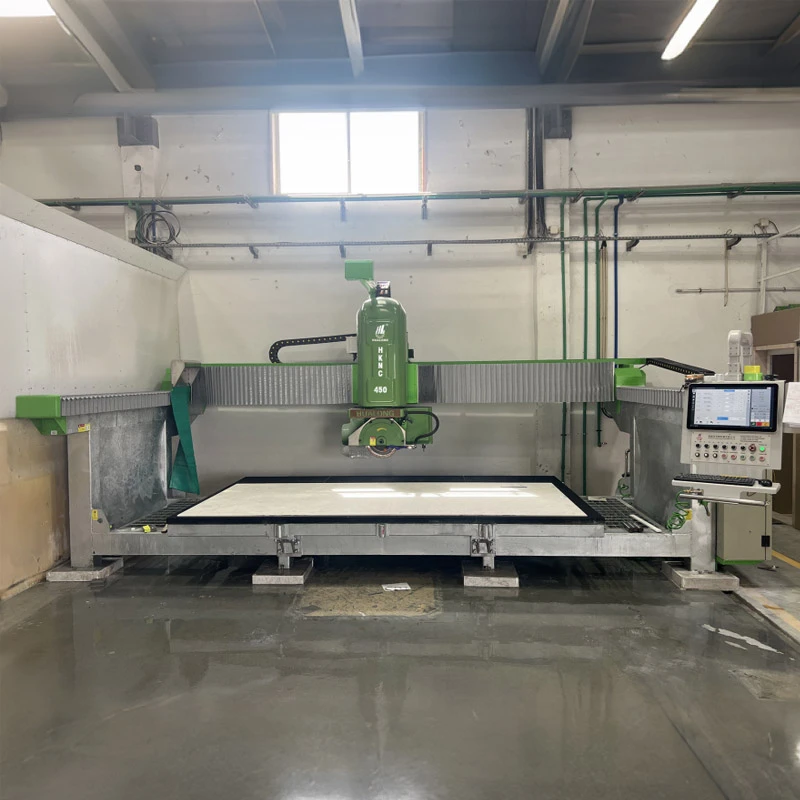

Hualong HKNC-450 PLUS 5-Axis CNC Stone Cutting Machine is tailored to the practical working scenarios of overseas customers. It is equipped with a large 3500*2100mm worktable and an 85° tilting function, facilitating loading of large stone slabs. Fitted with professional Italian ESA control system and PEGASUS CAD/CAM software, the machine supports one-click import of drawing files to automatically generate cutting paths. The intelligent control system delivers greater operational convenience for users.
Main Applications
Suitable for cutting marble, granite, sintered stone, quartz stone and other stone materials. It can fabricate kitchen & bathroom countertops, floor paving slabs, exterior wall dry-hanging stone, window sills, threshold stones, cabinet stone components, special-shaped furniture stone pieces, curved moldings and 3D sculptural shapes.
Technical Parameters
|
Model NO |
UNIT |
HKNC-450 PLUS |
|
Diameter of saw blade |
mm |
450 |
|
Dimension of working platform |
mm |
3500×2100 |
|
Max.cutting size |
mm |
3500×2100 |
|
Max. cutting thickness |
mm |
95 |
|
Max. lifting stroke |
mm |
250 |
|
Power of main motor |
kw |
15 |
|
Power of electro-spindle |
kw |
5.5 |
|
Power of cutter frame reciprocating motor |
kw |
2 |
|
Power of crossbeam shifting motor |
kw |
1.1 |
|
Power of hydraulic station motor |
kw |
2.2 |
|
Power of lifting motor |
kw |
0.85 |
|
Water consumption |
m³/h |
2 |
|
Dimensions (L x W x H) |
mm |
5900×3380×2770 |
|
Gross weight |
kg |
4000 |
Main Functions
The cutting head can rotate 360°, enabling bevel cutting, arc cutting, circular cutting and special-shaped contour machining.
The saw blade supports chamfer cutting ranging from 0° to 90°, fulfilling a full range of customized chamfer processing requirements.

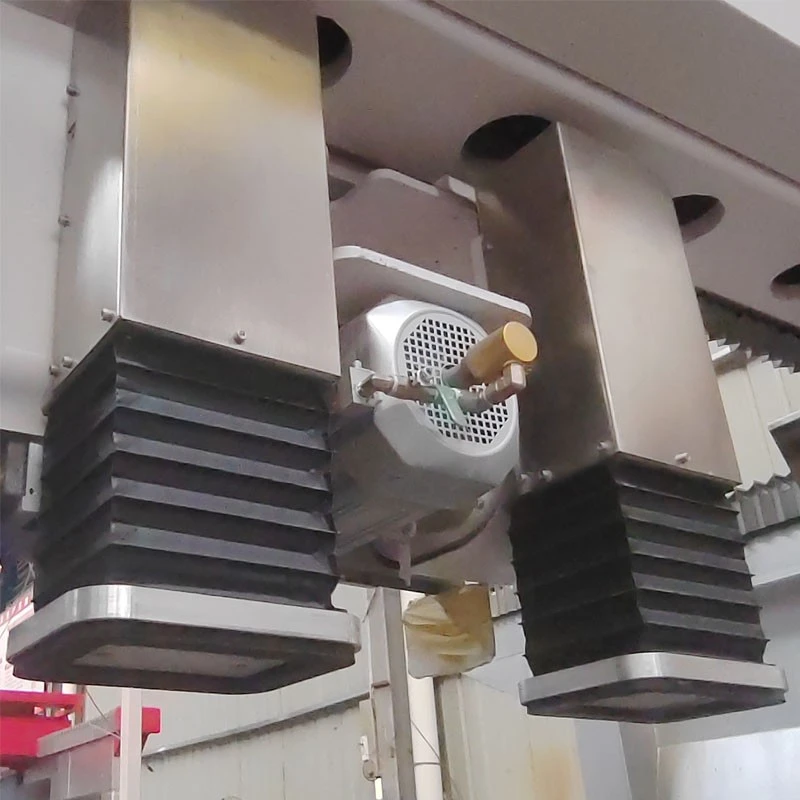

Equipped with a vacuum suction cup system to shift stone slabs to designated processing positions.
Independent milling spindle: fitted with a high-speed standalone motor spindle. Mounted with milling cutters, it realizes milling, drilling, engraving and other machining operations.
Optional Functions
AI Automatic Nesting: The camera captures images of stone slabs to automatically arrange cutting layouts. It eliminates manual operations and intelligently generates optimized cutting paths to reduce material waste.
AI Texture Splicing: Automatically tracks and matches stone veins to produce finished products with superior aesthetic effects.
3D Engraving Function: Supports engraving of three-dimensional sculptural shapes.
Tool Setter: Measures the diameter and specifications of saw blades and milling cutters.
Slab Thickness Gauge: Automatically detects the thickness of stone slabs.
For more customized solutions, please contact us.
FAQ
Q: What control system is equipped on the machine?
A: The machine adopts the Italian ESA control system.
Q: Does the machine hold CE certification?
A: Yes, all our machines are CE certified and meet export standards for most countries.
Q: What is the maximum diameter of the saw blade that the machine can install?
A: It supports diamond saw blades with specifications ranging from 350 mm to 450 mm.
Q: How long is the production lead time for the machine?
A: The standard production lead time is 30 days.
Q: What is the warranty period of the machine?
A: We offer a 12-month warranty for the machine.
Q: What trade terms are available?
A: We support common trade terms including FOB, CIF and EXW.
Q: What after-sales services are available for overseas customers?
A: We provide two types of after-sales support: online and on-site. Online service includes rapid troubleshooting and technical guidance. For offline support, we offer technician dispatch service; technicians can be sent to the customer's factory site upon request.
