Fujian Hualong Machinery Co., Ltd. (China) manufactures 4+1 axis bridge saws equipped with Italy's ESA control system and Pegasus CAD/CAM software, which better align with the operating habits of overseas customers.
With over 30 years of experience in the stone machinery industry, our company now serves clients across more than 100 countries worldwide. We have obtained ISO 9001 certification, and all our products carry CE certification. Our professional technical and after-sales teams deliver high-quality, timely support to customers at all times.

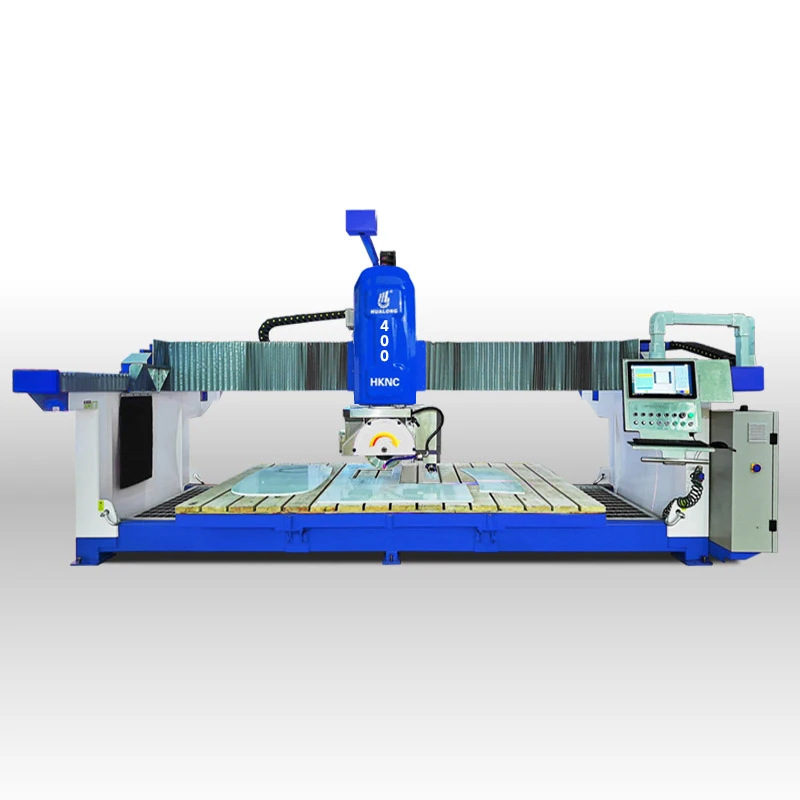

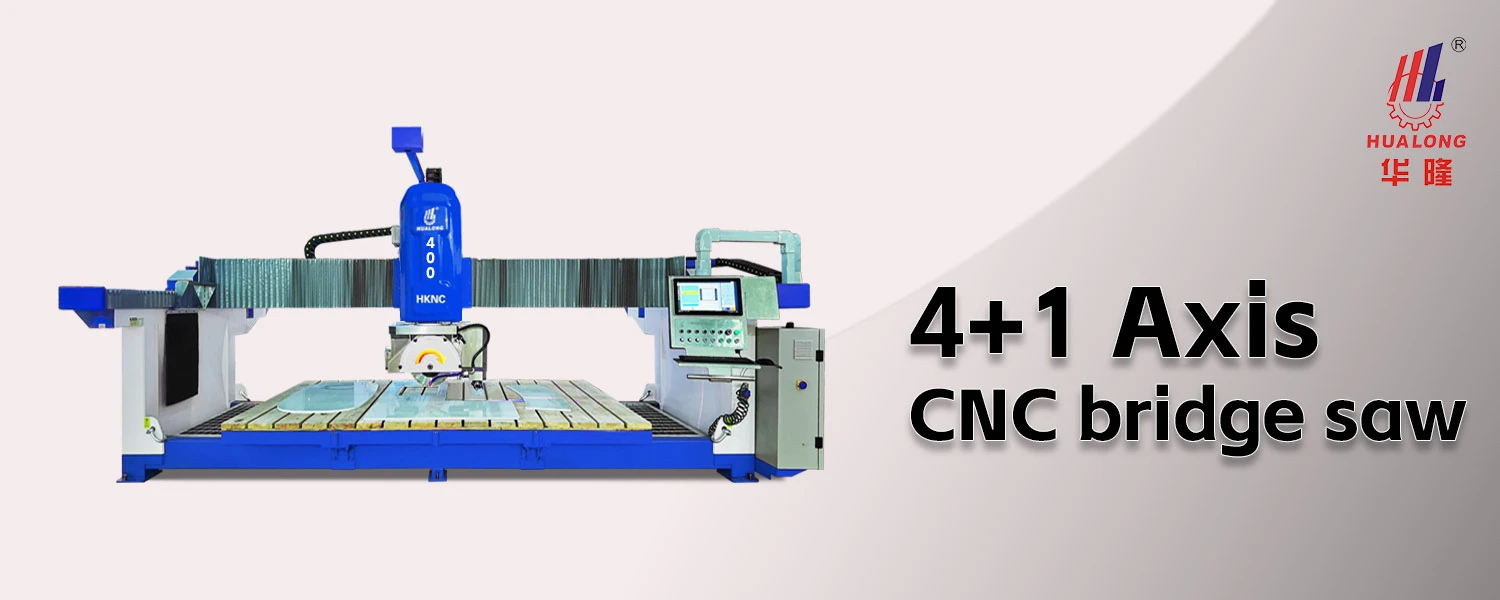

Hualong Machinery HLNC-400 4+1 Axis Bridge Saw is developed based on the traditional 4-axis model with an independent spindle dedicated to milling. It supports cutting, chamfering and edge trimming with saw blades, as well as hole drilling and milling with milling cutters. This machine delivers outstanding cost performance for countertop processing factories.
Main Functions
The cutting head can rotate 360° to perform miter cutting, arc cutting and special-shaped cutting.
The saw blade supports 45° chamfer cutting
Camera scanning function: capture images of stone slabs to layout and optimize cutting paths automatically
Vacuum suction system: moves slabs to designated positions without interfering with subsequent cutting procedures Independent auxiliary milling spindle: enables precise processing operations including milling and hole routing for finer workmanship
The worktable can tilt up to 85°.
Technical Parameters
| MODEL NO | Unit | HLNC-400 4+1 |
| Diameter of saw blade | mm | Φ350-400 |
| Dimension of working platform | mm | 3500×2100 |
| Max. cutting length | mm | 3500 |
| Max. cutting thickness | mm | 80 |
| Max. lifting stroke | mm | 250 |
| Max.lifting weight by suction cups | kg | 100 |
| Power of main motor | kw | 15 |
| Power of electro-spinele | kw | 5.5 |
| Power of cutter frame reciproctating motor | kw | 1.6 |
| Power of crossbeam shifting motor | kw | 1.3 |
| Power of hydraulic station motor | kw | 2.2 |
| Power of lifting motor | kw | 0.85 |
| Water consumption | m³/h | 2 |
| Dimensions (L x W x H) | mm | 6000×3380×2770 |
| Gross weight | kg | 4500 |
FAQ
Q: What is the worktable size of this machine?
A: The worktable dimension is 3500*2100mm.
Q: Which control system is equipped on the machine?
A: It is fitted with Italian ESA control system.
Q: Do you support export? Is the machine CE certified?
A: Yes, we provide export service. We have professional technical and after-sales teams serving customers all over the world, and all our machines hold CE certification.
Q: Do you offer on-site installation and technical training for overseas customers?
A: Yes, we provide on-site installation and operation training for global clients.
Q: What is the production lead time of the machine?
A: The standard production lead time is 30 days, subject to specific configurations and production schedule.
Q: How long is the machine warranty period?
A: The warranty period is 12 months.
Contact Information
Manufacturer: Fujian Hualong Machinery Co., Ltd., China
Official Website: https://www.stonemachineryfactory.com/
E-mail: claire@hualongm.com
WhatsApp / WeChat: +86 182 0602 5556
| MODEL NO | Unit | HLNC-400 4+1 |
| Diameter of saw blade | mm | Φ350-400 |
| Dimension of working platform | mm | 3500×2100 |
| Max. cutting length | mm | 3500 |
| Max. cutting thickness | mm | 80 |
| Max. lifting stroke | mm | 250 |
| Max.lifting weight by suction cups | kg | 100 |
| Power of main motor | kw | 15 |
| Power of electro-spinele | kw | 5.5 |
| Power of cutter frame reciproctating motor | kw | 1.6 |
| Power of crossbeam shifting motor | kw | 1.3 |
| Power of hydraulic station motor | kw | 2.2 |
| Power of lifting motor | kw | 0.85 |
| Water consumption | m³/h | 2 |
| Dimensions (L x W x H) | mm | 6000×3380×2770 |
| Gross weight | kg | 4500 |
