The Hualong Machinery 4+1 Axis Stone Cutting Machine is crafted with precision manufacturing techniques. It features a high-rigidity frame structure and cast beam that resists deformation, ensuring stable performance during long-duration continuous operations.

Equipped with a 3500×2100 mm worktable, the machine accommodates processing of large-size whole stone slabs. Paired with a numerical control system, it completes complex cutting processes in a single setup without repeated clamping, significantly boosting production efficiency.

This machine holds EU CE certification and is eligible for export to all countries worldwide.

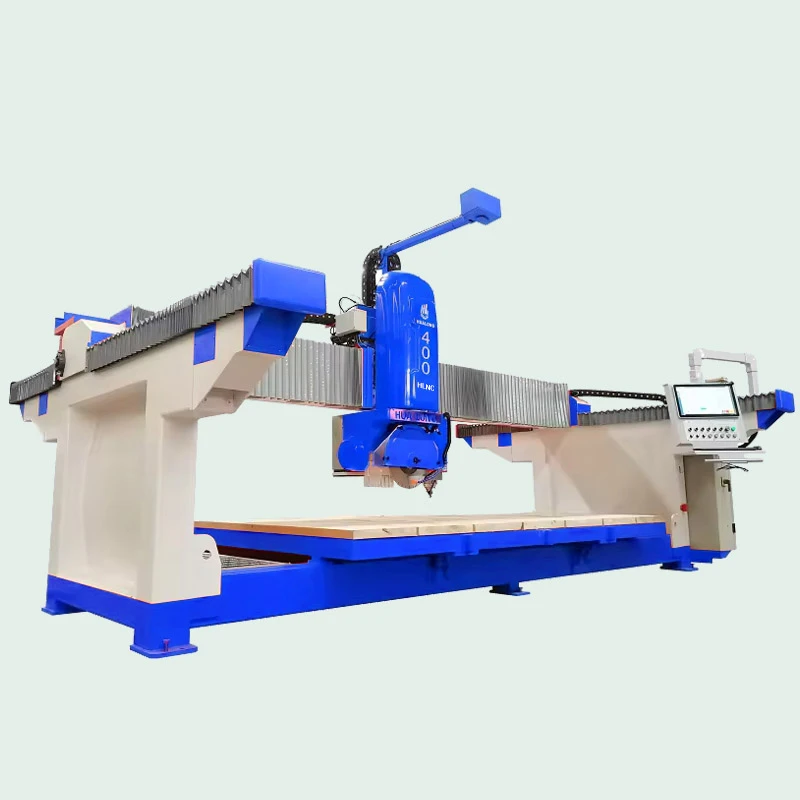

Hualong Machinery HLNC-400 4+1 Axis Stone Cutting Machine is equipped with Italy-made ESA control system and Pegasus CAD/CAM software. Drawings can be imported directly to generate cutting paths automatically.

Featuring 4-axis linkage plus an independent milling spindle, it supports multiple processing functions including edge trimming, chamfering, arc cutting and hole drilling. This machine is suitable for processing large slabs such as marble, granite, quartz stone and sintered stone.

Equipment Functions & Configurations

Camera Function: Takes photos of stone slabs to capture slab images and optimize nesting layout of cutting paths.

Vacuum Suction Function: Capable of lifting slabs weighing up to 100KG. It moves cut pieces to designated positions to prevent material waste caused by over-cutting.

Milling Spindle: Equipped with a high-speed 5.5KW electric spindle for hole drilling, letter engraving, edge milling and other machining operations.

Worktable: The 3500*2100mm worktable can tilt up to 85°, facilitating easy slab loading.

Technical Parameters

MODEL NO	Unit	HLNC-400 4+1
Diameter of saw blade	mm	Φ350-400
Dimension of working platform	mm	3500×2100
Max. cutting length	mm	3500
Max. cutting thickness	mm	80
Max. lifting stroke	mm	250
Max.lifting weight by suction cups	kg	100
Power of main motor	kw	15
Power of electric spindle	kw	5.5
Power of cutter frame reciproctating motor	kw	1.6
Power of crossbeam shifting motor	kw	1.3
Power of hydraulic station motor	kw	2.2
Power of lifting motor	kw	0.85
Water consumption	m³/h	2
Dimensions (L x W x H)	mm	6000×3380×2770
Gross weight	kg	4500

Equipment Application

Kitchen & Countertop Series

Standard right-angle countertops, L-shaped countertops, bar counters, window sills, under-mount sinks, integrated sinks, cutouts for gas stoves, induction cooktop cutouts, faucet holes, small holes for soap dispensers, pipeline holes for water purifiers, vanity basin cutouts, bathroom vanity tops, laundry basin tops

Engineering Building Materials Series

Floor paving, dry-hung wall cladding, stair treads, door sills, shower curb stones, anti-slip shower stones, stone table tops, coffee table panels, kitchen countertops

FAQ

Q: How about your company strength, technology and after-sales service?

A: Our company has over 30 years of experience in the stone machinery industry. We own a 36,000-square-meter factory with dozens of technical and after-sales staff, providing on-site and online technical support to global customers all year round.

Q: Can you provide on-site installation and training services for overseas customers?

A: Yes, we offer door-to-door installation and training services for overseas clients.

Q: How long is the production lead time of the machine?

A: The standard production lead time is 30 days, subject to specific configurations and production schedules.

Q: What is the warranty period of the equipment?

A: The machine comes with a 12-month warranty

Q: Is there a minimum order quantity for the machines?

A: All machines can be ordered with a minimum quantity of 1 unit.
