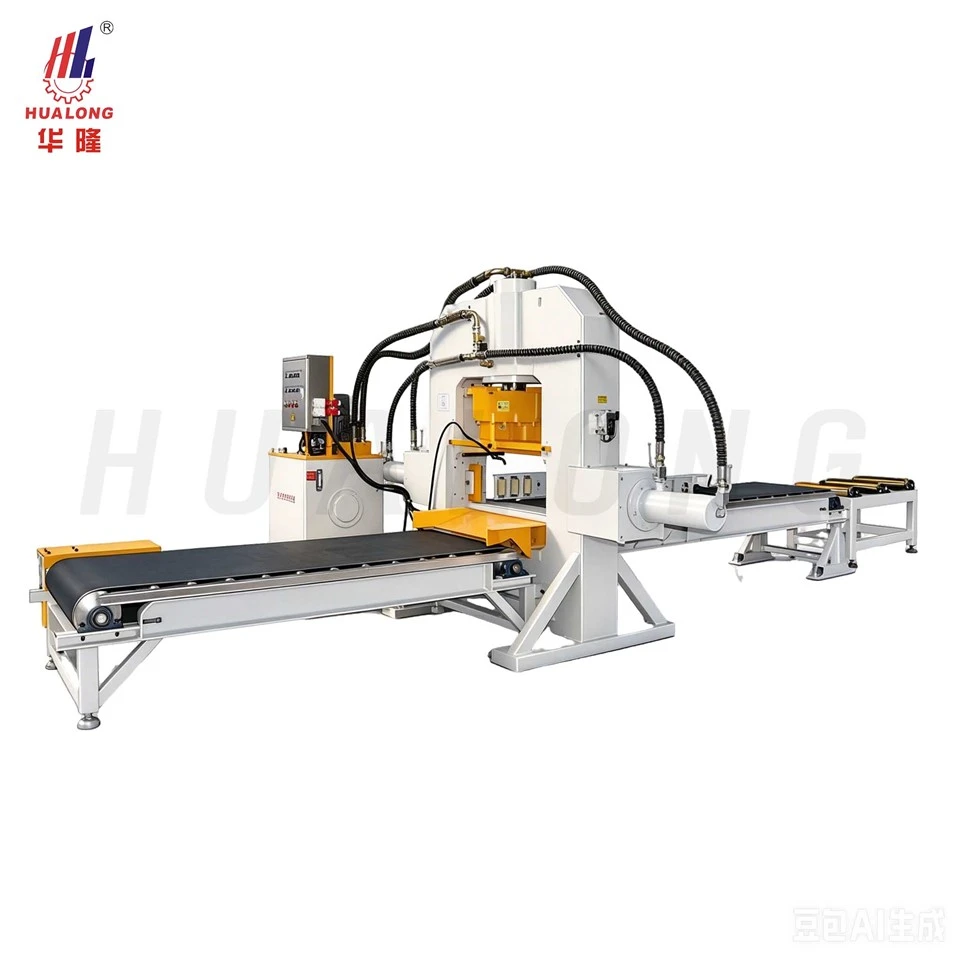

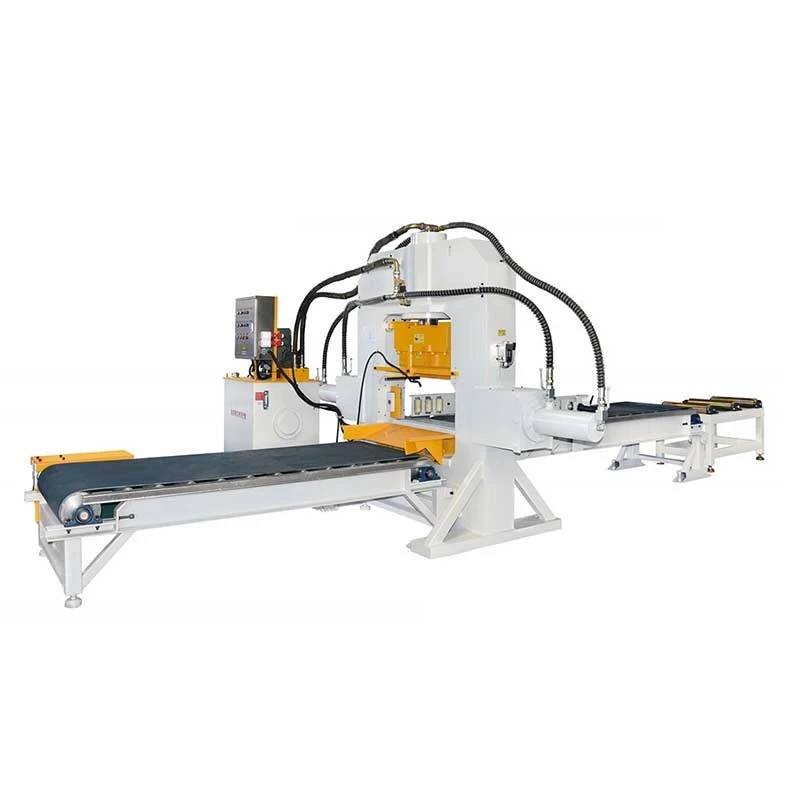

Hualong Machinery KSL-36c Stone Block Splitting Saw is an automatic four-blade integrated stone splitting equipment that forms natural-surface stone in one single operation. Equipped with front and rear conveyor belts, the machine enables continuous feeding, splitting and discharging processes. With a heavy-duty hydraulic splitting force of 150 tons, it delivers uniform and natural split surfaces, ideal for processing granite, basalt, paving stones, curb stones and landscape blocks.

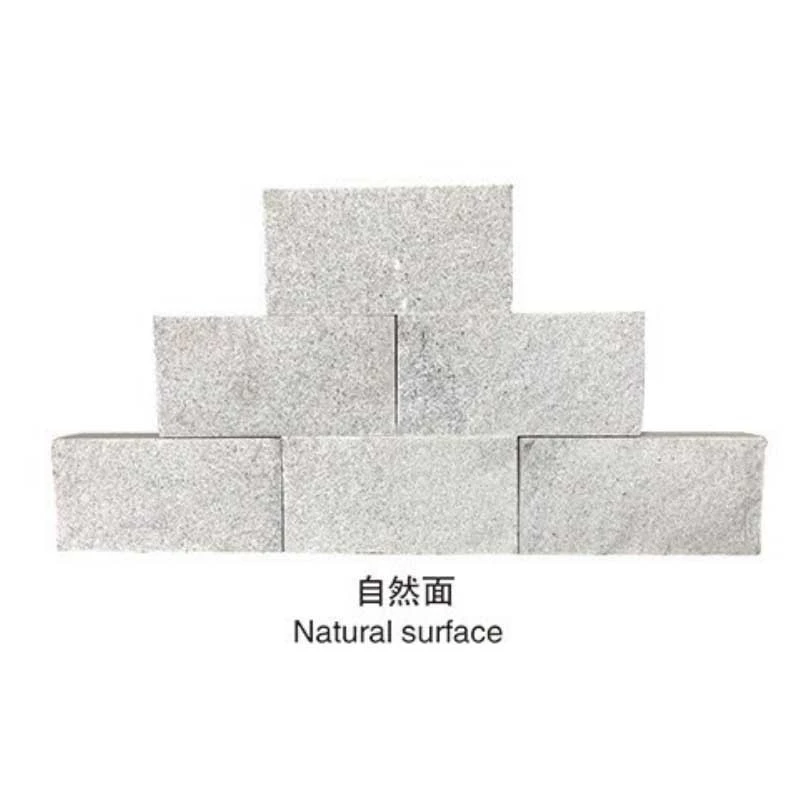

The KSL-36c is a professional four-blade automatic strip Stone Block Splitting Saw fitted with four precision splitting blades. One single pressing stroke can split one raw stone block into multiple standard finished products. The resulting original natural split surface requires no secondary grinding, greatly improving the appearance and market value of finished stone products.
Total machine length: 615 cm, main body width: 225 cm, feeding conveyor width: 420 cm, rear auxiliary conveyor extension: 120 cm, splitting working height range: 30–60 cm.
Technical Parameters
|
NAME |
Unit |
HLSY-36C |
|
L*W*H |
mm |
7350*4200*2250 |
|
weight |
T |
4.5 |
|
power |
KW |
11 |
|
voltage |
V |
380 |
|
frequency |
HZ |
50 |
|
flow rate |
L/M |
Oct-80 |
|
pressure |
T |
150 |
|
blade feeding speed |
CM/S |
3 |
|
max working size |
CM |
30*60 |
|
min working size |
CM |
10*20 |
|
output/hour |
㎡ |
50 |
|
hydraulic oil grade |
# |
46 |
|
oil tank capacity |
KG |
400 |
Equipment Features
Equipped with an extended front feeding conveyor and a rear discharge conveyor to realize continuous stone transportation.
Stable high-pressure hydraulic system delivers 150 tons of splitting force, capable of effortlessly cutting high-hardness stones including granite, bluestone and basalt. It produces complete split surfaces free of edge chipping and stone debris.
Four splitting blades work synchronously to produce multiple finished stones in a single pressing stroke, with an hourly output of up to 50㎡ for high processing efficiency.
Heavy-duty vibration-resistant frame enables stable long-duration continuous operation with low failure rates.
Flexible adjustable processing sizes: minimum 10×20CM, maximum 30×60CM, meeting customized production demands for various paving stones and wall veneer stones.
Independent control cabinet with intuitive buttons. Ordinary workers can master operation quickly after simple training, no professional technicians required.
Application Scenarios
Paving stones for courtyards and gardens
Natural-face wall cladding stones for building facades
Curb stones for road construction projects
Pavement stones for municipal engineering
FAQ
Q: Are you a stone machinery factory?
A: Yes, we are an integrated stone machinery manufacturer integrating R&D, production and sales. You are warmly welcome to visit our factory for inspection.
Q: Can the machine process high-hardness stones such as granite?
A: Absolutely. With powerful splitting force of 150 tons, it can split high-hardness stones including granite, basalt and bluestone into complete finished pieces.
Q: Can the voltage be customized for overseas customers?
A: Yes. The standard model is 380V 50Hz, and we can customize voltage & frequency according to requirements of different countries.
Q: How long is the production lead time for the machine?
A: Normally 30 to 45 days, depending on the specific model and configuration of the equipment.
Q: What is the warranty period of the machine?
A: The complete machine comes with a 12-month warranty, excluding wear parts and consumables.
Q: Which international trade terms do you support?
A: We support EXW (Ex Works), FOB, CIF, DAP (Delivered at Place) and DDP (Delivered Duty Paid). The final trade term shall be subject to the formal contract.
