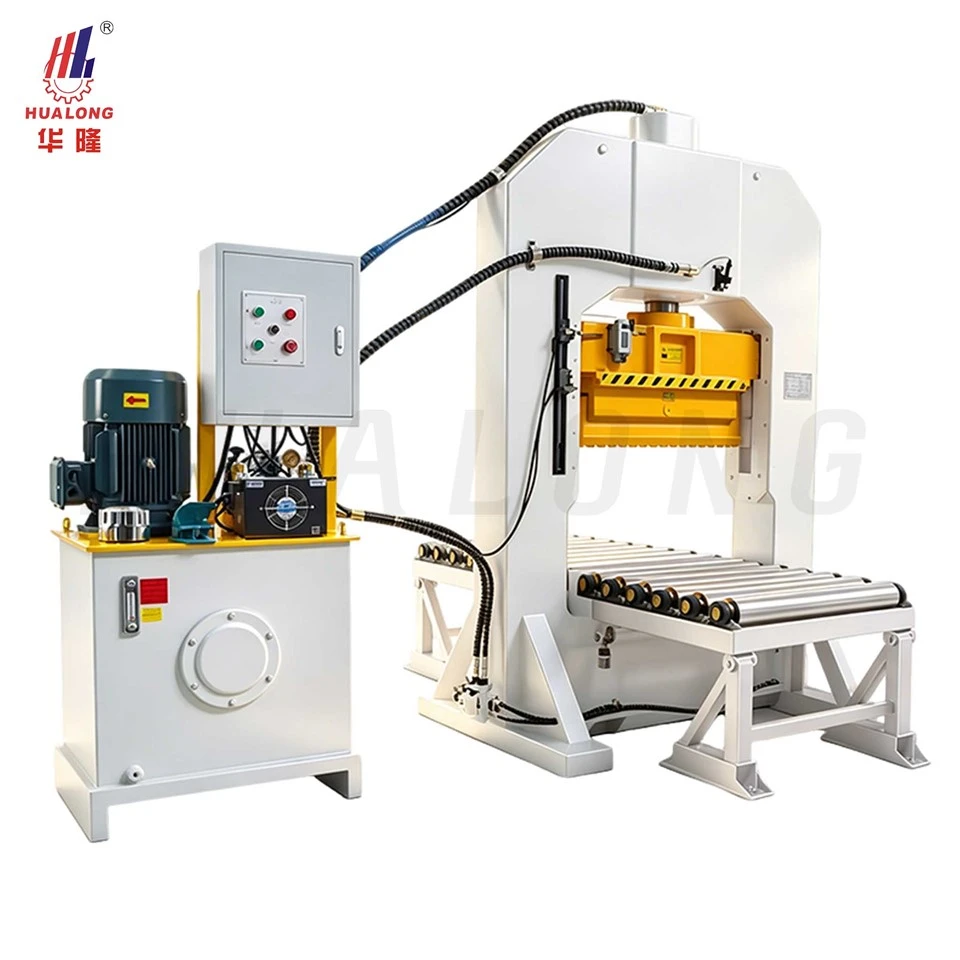

Hualong Machinery KSL-480 paving stone splitter is a stone processing equipment powered by a hydraulic system for stone splitting. Equipped with a 200-ton high-pressure hydraulic system, it supports two processing technologies: machine-cut surface splitting and natural surface splitting, capable of splitting all types of hard stones into two halves in one single pass. Fitted with an integrated roller feeding conveyor for automatic material feeding, the machine can be operated by a single worker. It addresses the low efficiency of manual stone splitting and greatly boosts the production efficiency of curb stones, landscape cultural stones and paving blocks. It is ideal for automated stone splitting operations in stone processing factories.
Technical Parameters
|
NAME |
KSL-480 Stone Splitting Machine |
|
Overall Dimension (L×W×H) |
300×250×240 cm |
|
Machine Weight |
3.5 Ton |
|
Main Motor Power |
11 KW |
|
Standard Voltage & Frequency |
380V, 50Hz |
|
Hydraulic Flow Rate |
60 L/M |
|
Max Splitting Pressure |
200 Tons |
|
Blade Feeding Speed |
7 CM/S |
|
Max Working Height |
40 CM |
|
Max Working Width |
80 CM |
|
Hourly Output |
25 ㎡ |
|
Recommended Hydraulic Oil |
46# Anti-wear Hydraulic Oil |
|
Oil Tank Capacity |
200 KG |

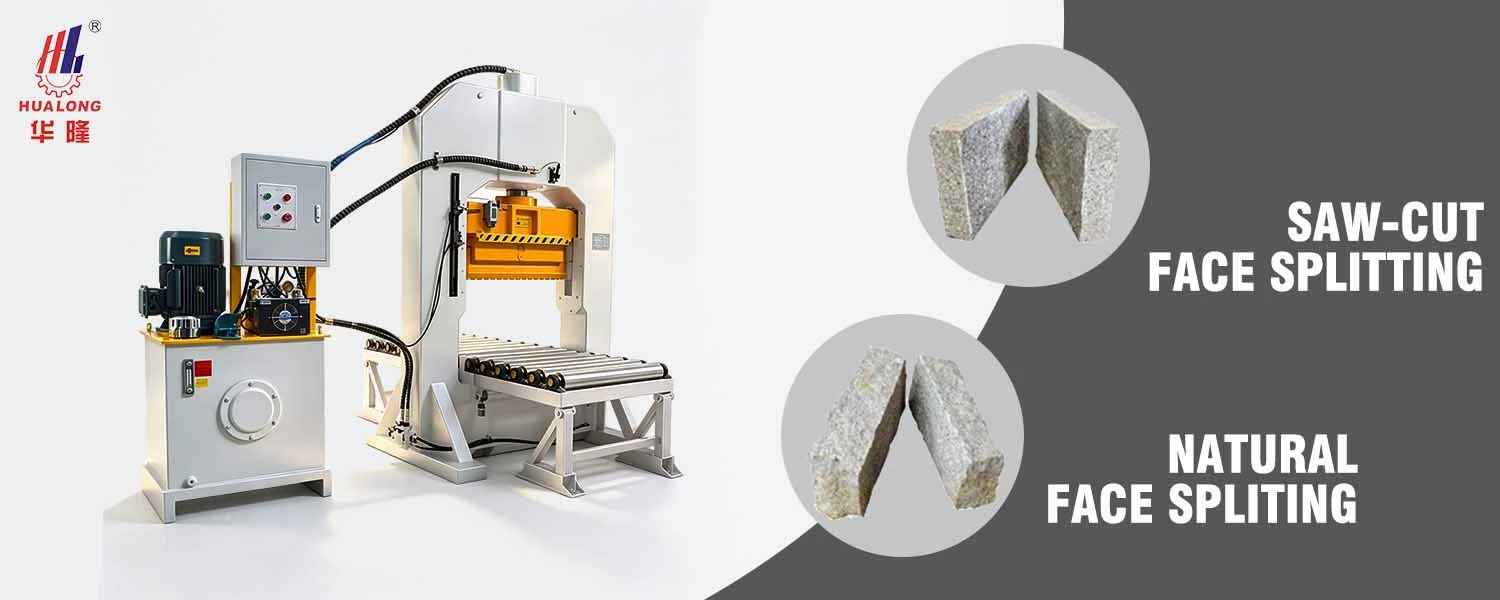

Hualong Machinery KSL-480 paving stone splitter features two core processing techniques
Machine-cut Surface Splitting
Secondary splitting of neatly sawn stone blocks delivers flat, smooth split surfaces with uniform dimensions. It is used for mass production of standard curb stones, floor tiles and step stones.
Natural Surface Splitting
Direct splitting of raw stone blocks retains natural uneven rough textures. It is suitable for exterior wall cultural stones, courtyard landscape stones and antique paving stones.
Machine Features
Equipped with a 11KW hydraulic power unit and a rated splitting force of 200 tons. It delivers neat splitting cracks without repeated pressing, even for thick and hard stone materials.
Standard extended feeding roller table with a feed speed of 7 cm/s, achieving an hourly output of up to 25 sq.m. The stone is pushed smoothly and effortlessly, enabling one-person full-process operation.
Split-type electrical control box with zone-arranged buttons for start/stop, emergency stop and pressure regulation, lowering operation difficulty. Built-in multiple overload protection mechanisms automatically release pressure under overpressure conditions, reducing equipment damage and operational safety hazards.
Max processing height: 40 cm; max processing width: 80 cm, compatible with various sizes of stone strips and blocks. It supports both machine-cut surface and natural surface splitting modes, covering multi-category stone production demands with a single machine.
Application Fields
Curb stones
natural-face exterior wall stones
garden landscape stones
municipal paving stones
FAQ
Q: What types of stones can the KSL-480 stone splitter process?
A: It is compatible with all hard natural stones, including granite, basalt, bluestone, marble and limestone. It is widely used to produce curb stones, paving stones, exterior wall cultural stones, garden landscape stones and step stones.
Q: Can this machine produce both smooth machine-cut surfaces and natural rough surfaces?
A: Yes, it is a dual-function machine. Simply replace the tool holder, and you can get neatly flat machine-cut engineering stones or decorative cultural stones with original uneven textures. A single machine meets the production demands of two mainstream stone types.
Q: What is the maximum stone size the machine can split?
A: Max processing height: 40 cm; Max processing width: 80 cm. It covers most standard sizes of stone strips and blocks for municipal engineering and landscape projects.
Q: What is the hourly output of this machine?
A: Standard stable output reaches 25 square meters per hour. Actual output varies slightly depending on stone thickness and specifications. Its processing efficiency is 3–5 times that of traditional manual stone splitting, greatly shortening order delivery cycles.
Q: How many workers are needed to operate the machine?
A: Only 1 operator is required. Equipped with a roller feeding table, it eliminates manual heavy stone handling. One worker can complete the whole workflow including feeding, splitting and finished product collection, significantly cutting labor costs.
Q: What is the feed speed of the machine?
A: Standard feed speed is 7 cm/s with stable and controllable operation, ensuring uniform split surfaces without edge chipping or damage.
Q: What is the maximum splitting force?
A: The maximum hydraulic splitting force is 200 tons. Thick and hard stones can be fully split in one press, avoiding defective products caused by repeated extrusion.
Q: What is the standard voltage of the machine? Can voltage be customized?
A: Standard configuration: 380V/50Hz. We can customize voltage and frequency to match local industrial power standards of different countries.
Q: Which international trade terms do you accept?
A: We support all common Incoterms including FOB, CIF, CFR and EXW. We can work out the optimal logistics solution to the destination port for customers.
Q: How long is the machine warranty period?
A: The whole machine comes with a 12-month warranty, excluding wearing parts and consumables.
