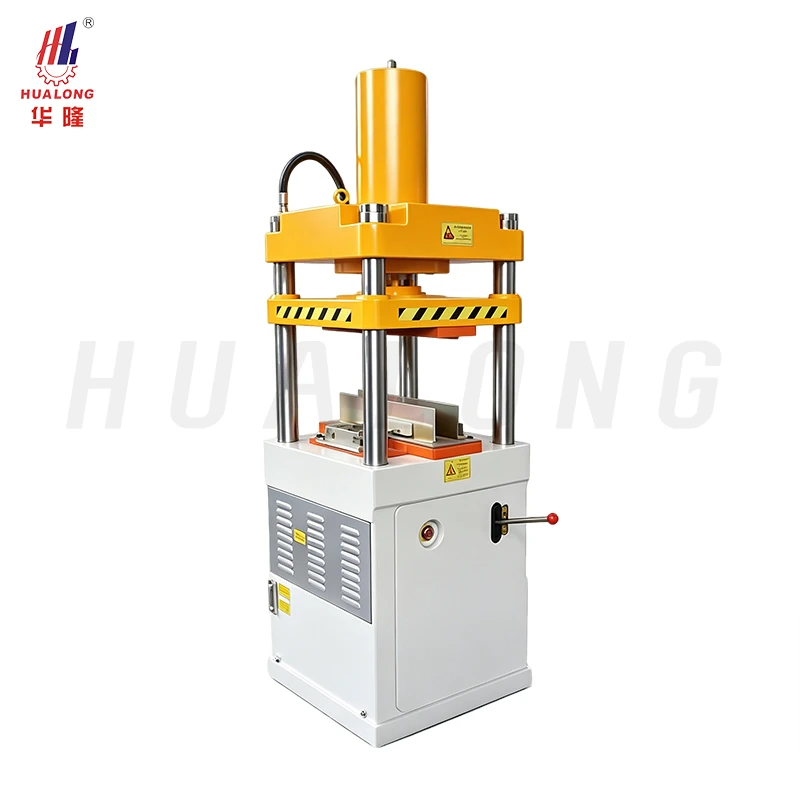

Hualong Machinery KSS-85 paving stone cutter is equipped with a 60-ton high-pressure hydraulic system and a four-guide-pillar structure. It delivers precise stone splitting and embossing, and is applicable for machining sawn faces, shaping special-shaped stones, and mushroom rock surface forming. A single unit integrates three processing functions. Its finished products are widely used for courtyard paving stones, exterior wall dry-hanging stones, landscape and garden ornamental stones, etc.
Technical Parameters
|
Model |
Unit |
KSS-85 Stone Splitting Machine |
|
Overall Dimension (L×W×H) |
cm |
62×62×200 |
|
Net Weight |
T |
0.95 |
|
Motor Power |
kw |
4 |
|
Working Voltage/Frequency |
380V/50Hz |
|
|
Hydraulic Flow Rate |
L |
17 |
|
Max Hydraulic Pressure |
t |
60 |
|
Blade Feeding Speed |
CM/S |
3 |
|
Max Working Height |
CM |
30 |
|
Max Processing Width |
CM |
60 |
|
Hourly Output |
㎡/H |
20 |
|
Recommended Hydraulic Oil Grade |
46# |
|
|
Oil Tank Capacity |
KG |
75 |
|
Applicable Molds |
Splitting mold / Flat stamping mold / Single knife mold |
|
|
Export Packing Size |
cm |
72×72×210 |
|
Gross Weight (Packed) |
T |
1.15 |
The machine features three processing functions
1,Saw-cut stone splitting

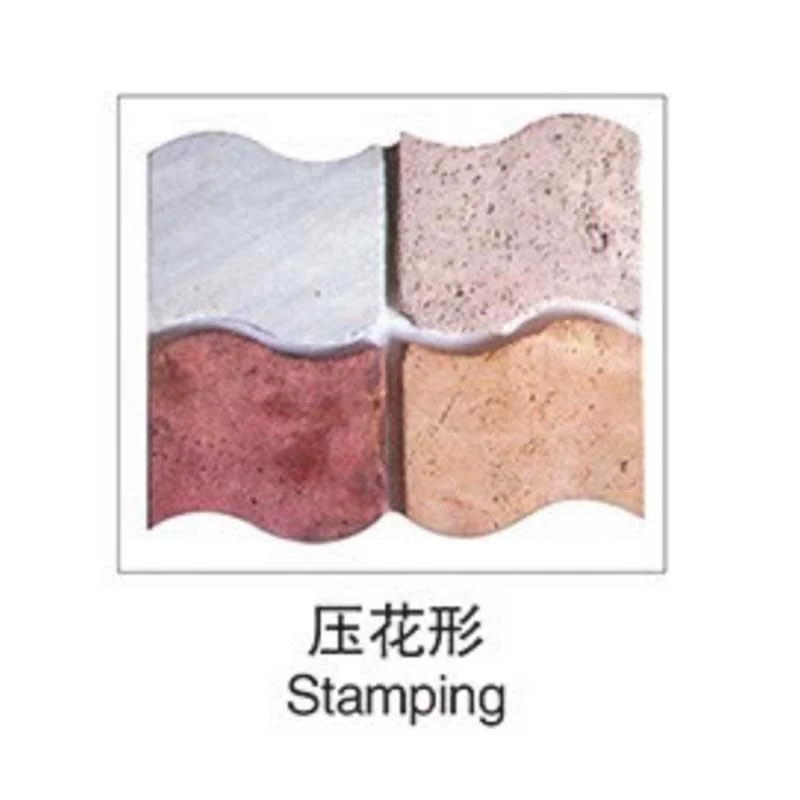

2,Stamping forming

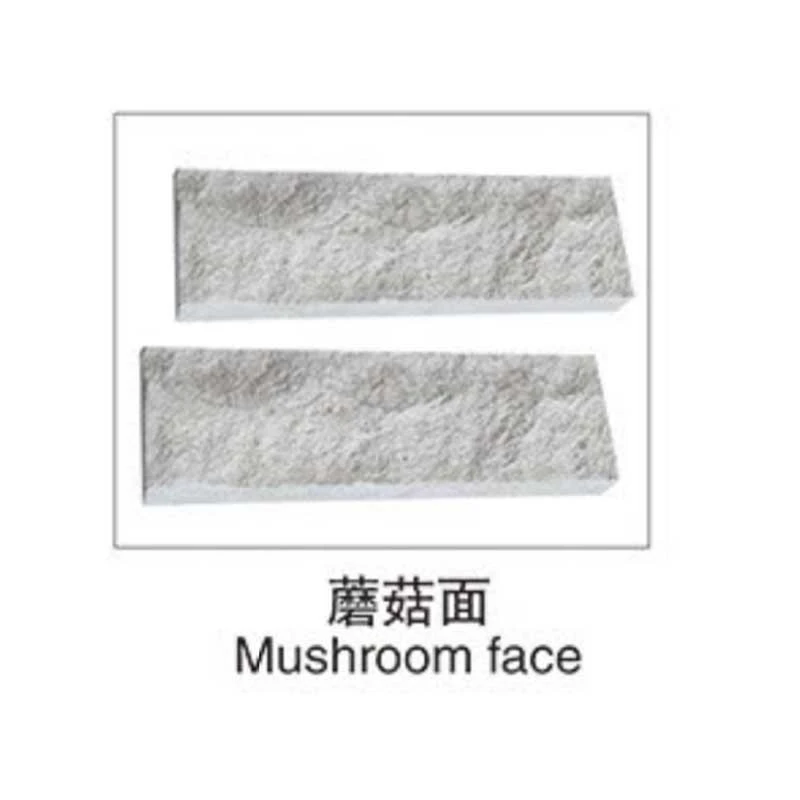

3,Mushroom surface processing
Hualong Machinery KSS-85 paving stone cutter features a maximum processing width of 600 mm and a maximum processing height of 300 mm, with a tool feed speed of 3 cm/s. It supports continuous production and delivers an output of up to 20 square meters per hour. Molds can be replaced according to processing requirements, including splitting molds, flat embossing molds and single-blade molds, enabling switching among three processing functions.
The machine only requires one operator; its operation is simple and easy to learn. It has low site requirements and can be put into production directly on flat cement ground.
FAQ
Q: What types of stones can this machine process?
A: It is suitable for most natural hard stones available on the market, including granite, marble, basalt, sandstone, bluestone, limestone, etc.
Q: Can different molds be replaced on the machine?
A: Yes. It supports quick replacement of splitting molds, flat embossing molds and single-blade molds. You may purchase additional matching molds according to your production demands.
Q: What is the approximate daily output of the equipment?
A: The output reaches 20 square meters per hour. Based on an 8-hour working day, the daily finished stone output is 160 square meters.
Q: How long is the equipment warranty?
A: The whole machine comes with a 12-month warranty, excluding wearing parts and consumables.
Q: Can we arrange technicians for on-site installation, commissioning and training for overseas customers?
A: Yes, we provide on-site installation, commissioning and training services.
Q: What trade terms are available?
A: We support common trade terms including FOB, CIF and EXW.
