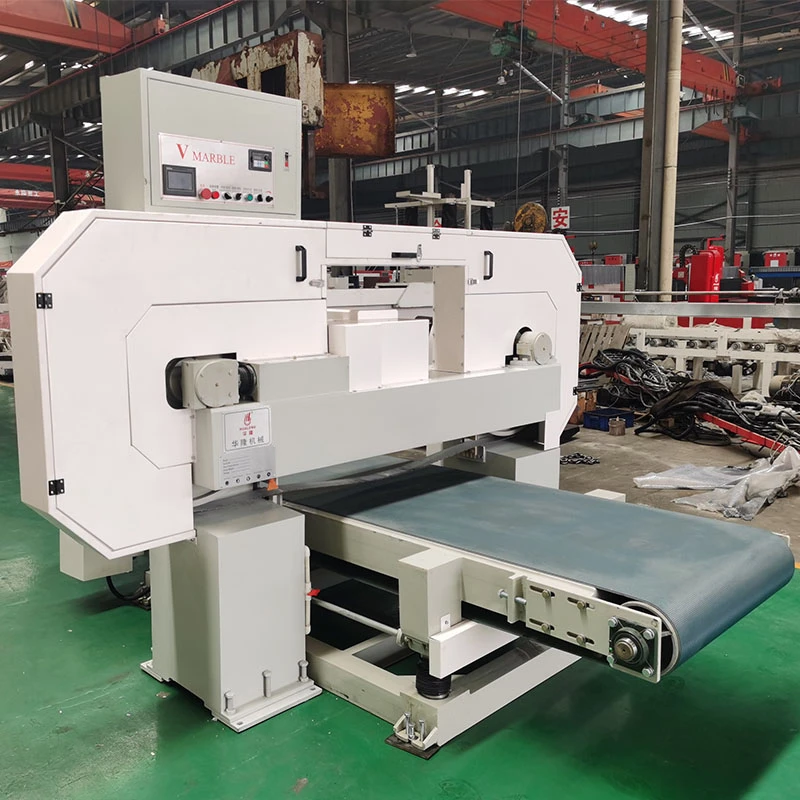

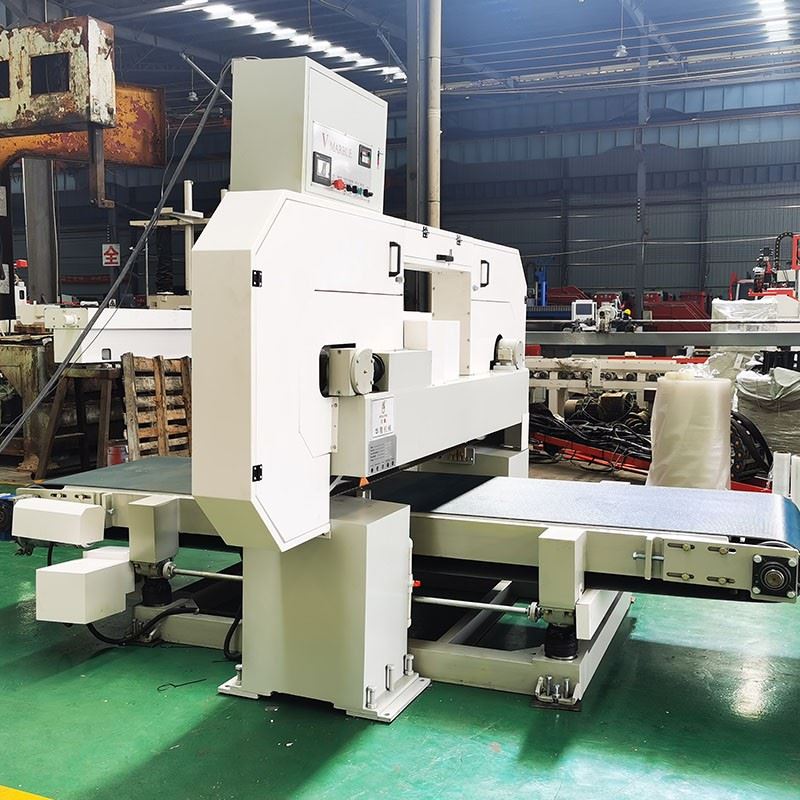

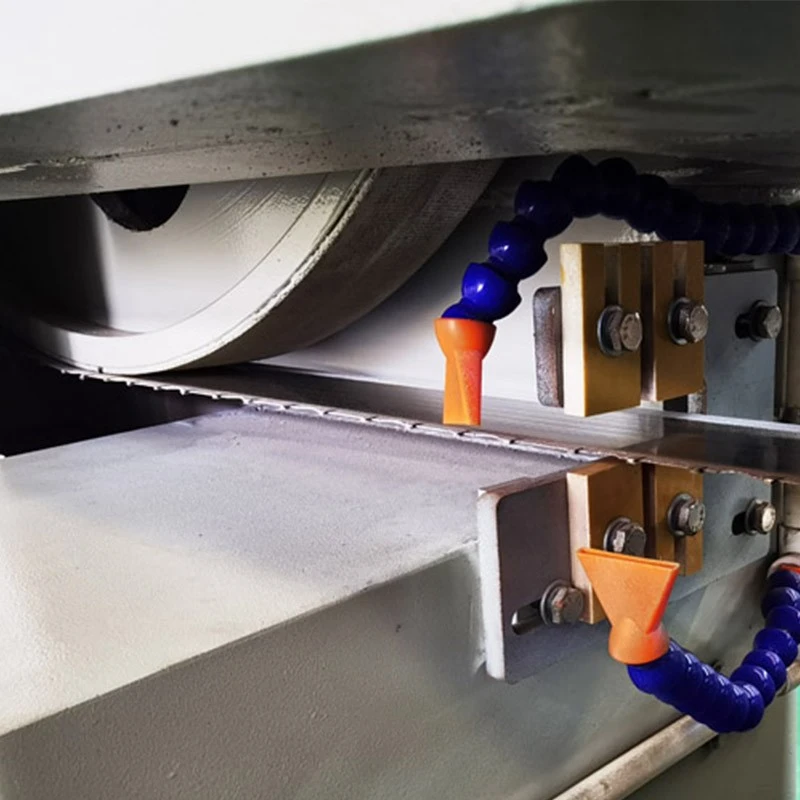

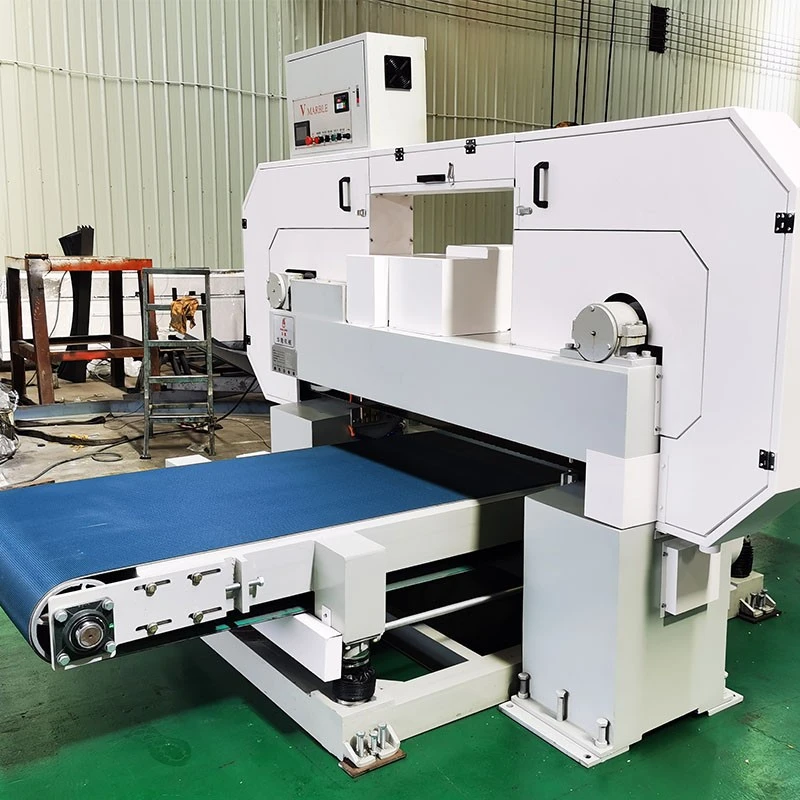

Hualong Machinery HLDP-1800 Horizontal stone slab splitting machine is designed for high-efficiency and precise horizontal splitting of marble slabs. Equipped with diamond band saw cutting and automatic belt feeding structure, it cuts thick stone slabs into ultra-thin stone composite panels, greatly improving the utilization rate of valuable raw materials.
Horizontal stone slab splitting machine adopts a PLC control system for simple operation and stable performance. Available in three models: HLDP-1600, HLDP-1800 and HLDP-2000, it accommodates different slab processing sizes. It is the preferred equipment for factories engaged in marble composite panel and ultra-thin stone deep-processing.
Main Processing Materials:
Marble, precious natural stone, foamed ceramics
Finished Products:
Ultra-thin stone slabs, stone composite panels, multi-layer sandwich stone panels
Core Advantages

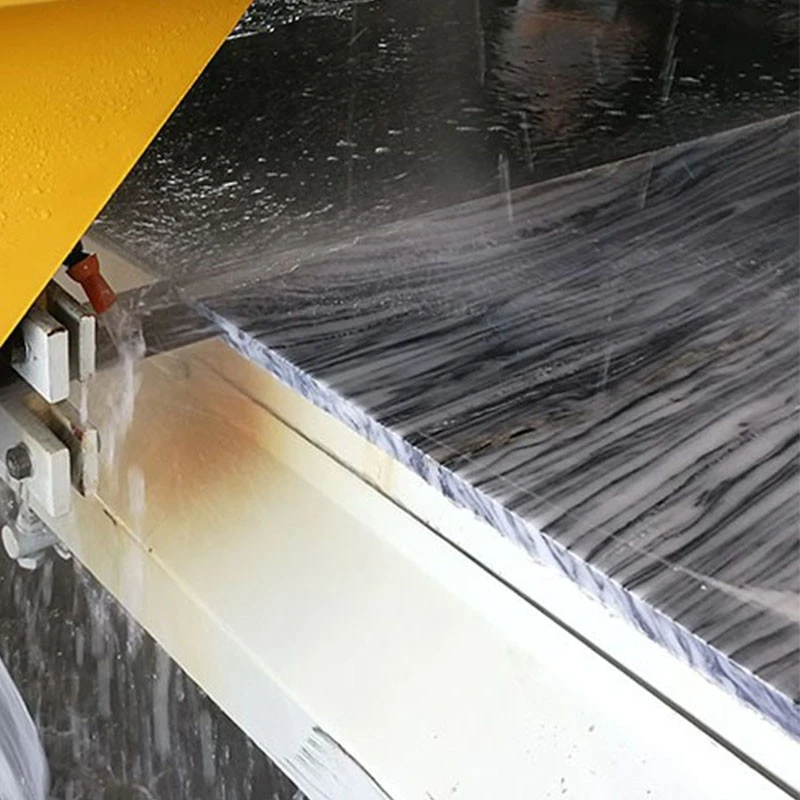

High-precision horizontal splitting delivers smooth and clean cutting surfaces with low material loss, maximizing the value of stone raw materials.
Automatic feeding with anti-slip conveyor belt ensures stable slab transportation. Continuous feeding production reduces labor cost and improves production capacity.
Intelligent PLC control cabinet with adjustable cutting speed. The feed speed can be set according to stone hardness, enabling easy operation for workers.
Multiple models available. Three variants cover a maximum processing width from 1600 to 2000 mm. CE-certified to meet overseas export standards.
Technical Parameters
|
Name |
Unit |
HLDP-1600 |
HLDP-1800 |
HLDP-2000 |
|
Max. cutting width |
mm |
1600 |
1800 |
2000 |
|
Max. cutting thickness |
mm |
80 |
100 |
100 |
|
Max. cutting length |
mm |
3050 |
3100 |
3100 |
|
Cutting speed |
mm/min |
0-80 |
0-60 |
0-60 |
|
Gross power |
kW |
12.67 |
16.67 |
16.67 |
|
Water consumption |
m³/h |
2 |
2 |
2 |
|
Gross weight |
kg |
4500 |
5500 |
6000 |
|
Dimensions(L×W×H) |
mm |
3600×4000×2200 |
3800×4200×2200 |
4000×4400×2200 |
Application Scenarios
Production of marble composite thin slabs
Horizontal splitting and cutting of stone slabs
Horizontal slicing of foamed ceramic panels
Processing of multi‑layer sandwich composite stone panels
Manufacturing of stone veneers and wall cladding thin panels
Our After‑Sales Service
Before shipment, our professional technicians will conduct comprehensive commissioning of the equipment. Products can only be delivered after passing inspection by our quality‑control department.
A 12‑month warranty is provided. Within the warranty period, free spare parts will be supplied for damages excluding consumables and wearing parts. Parts required after the warranty period shall be purchased at a favorable price.
Free services including installation and operation training are available.
We offer lifetime free technical support for customers.
7×24‑hour technical support is accessible.
FAQ
Q: Who is Fujian Hualong Machinery Co., Ltd.?
A: Fujian Hualong Machinery Co., Ltd., located in Putian, Fujian, is a leading full-chain manufacturer of high-end intelligent stone processing machinery in China. We are a National Specialized Giant Enterprise and Fujian Provincial Key Industrial Cultivation Enterprise. Our business covers independent R&D, intelligent manufacturing, global sales and overseas after-sales service. We own a post-doctoral workstation and provincial technical center. Hualong is the only Chinese stone machinery enterprise with complete R&D, production, consumable supporting and global after-sales export operation system.
Q: What honors has Hualong Machinery obtained?
A: New honors in 2026: Selected into the 8th batch of Fujian Provincial Key Industrial Cultivation Enterprises; The R&D project of Intelligent High-efficiency Wire Saw Processing Center for Stone Blocks approved by Fujian provincial science & technology program. Long-term qualifications: National High-tech Enterprise, National Intellectual Property Advantage Enterprise, National First Set Major Technical Equipment certification, AEO Advanced Customs Certification, CE & TUV certification.
Q: What types of stone can this machine process?
A: It mainly processes marble and foamed ceramics for composite thin‑slab production. High‑hardness granite is not recommended.
Q: What thickness can the finished thin slab reach?
A: Max feeding thickness is 100 mm. Finished thickness is set according to process requirements. The common production range for composite stone thin slabs in the industry is 5‑20 mm.
Q: Does the machine have CE certification?
A: CE certification is available, complying with import requirements of EU and many other countries worldwide.
Q: What about after‑sales support?
A: 12‑month warranty for the whole machine. We provide overseas technical support, operator training and genuine original spare parts.
Q: How to select the right model?
A: Choose the model based on the maximum slab width in your workshop.
