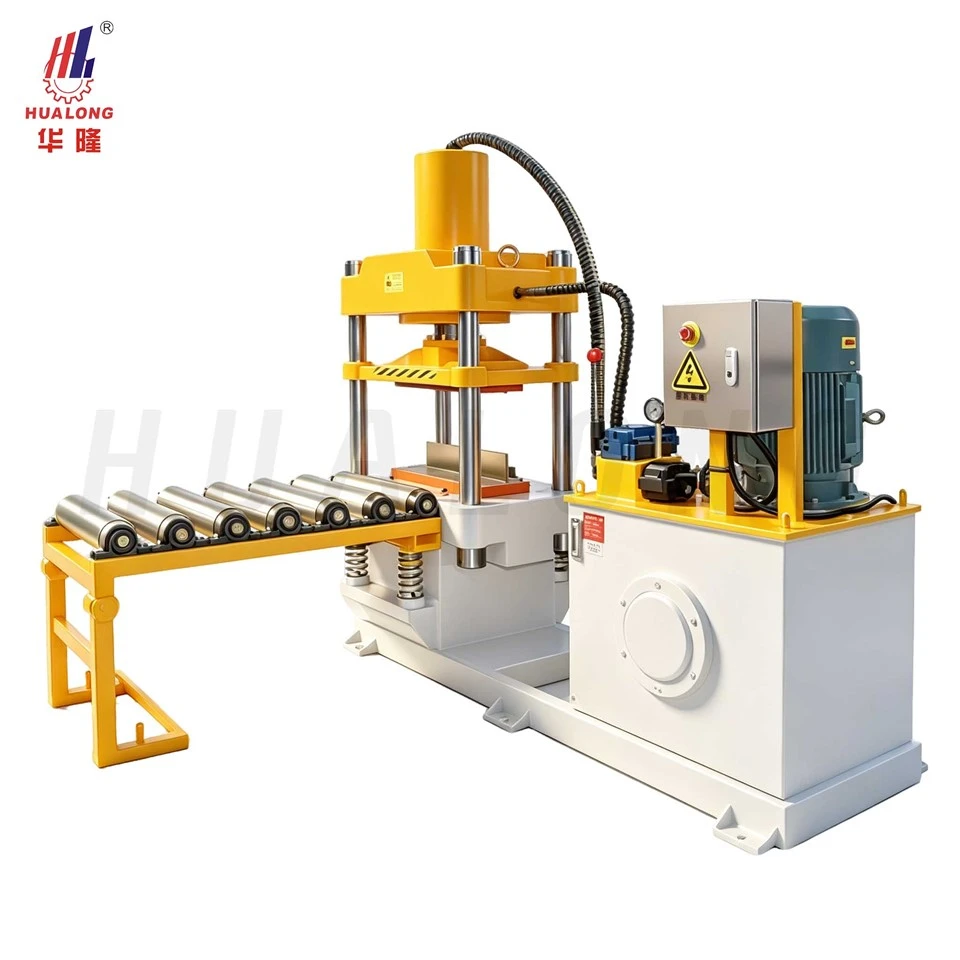

Hualong Machinery KSS-150 hydrasplit stone splitter is a processing equipment that adopts a hydraulic system for stone splitting and embossing, integrating two processing functions in one unit. Driven by its hydraulic system delivering a maximum pressure of 150 tons, the machine is capable of stone splitting and embossing. It can form various types of split stones and create textured patterns on decorative stones, stably producing natural-surface stones and embossed stones of diverse styles. It serves as dedicated machinery for manufacturing paving stones, natural-stone exterior wall panels, and landscape garden stones.
Technical Parameters
|
Model |
KSS-150 Stone Splitting Machine |
|

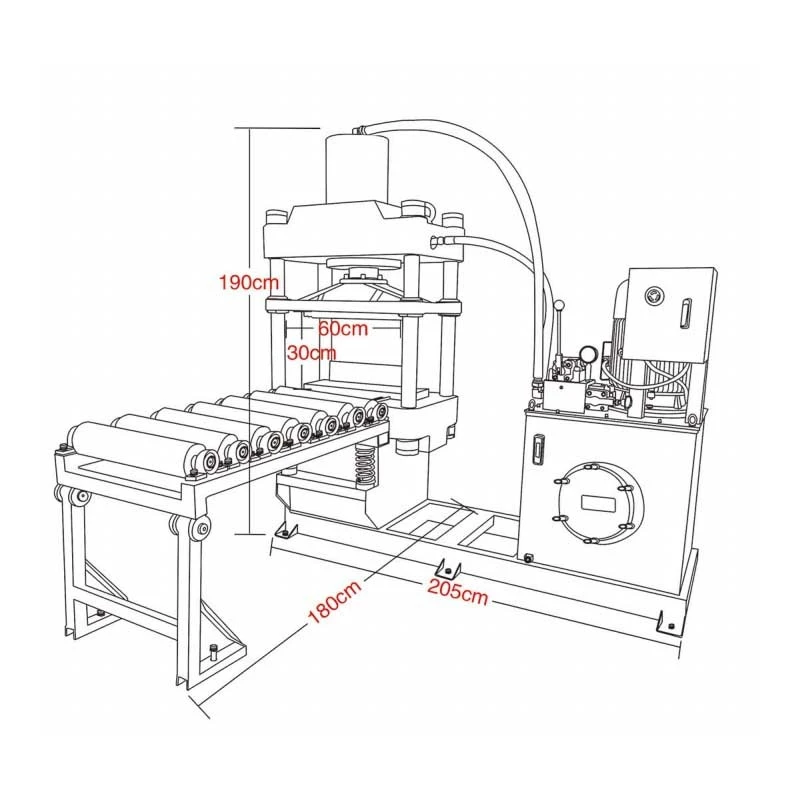

Overall Dimension (L×W×H) |
205×180×190 cm |
|
Packing Size |
215×80×200 cm |
|
Net Weight |
1.5 Ton |
|
Gross Weight |
1.6 Ton |
|
Power |
11 KW |
|
Voltage |
380V 3 Phase Customizable |
|
Frequency |
50HZ (60HZ Optional) |
|
Hydraulic Flow Rate |
32 L/min |
|
Max Hydraulic Pressure |
150 Ton |
|
Blade Feeding Speed |
0–5 CM/S Adjustable |
|
Max Working Height |
30 CM |
|
Max Working Width |
60 CM |
|
Max Single Stamping Size |
40×40 CM |
|
Hourly Output |
20 ㎡/h |
|
Recommended Hydraulic Oil Grade |
46# Anti-wear Hydraulic Oil |
|
Oil Tank Capacity |
150 KG |
|
Applicable Moulds |
Splitting Blade / Stamping Moulds |
|
Processing Function |
Saw-cut face splitting, decorative stone stamping |
Hualong Machinery KSS-150 hydrasplit stone splitter supports two processing technologies:

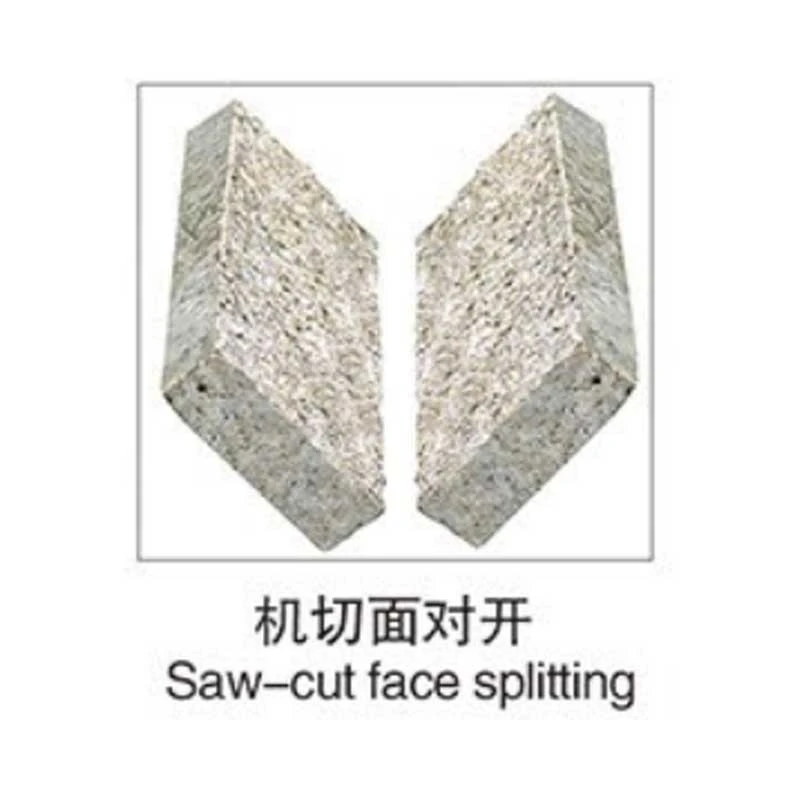

Saw-cut face stone splitting: It produces split surfaces with natural and uniform textures, ideal for exterior wall cladding slabs and courtyard paving stones.

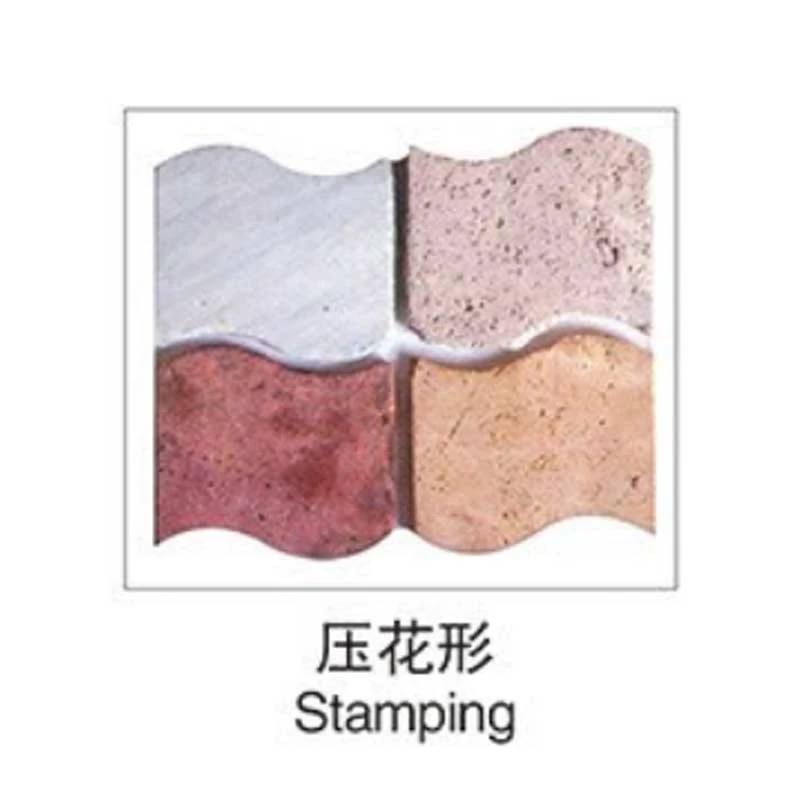

Stone embossing molding: Custom patterns of various styles are available to greatly improve the decorative added value of stones. Maximum embossing size per single block: 400×400mm
Equipment Features
1. Equipped with a large-tonnage hydraulic cylinder that delivers stable splitting and stamping pressure. It can evenly split thick slabs and high-hardness granite without offset cracking or broken waste products.
2. Extended roller conveyor with spring buffers ensures smooth and labor-free stone feeding, reducing manual handling and preventing collision damage to stone slabs.
3. Hourly output reaches 20 square meters, with processing efficiency far exceeding manual stone splitting, greatly cutting labor costs for stone factories.
4. Fitted with an 11KW industrial hydraulic motor and a 32L/min high-flow hydraulic system, paired with a large 150KG oil tank compatible with 46# anti-wear hydraulic oil. It maintains stable pressure and no overheating during long hours of continuous operation.
5. Max working height: 30cm; Max working width: 60cm, compatible with most standard sizes of cultural stone, wall cladding slabs and paving stones on the market.
6. Independent electric control cabinet with one-button operation; blade feeding speed adjustable from 0 to 5cm/s. New operators can master operation within 30 minutes, with extremely low long-term maintenance costs.
Application Scenarios
Cultural wall stones & antique veneer cladding stones
Natural split granite paving tiles
Garden & landscape stepping stones
Embossed decorative stones with concave-convex textures
Retro facing stones for building exterior walls
FAQ
Q:What processing crafts can the machine perform?
A:It supports two processing functions: natural surface stone splitting and stone embossing.
Q:Can the voltage and frequency of the machine be customized for different countries?
A:Yes, we customize motors of 220V/380V, 50HZ/60HZ to match local power supply standards worldwide.
Q:How long is the production lead time?
A:The normal production lead time is 30 days.
Q:What is the warranty period of the machine?
A:We provide a 12-month warranty, excluding wearing parts and consumables.
Q:Can you send technicians overseas for on-site installation, commissioning and training?
A:Yes, we offer on-site installation, commissioning and operation training services.
Q:What trade terms do you accept?
A:We support common trade terms including FOB, CIF and EXW.
