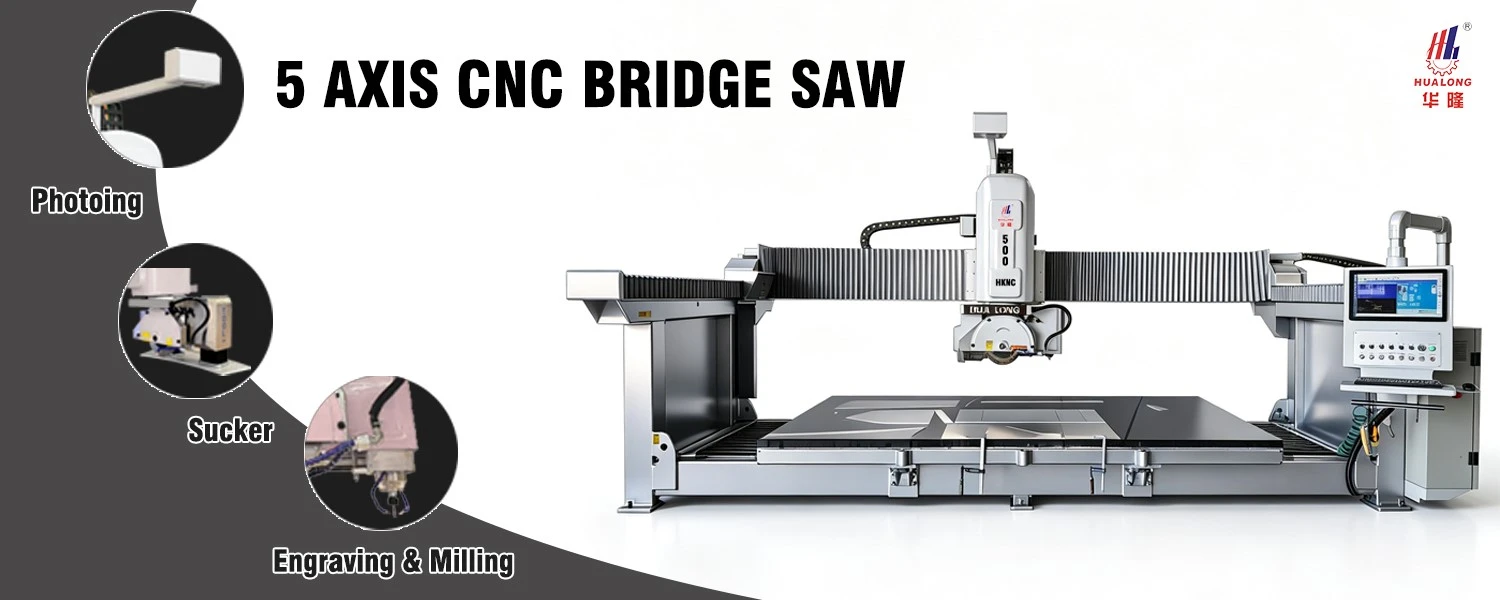

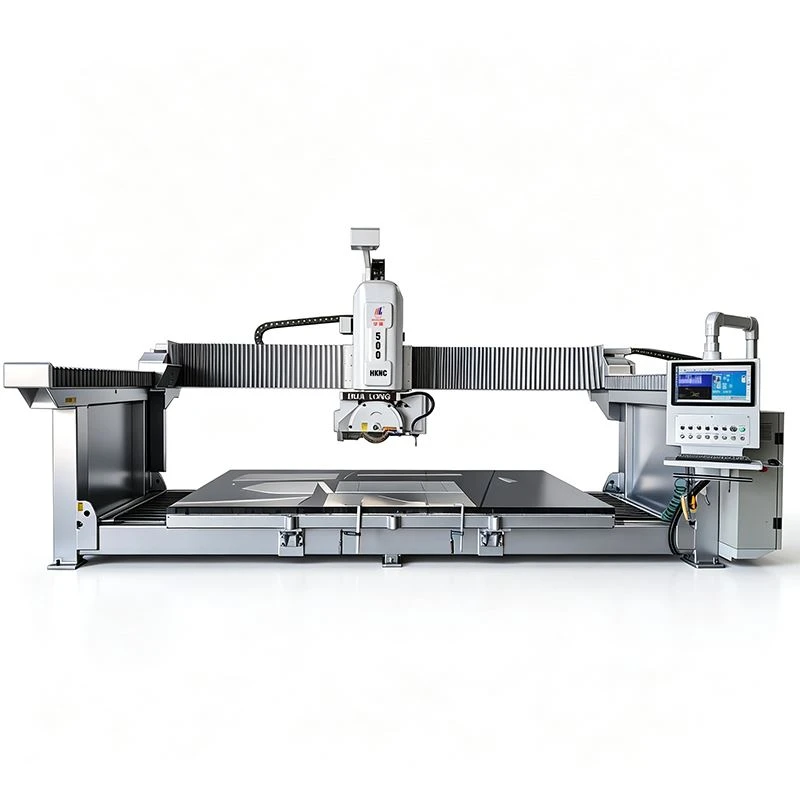

HKNC-500PLUS from Hualong Machinery is an intelligent 5+1 axis marble cnc bridge saw, a high-end stone bridge saw launched by Fujian Hualong Machinery Co., Ltd., China. Equipped with an Italian ESA control system and supporting 5-axis simultaneous interpolation, it enables versatile complex processing of stone slabs. For stone processing factories handling special-shaped stone and custom orders, this 5-axis CNC bridge saw serves as an ideal processing solution.
Hualong Machinery HKNC-500PLUS 5+1 Axis marble cnc bridge saw features an extended range of axis travel. Its C-axis supports full 360° rotation for bevel cutting in any direction, while the A-axis enables chamfering at any angle within 90°. Combined with the X, Y and Z axes, synchronized 5-axis movement allows cutting of various special-shaped edges, curved surfaces and three-dimensional profiles.
Why Choose Hualong Machinery 5-Axis CNC Bridge Saw?
1. Hualong Machinery boasts over 30 years of experience in stone machinery manufacturing, with mature technologies and a strong professional team.
2. We provide comprehensive after-sales service supported by a dedicated after-sales team serving customers worldwide.
3. The company has obtained multiple quality and safety certifications including ISO and CE.
4. As a well-known international brand in stone machinery, we are recognized as a National High-tech Enterprise and a National Specialized, Refined, Unique & Innovative "Little Giant" Enterprise.
Machine Features
1. Equipped with Italian ESA control system and Pegasus CAD/CAM software.
2. Integrated cast beam delivers smoother operation and more stable cutting, extending the service life of the machine.
3. Fitted with a 18.8 kW permanent magnet main motor for outstanding energy efficiency and power consumption reduction.
4. Comes with an extra-large worktable sized 3500\*2100 mm.
Machine Functions & Configurations
1. Camera Scanning System: Captures slab images to layout and optimize cutting paths.
2. Vacuum Suction Function: Transports cut slabs to designated positions.
3. Milling Spindle: Supports milling, hole drilling and engraving operations.
4. Tilting Worktable: Tilts up to 85° for convenient slab loading.
5. 360° Rotatable Cutting Head: Enables straight cutting, bevel cutting, arc cutting and more in any direction.
6. Saw Blade Adjustable Chamfering: Performs chamfer cutting at any angle from 0° to 90°.
7. Vein Matching Cutting: Intelligent layout realizes vein matching cutting to maintain continuous stone grain for superior finished appearance.
8. Slab Thickness Gauge: Automatically measures slab thickness.
9. Tool Setting Probe: Automatically detects specifications of saw blades and milling cutters.
10. Safety Guard Door: Stainless steel door prevents cooling water splashing and ensures operational safety.
11. Rubber-Coated Worktable
Note: Some of the above functions and configurations are optional. Please contact us for detailed information.
Technical Parameters
|
Model NO |
HKNC-500 PLUS |
|
Diameter of saw blade |
400-500mm |
|
Dimension of working platform |
3500×2100mm |
|
Max. cutting length |
3500mm |
|
Max. cutting thickness |
120mm |
|
Max. lifting stroke |
300mm |
|
Power of main motor |
18.8kw |
|
Power of electro-spinele |
5.5kw |
|
Power of cutter frame reciproctating motor |
2kw |
|
Power of crossbeam shifting motor |
1.1kw |
|
Power of hydraulic station motor |
2.2kw |
|
Power of lifting motor |
0.85kw |
|
Water consumption |
2m³/h |
|
Dimensions (L x W x H) |
5900×3380×3000mm |
|
Gross weight |
5800kg |
FAQ
Q: Are you an original manufacturer or a trading company? Can we visit your factory?
A: Yes, we are a stone machinery manufacturer integrating R&D, production and sales. You are welcome to visit our factory for inspection.
Q: What authoritative certifications do you have? Are CE and ISO9001 fully certified?
A: Hualong Machinery is a National High-tech Enterprise and a "Specialized, Refined, Unique & Innovative" Little Giant Enterprise, with complete CE and ISO9001 certifications.
Q: Can you provide on-site factory videos and workshop production line footage?
A: Yes, you can learn about our production workshop and warehousing capacity through videos.
Q: Do you support OEM/ODM customized equipment and private label services?
A: Yes, we support customization.
Q: What stone machinery equipment do you mainly produce?
A: Multi-blade block cutters, CNC bridge saws, engraving machines, automatic edge grinding machines, automatic polishing machines, water jet cutting machines, etc.
Q: What control system does the equipment use?
A: It uses the Italian ESA control system.
Q: What is the production lead time?
A: The production lead time is usually 30–45 days, subject to the specific machine model and configuration.
Q: How long is the equipment warranty?
A: The whole machine comes with a 12-month warranty, excluding wearing parts and consumables.
Q: Can you arrange technicians for on-site installation, commissioning and training for overseas customers?
A: Yes, we provide on-site installation, commissioning and training services.
Q: What is the price of the CNC bridge saw?
A: The equipment price is based on different models and configurations, and we will prepare a corresponding quotation accordingly.
Q: What trade terms do you support?
A: We support common trade terms including FOB, CIF and EXW.
