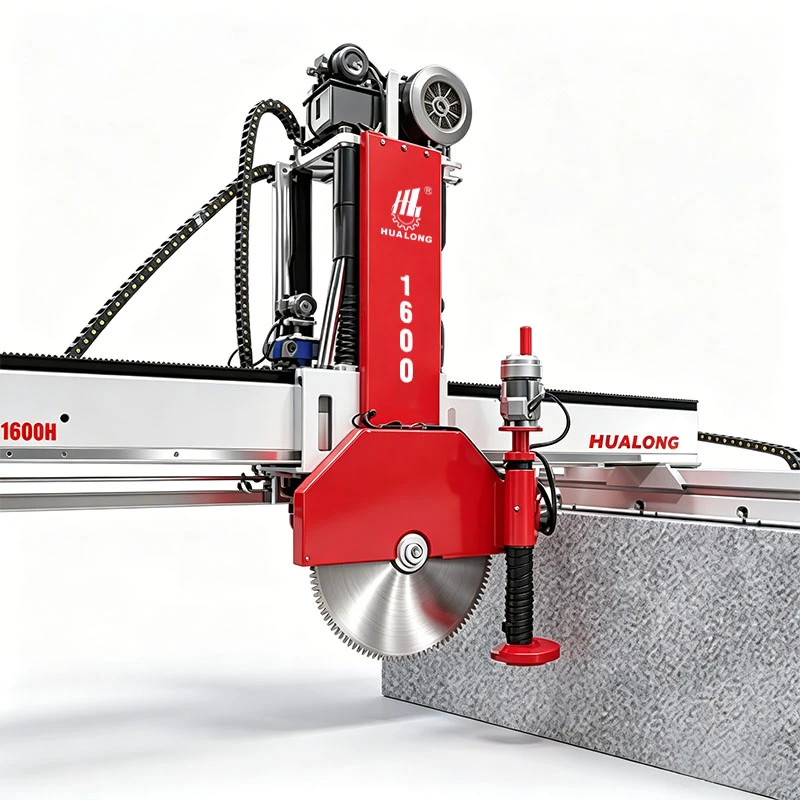

Hualong HLQY-1600H Granite Block Cutting Machine is specially designed for slab cutting of granite blocks. It features an integrated structure combining a vertical main saw blade and auxiliary horizontal splitting cutter. The main saw blade performs vertical slicing of raw stone blocks, while the horizontal saw blade can transversely cut and separate thin slabs right after vertical cutting, eliminating secondary processing procedures and drastically boosting the cutting efficiency of stone blocks. It serves as the core primary cutting equipment for medium and large stone processing plants and slab manufacturing enterprises.Hualong HLQY-1600H Granite Block Cutting Machine is specially designed for slab cutting of granite blocks. It features an integrated structure combining a vertical main saw blade and auxiliary horizontal splitting cutter. The main saw blade performs vertical slicing of raw stone blocks, while the horizontal saw blade can transversely cut and separate thin slabs right after vertical cutting, eliminating secondary processing procedures and drastically boosting the cutting efficiency of stone blocks. It serves as the core primary cutting equipment for medium and large stone processing plants and slab manufacturing enterprises.
Core Functions of HLQY-1600H Dual-Blade Granite Block Cutting Machine
The main vertical large saw blade has a diameter of Φ1600 and is driven by a 75KW high-power spindle motor. Boasting strong load capacity, it can directly cut large blocks up to 1300mm in height. It delivers fast cutting speed for thick slabs and massive stone blocks, with a rigid cutter head that guarantees smooth cutting surfaces.
Equipped with an auxiliary horizontal splitting cutter of Φ400 diameter, driven by an independent 15KW horizontal motor. It performs transverse cutting from the bottom of slabs pre-sliced by the main saw blade to separate finished slabs in one step.
Built with a high-rigidity frame and precision rack linear travel transmission for stable, vibration-free operation. Fitted with a 2.2KW travel motor and a long 3200mm stroke, it accommodates extra-large stone blocks and maintains structural stability without deformation during long-term continuous heavy-load processing.
The 75KW high-power spindle motor delivers ample cutting force to handle hard stone effortlessly. It cuts high-hardness materials such as granite smoothly without stalling, reducing saw blade wear and enabling uninterrupted production.
Technical Parameters
|
Name |
Unit |
HLQY-1600H |
|
Max. vertical blade diameter |
mm |
Φ1600 |
|
Max. horizontal blade diameter |
mm |
Φ400 |
|
Max. cutting length |
mm |
3200 |
|
Max. cutting width |
mm |
2000 |
|
Max. cutting height |
mm |
1300 |
|
Max. lifting stroke |
mm |
1350 |
|
Power of spindle motor |
kw |
75 |
|
Power of horizontal blade motor |
kw |
15 |
|
Power of stroke motor |
kw |
2.2 |
|
Power of vertical motor |
kw |
1.1 |
|
Gross power |
kw |
93.3 |
|
Gross weight |
kg |
14000 |
|
Dimensiona(L x W x H) |
mm |
7600x4500x3800 |

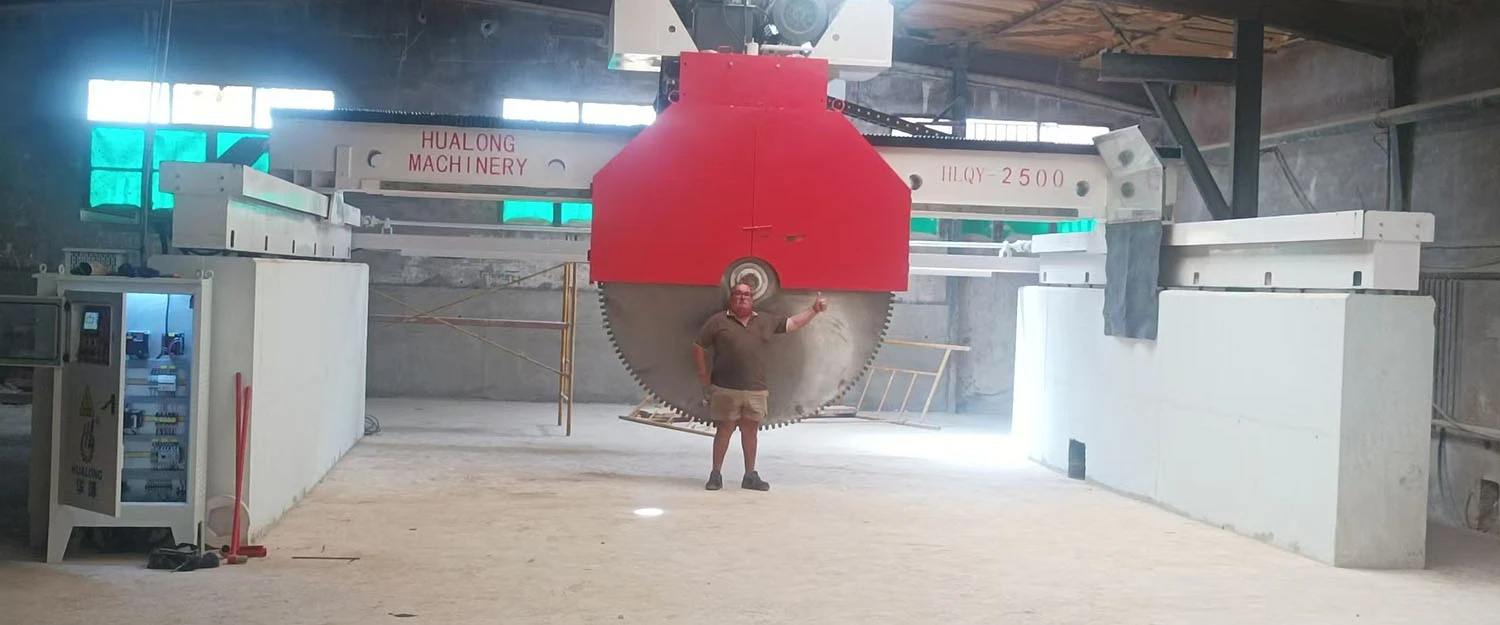

Client Cases
FAQ
Q: Are you a direct manufacturer or trading company? Can we visit your factory?
A: We are a professional stone machinery manufacturer integrating R&D, production and sales. You are warmly welcome to visit our factory for inspection.
Q: What authoritative certifications do you hold? Do you have complete CE and ISO9001 certificates?
A: Hualong Machinery is a National High-tech Enterprise and a National-level Specialized, Sophisticated, Distinctive and Innovative "Little Giant" Enterprise, with full sets of CE and ISO9001 certifications.
Q: Can you provide on-site factory videos and workshop production line footage?
A: Yes, we can share videos showing our production workshops and warehouse strength for your reference.
Q: Do you support customized equipment?
A: Yes, custom solutions are available.
Q: What stone machinery products do you mainly supply?
A: Multi-blade block saws, 5-axis CNC bridge saws, 4-axis bridge saws, stone carving machines, automatic edge polishing machines, automatic slab polishing machines, waterjet cutting machines, etc.
Q: How long is the equipment production lead time?
A: Normally 30–45 days, subject to machine model and configuration.
Q: How long is the equipment warranty period?
A: The whole machine enjoys a 12-month warranty, excluding wearing parts and consumables.
Q: Can you arrange technicians to overseas sites for installation, commissioning and training for foreign customers?
A: Yes, we provide on-site installation, commissioning and training services overseas.
Q: What trade terms do you accept?
A: We offer common international trade terms including FOB, CIF and EXW.
