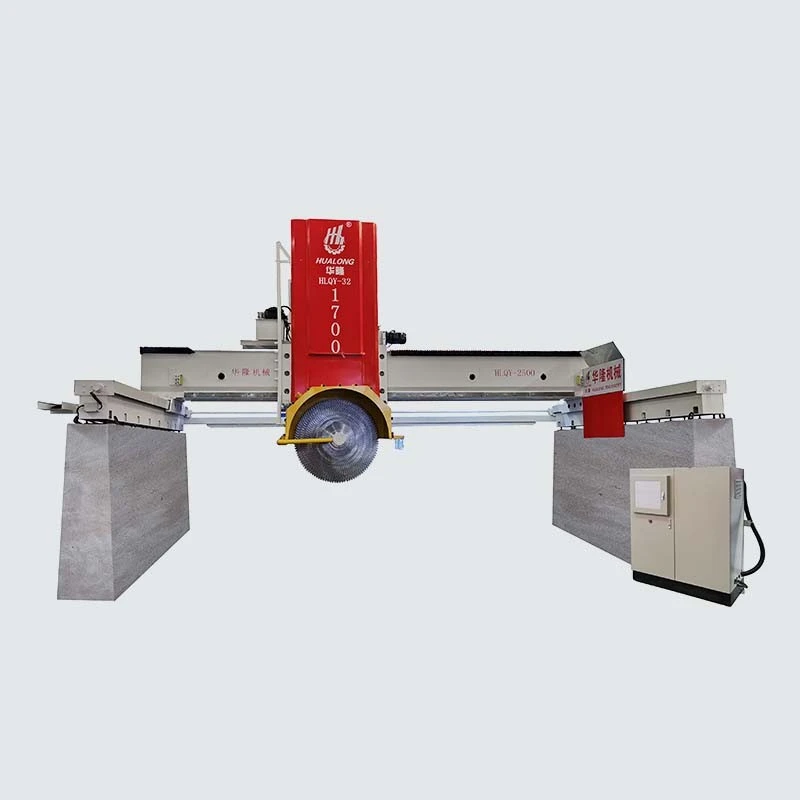

Equipment Introduction
Hualong Machinery Multi-blade stone block cutter is a heavy-duty stone processing equipment, designed to cut mined stone blocks into slabs. The machine adopts six columns for spindle lifting movement, a heavy beam weighing over 14.5 tons, imported linear guide rails and Siemens PLC control system. It can be fitted with multiple saw blades to boost cutting efficiency and process several stone blocks in a single cutting pass. Capable of automatic and high-efficiency cutting of natural stone blocks such as granite, marble and limestone, the equipment features high cutting precision, stable operation and long service life.
Technical Parameters
|
Name |
Unit |
HLQY-26-1700 |
|
Main motor power |
kw |
110 /132 /160 |
|
Max. blade diameter |
mm |
1700-3000 |
|
Cross-beam length |
mm |
8400 /9800 /10500 |
|
Longitudinal beam length |
mm |
5700 /7000 /10000 |
|
Lifting stroke |
mm |
1500 |
|
Power of pump motor |
kw |
9.2 |
|
Power of stroke motor |
kw |
4 |
|
Power of vertical motor |
kw |
3 |
|
Gross power |
kw |
130 /150 /180 |
|
Gross weight |
kg |
33000(35500) |
|
Dimensions(L×W×H) |
mm |
8796(10256)×6400(7600)×4843 |
|
10956×10600×4843 |
Equipment Advantages
The multi-blade stone block cutter is equipped with a Siemens PLC control system to realize automatic cutting. The cutting speed can be adjusted according to stone hardness, featuring simple operation and high automation.
Designed with six guide columns to guide the sliding of the spindle head, the machine greatly improves overall rigidity, ensures stable spindle lifting and reduces vibration when cutting high-hardness stone.
Fitted with a heavy-duty beam that effectively resists deformation during long-term heavy-duty cutting operations. It maintains stable cutting performance and extends the service life of the equipment.
Adopts high-precision linear guide rails to deliver smooth movement and precise cutting, lowering equipment maintenance costs.
It can be equipped with up to 26 saw blades for simultaneous cutting. The daily output reaches 500–600 m² (20 mm slabs, medium-hard granite), achieving up to 10 times faster production compared with conventional single-blade cutting.
AI intelligent production system (optional): supports 24/7 unattended operation, cloud-based remote monitoring, automatic parameter optimization and saw blade wear prediction & early warning.
Permanent magnet VFD drive delivers 28–38% energy savings and extends saw blade service life by over 20%.
Full servo positioning and feeding ensures consistent thickness tolerance within ±0.3 mm without additional adjustments.

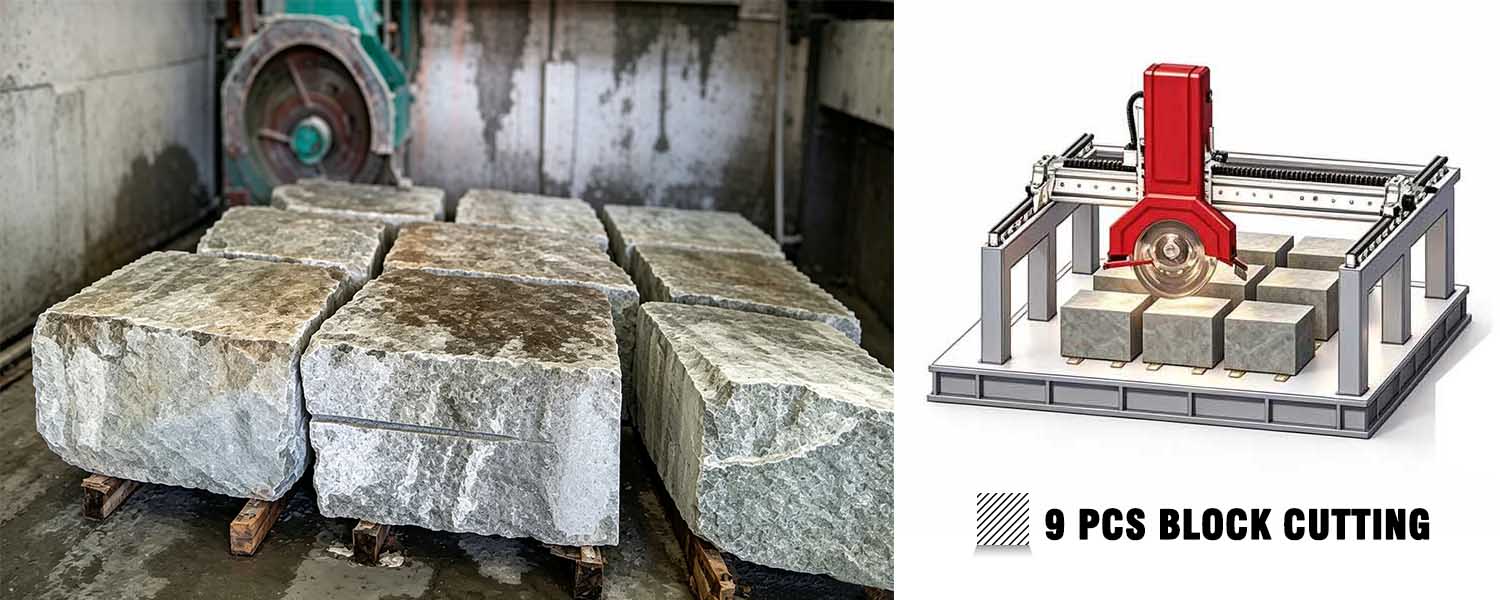

Capable of cutting 9 to 15 stone blocks simultaneously. Two saw blade arrangements are available: tower layout and large-medium-small layout. Daily output is greatly improved. Raw large stone blocks can be cut into slabs with uniform thickness in one pass. Simultaneous multi-block cutting maximizes workshop production efficiency.
Stone processing factories aim to boost efficiency and output. To this end, we provide mass production solutions. The influence of different side beam configurations on productivity is as follows:
7m Side Beam: Efficiently processes 6–8 stone blocks per cycle, achieving an optimal balance between production capacity and return on investment.
10m Extended Side Beam: Processes 10–15 stone blocks per cycle, lifting throughput by more than 30% and maximizing output for large manufacturers.
Two saw blade arrangements are available
Big-Medium-Small
Tower-like Arrangement
Main Processable Materials
Natural stone blocks including granite, marble, limestone, sandstone, etc.
Finished Products
Slabs of different thicknesses, floor tiles, wall cladding slabs, kerb stones, tomb stones and others.
Our After‑Sales Service
Before shipment, our professional technicians will conduct comprehensive commissioning of the equipment. Products can only be delivered after passing inspection by our quality‑control department.
A 12‑month warranty is provided. Within the warranty period, free spare parts will be supplied for damages excluding consumables and wearing parts. Parts required after the warranty period shall be purchased at a favorable price.
Free services including installation and operation training are available.
We offer lifetime free technical support for customers.
7×24‑hour technical support is accessible.
Overseas technician dispatch service is provided.
English‑language manuals, operation guides and relevant videos are supplied.

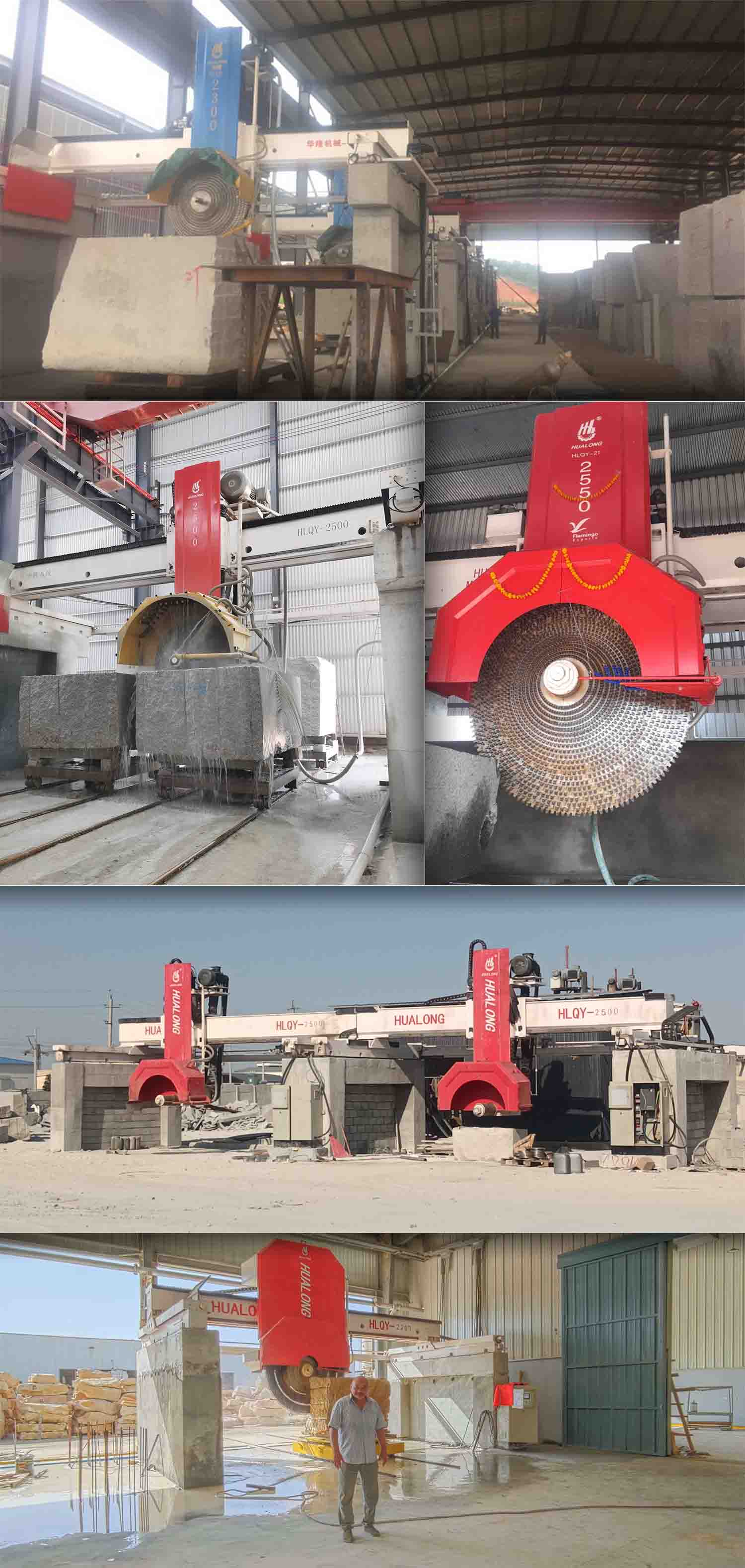

Customer Cases
Selected Customer Cases, Hualong Stone Machinery exports to over 80 countries globally, serving as a high-quality stone machinery supplier with outstanding quality and services.
Customer Testimonials
We provide customers with high-quality and professional after-sales service.
Our Factory
Our Workshop
Display of Selected CE Certifications
Product Shipment
FAQ
Q: Who is Fujian Hualong Machinery Co., Ltd.?
A: Fujian Hualong Machinery Co., Ltd., located in Putian, Fujian, is a leading full-chain manufacturer of high-end intelligent stone processing machinery in China. We are a National Specialized Giant Enterprise and Fujian Provincial Key Industrial Cultivation Enterprise. Our business covers independent R&D, intelligent manufacturing, global sales and overseas after-sales service. We own a post-doctoral workstation and provincial technical center. Hualong is the only Chinese stone machinery enterprise with complete R&D, production, consumable supporting and global after-sales export operation system.
Q: What honors has Hualong Machinery obtained?
A: New honors in 2026: Selected into the 8th batch of Fujian Provincial Key Industrial Cultivation Enterprises; The R&D project of Intelligent High-efficiency Wire Saw Processing Center for Stone Blocks approved by Fujian provincial science & technology program. Long-term qualifications: National High-tech Enterprise, National Intellectual Property Advantage Enterprise, National First Set Major Technical Equipment certification, AEO Advanced Customs Certification, CE & TUV certification.
Q: What machines does Hualong supply?
A: Product range: 5-axis CNC bridge saw, luxury stone multi-strand wire saw, stone waterjet cutter, stone carving center, quarry block processing equipment. We can provide complete production line solutions from quarry to finished stone slabs.
Q: Which countries do Hualong machines export to?
A: Hualong stone machinery is exported to more than 80 countries, including Uzbekistan, Kazakhstan, Middle East, Southeast Asia, Europe and South America. Our machines compete directly with Italian stone machinery brands in European market.
Q: Does Hualong provide overseas installation and commissioning service?
A: Yes. Hualong owns a professional overseas engineer team. We can send technicians to Uzbekistan, Turkey, Southeast Asia, Europe and other regions for on-site machine installation, commissioning and operator training, together with long-term spare parts supply.
Q: Why opt for Hualong Equipment over European imported stone machinery?
A: Hualong Machinery is equipped with control systems of top-tier brands. The precision and performance are on par with European brands while offering superior cost effectiveness. We ensure quicker spare parts supply and worldwide after-sales service, saving you from expensive spare parts and sluggish support from European manufacturers.
