Welcome to Fujian Hualong Machinery Co., Ltd., China. Hualong's 5+1 axis stone cutting machines are widely applied in the stone interior decoration sector. All units hold CE certification. At present, stone processing factories in dozens of countries around the globe choose our equipment, which has won unanimous recognition from clients for its superior performance and reliable quality.

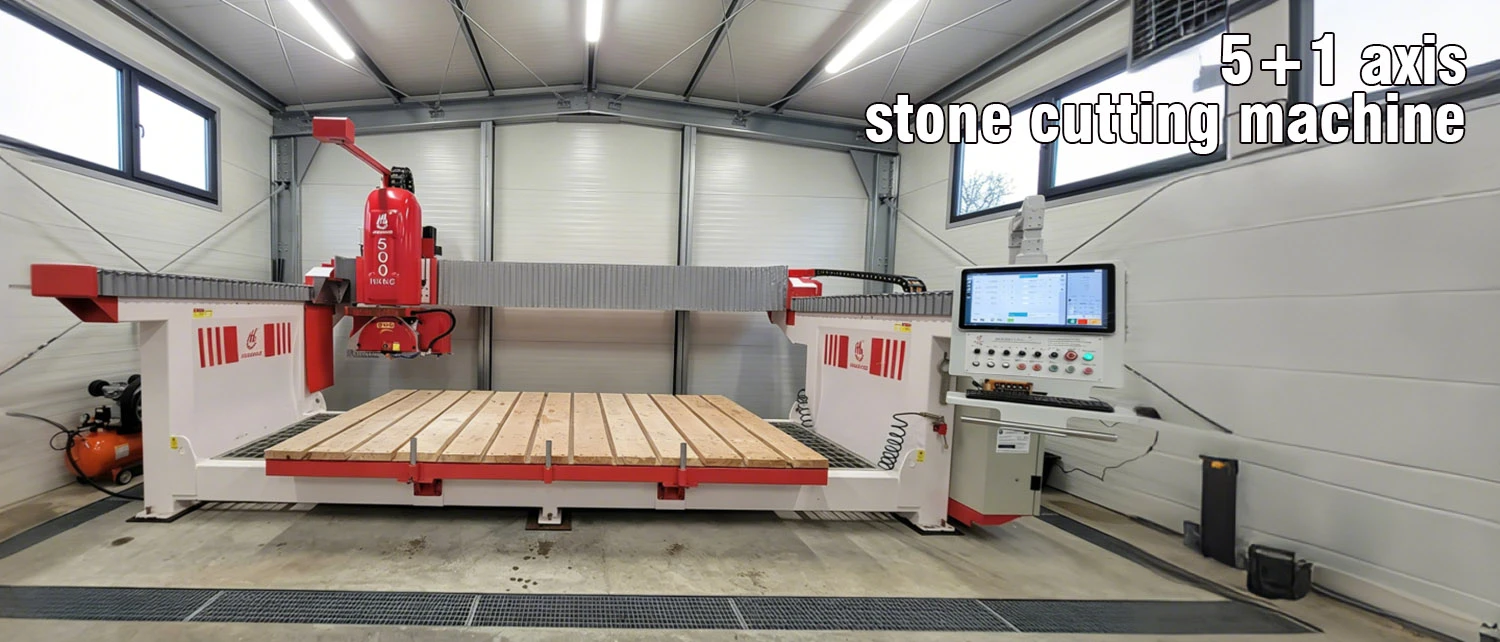

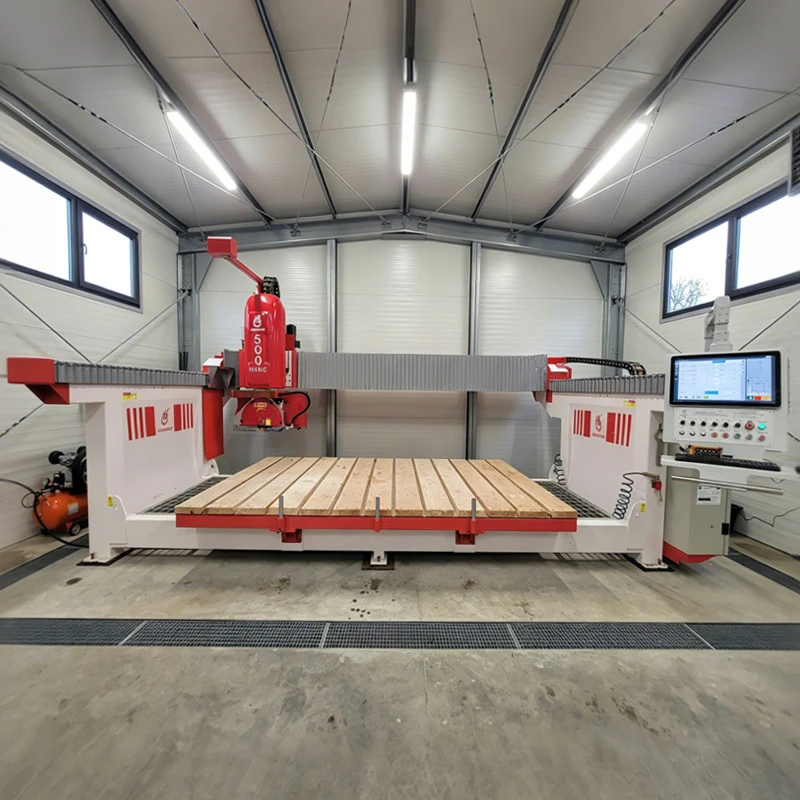

Hualong HKNC-500 5+1 Axis Stone Cutting Machine,this is a high-end CNC stone cutting machine equipped with 5-axis simultaneous interpolation, making it the ideal equipment for processing all types of special-shaped stone slabs. Fitted with a high-speed independent electric spindle, it delivers ultra-precise intricate machining. The whole machine adopts a high-rigidity structural design for outstanding stability and long service life.
Main Functions
Optional Functions
Tool Presetting Unit
Detects the actual outer diameter of saw blades and the radius of milling cutters/drill bits, and writes real dimensional data into the tool offset parameters of the CNC system. It automatically collects diameter differences between new, old and worn saw blades.
Pneumatic slab clamping fixtures
Secure slabs firmly on the worktable to prevent shifting during processing.
AI Vein Matching
Captures texture images of full-size raw slabs to conduct virtual layout planning. It achieves seamless grain alignment for countertops, feature walls, waterfall island edges and stone staircases. This function resolves grain discontinuity and color mismatching issues of natural marble, quartz stone and luxury stone, ideal for high-end decorative stone fabrication.
AI Auto Nesting
Automatically generates optimized cutting layouts to minimize slab material waste.
AI 3D Engraving
Imports design drawings, intelligently recognizes graphics and generates 3D machining paths for high-efficiency shaping.
Technical Parameters
Model NO
| HKNC-500 PLUS
|
Diameter of saw blade
| 400-500mm
|
Dimension of working platform
| 3500×2100mm
|
Max. cutting length
| 3500mm
|
Max. cutting thickness
| 120mm
|
Max. lifting stroke
| 300mm
|
Power of main motor
| 18.8kw
|
Power of electro-spinele
| 5.5kw
|
Power of cutter frame reciproctating motor
| 2kw
|
Power of crossbeam shifting motor
| 1.1kw
|
Power of hydraulic station motor
| 2.2kw
|
Power of lifting motor
| 0.85kw
|
Water consumption
| 2m³/h
|
Dimensions (L x W x H)
| 5900×3380×3000mm
|
Gross weight
| 5800kg
|
FAQ
Q: What control system is the equipment equipped with?
A: The machine adopts the ESA control system imported from Italy.
Q: Does the equipment hold CE certification?
A: Yes, the machine has obtained CE certification and complies with quality and safety standards, so you can purchase it with full confidence.
Q: Can your company provide overseas installation and training services?
A: Absolutely. We have a professional technical team available for overseas assignments to offer on-site installation and operation training services.
Q: How long is the equipment warranty period?
A: The machine comes with a 12-month warranty.
Q: What trade terms do you accept?
A: We support common trade terms including FOB, CIF and EXW.
Q: What is the production lead time for the equipment?
A: The normal production cycle is 30 to 40 days, subject to machine model configuration and production schedule.
Q: Is every unit fully tested before delivery?
A: Yes. Each machine undergoes rigorous trial running before shipment to guarantee consistent quality.
Q: Can customers visit your factory to witness cutting tests?
A: Certainly. We sincerely welcome all clients to come to our factory for on-site inspections and cutting demonstrations.
