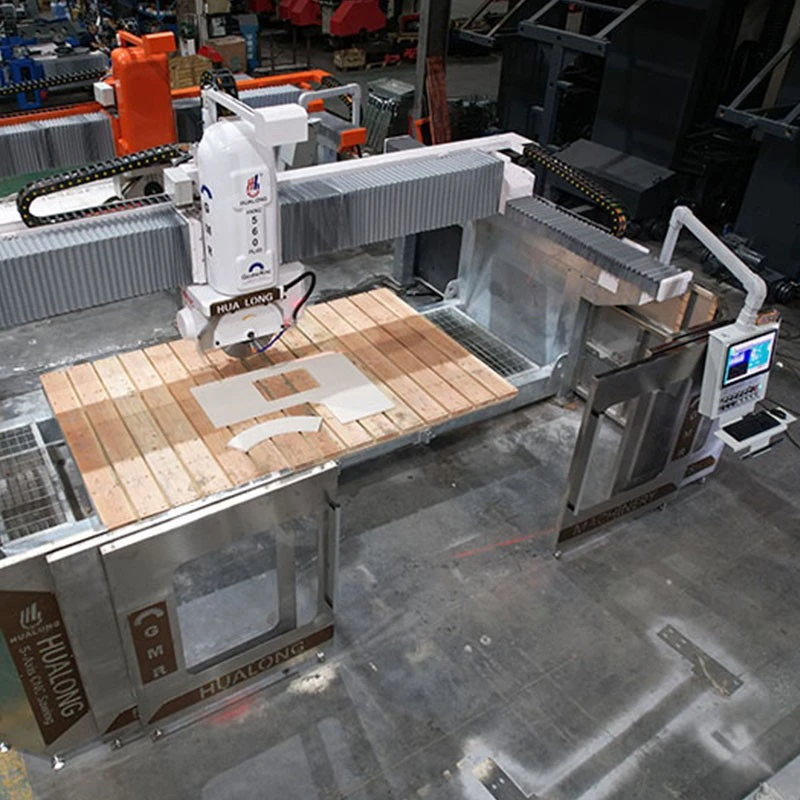

Hualong Machinery HKNC560PLUS 5+1 Axis CNC Bridge Saw
The HKNC560PLUS from Hualong Machinery is a 5+1 axis CNC bridge saw equipped with a high-end Italian control system. Its worktable features a dimension of 3200*2100mm, enabling the processing of large-format slabs.
Based on the 5-axis configuration, an additional engraving cutter is fitted, which greatly facilitates the machining of sink cutouts on kitchen countertops. Specifically, the engraving cutter first trims the small-angle arc sections with precision, followed by the saw blade cutting the straight lines. The seamless collaboration of these two functions ensures a flawless finish of the end product.
The 5+1 axis CNC bridge saw also comes with a comprehensive range of advanced features:
Camera Function
Captures the exact shape of slabs and allows direct layout of cutting paths on the slab graphics, ensuring greater convenience and efficiency in operation.
Sucker Function
Moves the cut slab blanks to prevent interference with subsequent machining processes.
Sliding Protective Door
Added for enhanced operator safety during machine operation.
|
Model NO |
Unit |
HKNC560PLUS |
|
Diameter of saw blade |
mm |
ø400-ø560 |
|
Dimension of working platform |
mm |
3500x2100 |
|
Max. cutting length |
mm |
3500 |
|
Max. cutting thickness |
mm |
150 |
|
Max. lifting stroke |
kg |
300 |
|
Max. lifting weight by sunction cups |
kw |
200 |
|
Power of main motor |
kw |
18.5 |
|
Power of cutter frame reciproctating motor |
kw |
2 |
|
Power of crossbeam shifting motor |
kw |
1.1 |
|
Power of hydraulic station motor |
kw |
2.2 |
|
Power of lifting motor |
kw |
0.85 |
|
Power of electric spindle |
kw |
5.5 |
|
Gross power |
kw |
32.5 |
|
Water consumption |
m3/h |
2 |
|
Gross weight |
kg |
5900 |
|
Dimensions (L x W x H) |
mm |
5900x3380x3000 |
HKNC500PLUS CNC Bridge Saw - Key Features
1,The main motor adopts a permanent magnet motor for high efficiency and energy saving.
2,The main beam is a cast one, ensuring the whole machine is sturdy and durable.
3,Equipped with an Italian control system.
4,Independently configured with a carving knife function to complete more processes.
5,Stainless steel protective door for enhanced safety.
6,Customizable according to customer requirements.
7,Capable of processing a variety of slabs including marble, granite, quartz stone, and sintered stone.
It is equipped with a camera function that captures slab images, enabling visualized optimization of cutting paths for higher efficiency and material waste reduction.
The cutting head can rotate freely at 360° for multi-angle cutting of slabs.
Blade can tilt 90 for anyany direction's and anyangle's chamfering cutting
It comes with an independent engraving function, capable of completing processes that cannot be achieved by saw blades and performing various relief carving operations.
Automatically measuring blade diameter and diamond tool
A vacuum suction cup is adopted to move cut slabs during the cutting process, facilitating subsequent cutting operations.
It adopts an Italian brand operating system (please contact us for detailed configurations).
Rubber workbench (optional); standard configuration is wooden workbench.
CNC Bridge Saw Manufacturer
As a professional manufacturer of CNC bridge saws, Hualong Machinery boasts over 30 years of expertise in the stone machinery manufacturing industry. We produce a comprehensive range of models, including 3-axis, 4-axis, and 5-axis CNC bridge saws, as well as 4+1 axis and 5+1 axis variants. Our equipment has been exported to more than 30 countries and regions, such as the United States, Italy, Canada, India, Spain, Australia, and Turkey. With a production plant spanning over 28,000 square meters and all products certified by the EU CE mark, we are a powerful and reliable manufacturer of CNC bridge saws with a proven brand reputation in overseas markets.
CNC Bridge Saw Price
Pricing for our equipment is customized based on specific customer requirements, with variations according to different models and configurations. We will recommend the most suitable model and create a tailored quotation plan based on your exact processing needs. If you are planning to purchase CNC bridge saw equipment, please feel free to contact us for further details.
