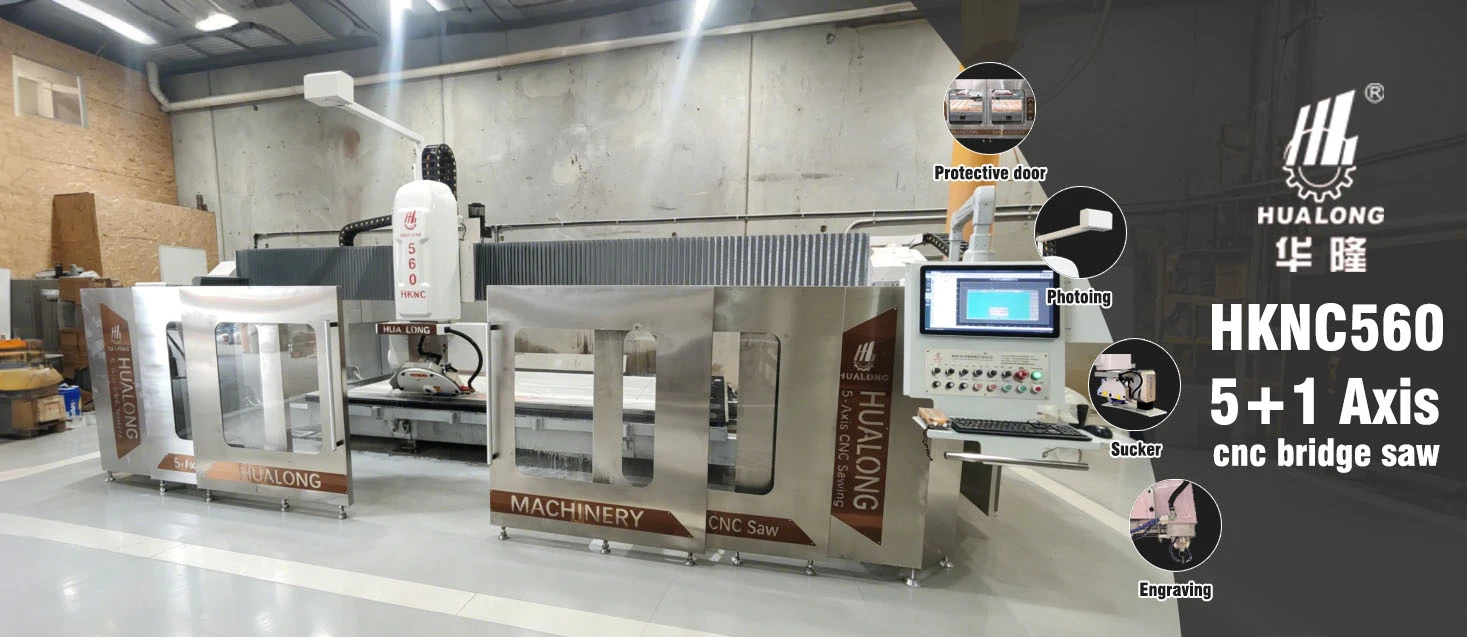

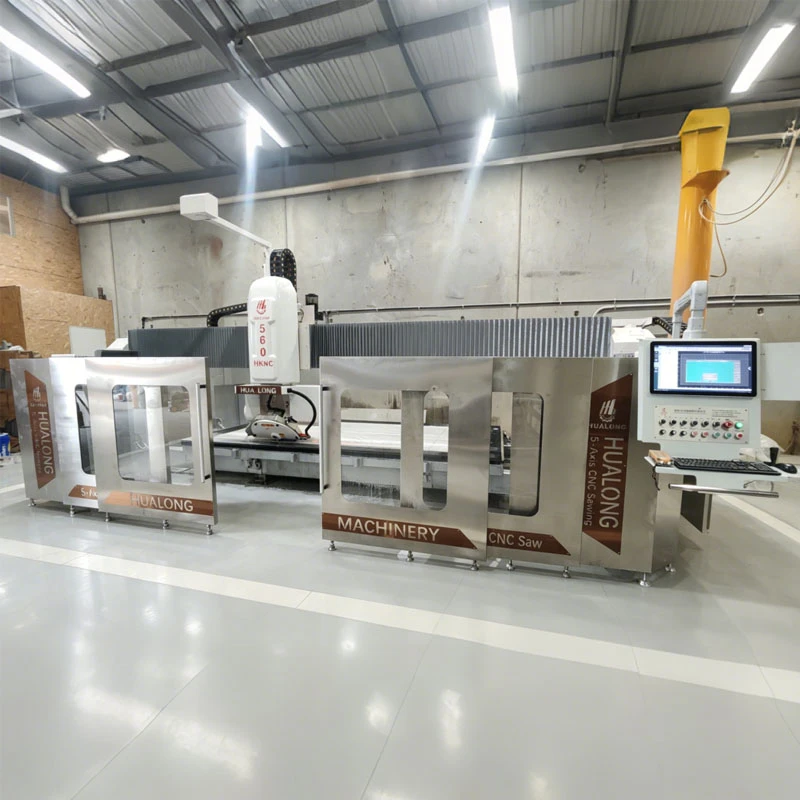

Welcome to the official website of Fujian Hualong Machinery Co., Ltd. (China). The HKNC-560 5 axis stone cnc machine is a CNC stone cutting machine tailor-made for stone processing factories. It overcomes the processing limitations of 3-axis and 4-axis models, capable of fabricating intricate 3D contours, curved lines and other complex shapes to fulfill highly customized order requirements, helping stone factories achieve greater profit margins.

Hualong HKNC-560 5 axis stone cnc machine is equipped with an Italian ESA control system and Pegasus CAD/CAM software. Processing drawing files can be imported directly to generate cutting paths. This machine is mainly used for cutting marble, granite, quartz stone and other stone materials. Combined with the optional milling spindle, its 5-axis linkage function enables rapid completion of grooving, contour machining, drilling, relief carving and other processing tasks, greatly improving production efficiency.

Core Functions

Photo Scanning Function

Equipped with a professional high-definition camera to capture images of stone slabs. The software allows manual free layout of cutting paths to maximize slab material utilization rate.

Vacuum Suction Cup Function

Comes with vacuum suction cups. During processing, the suction cups automatically transfer stone slabs to designated positions as required.

Milling Spindle

An additional high-speed electric spindle is equipped. Fitted with milling cutters, it efficiently completes drilling and milling operations.

360° Rotatable Cutting Head

The cutting head supports full 360° rotation to perform angled bevel cutting, arc profiling and other complex cutting operations at any angle.

Blade Bevel Adjustment

The saw blade tilts freely from 0° to 90° for arbitrary-angle bevel cutting, satisfying diverse customized stone processing requirements.

Optional & Extra Features

-85° Hydraulic Tilting Worktable (Standard)

-Automatic Nesting System – Optional

-Stone Vein Matching System – Optional

-Tool Setting Probe – Optional

-Slab Thickness Measuring Device – Optional

-Pneumatic Slab Clamps – Optional

-Stainless Steel Safety Enclosure Door – Optional

-Rubber Worktable Mat – Optional

-Full 3D Machining Function – Optional

Technical Parameters

Model NO	Unit	HKNC560PLUS
Diameter of saw blade	mm	ø400-ø560
Dimension of working platform	mm	3500x2100
Max. cutting length	mm	3500
Max. cutting thickness	mm	150
Max. lifting stroke	kg	300
Max. lifting weight by sunction cups	kw	200
Power of main motor	kw	18.8
Power of cutter frame reciproctating motor	kw	2
Power of crossbeam shifting motor	kw	1.1
Power of hydraulic station motor	kw	2.2
Power of lifting motor	kw	0.85
Power of electric spindle	kw	5.5
Gross power	kw	32.5
Water consumption	m3/h	2
Gross weight	kg	5900
Dimensions (L x W x H)	mm	5900x3380x3000

FAQ

Q: What control system is equipped on the machine?

A: The machine adopts the Italian ESA control system.

Q: Does the machine hold CE certification?

A: Yes, all our machines are CE certified and meet export standards for most countries.

Q: What is the maximum diameter of the saw blade that the machine can install?

A: It supports diamond saw blades with specifications ranging from 350 mm to 450 mm.

Q: How long is the production lead time for the machine?

A: The standard production lead time is 30 days.

Q: What is the warranty period of the machine?

A: We offer a 12-month warranty for the machine.

Q: What trade terms are available?

A: We support common trade terms including FOB, CIF and EXW.

Q: What after-sales services are available for overseas customers?

A: We provide two types of after-sales support: online and on-site. Online service includes rapid troubleshooting and technical guidance. For offline support, we offer technician dispatch service; technicians can be sent to the customer's factory site upon request.
