HKNC-500 Plus 5+1 Axis CNC Bridge Cutting Machine,Powered by high-end Italian control system, this machine integrates intelligent nesting, multi-axis linkage and multi-function capabilities. It delivers efficient, precise and flexible production solutions for stone processing enterprises, helping manufacturers break through the bottlenecks of complex machining and capture the mid-to-high-end customized market.

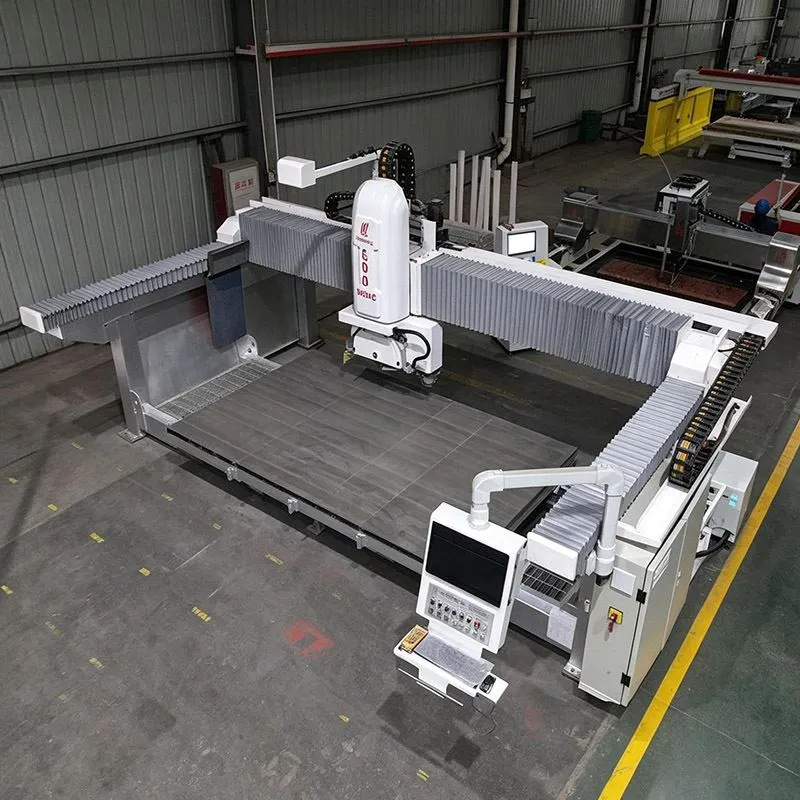

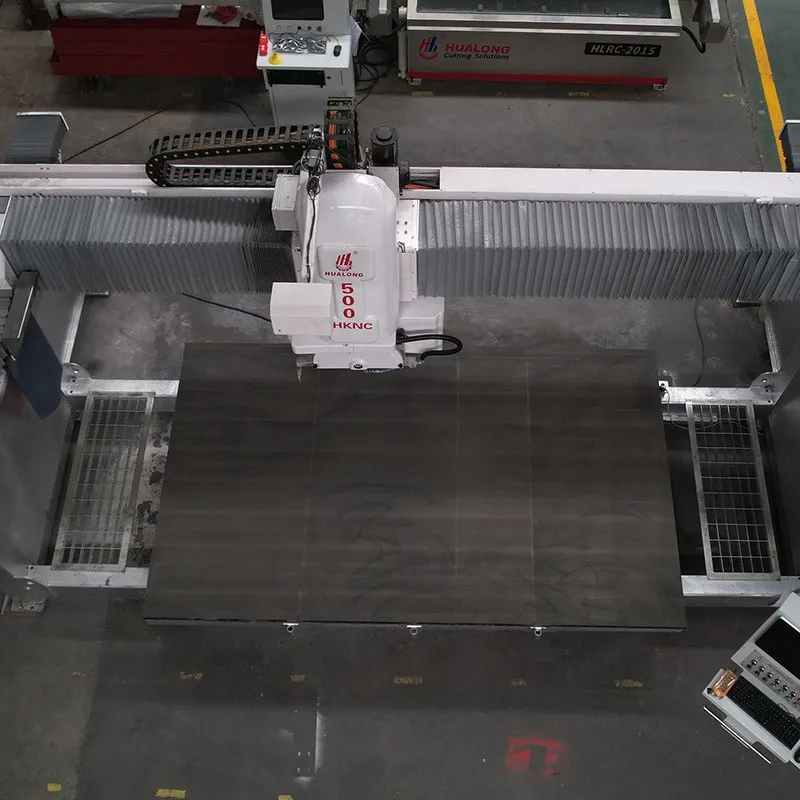

HKNC-500 Plus 5+1 Axis Bridge Cutting Machine is a flagship device developed by Hualong Machinery for high-end stone processing scenarios. It is suitable for high-precision cutting and special-shaped machining of granite, marble, artificial stone, sintered stone and large ceramic slabs.

Core Technologies & Advantages

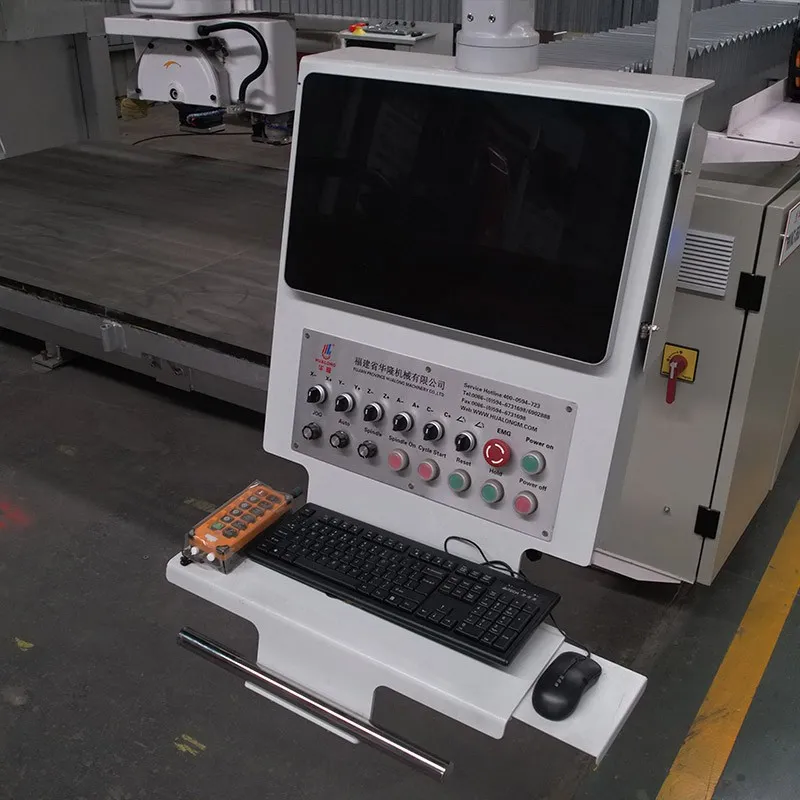

Italian ESA CNC System: Equipped with digital servo motors, it realizes 5-axis linkage interpolation control. The cutting head can rotate 0-360°, the saw blade performs chamfering at any angle from 0° to 90°, and the worktable tilts 0-85°. The 5-axis linkage enables flexible movement of the saw blade for complex curved surface and 3D profiling machining.

Pegasus CAD/CAM Software: Compatible with drawing import. Combined with the photo positioning module, it automatically identifies slabs and plans nesting layout, greatly improving material utilization and reducing raw material waste.

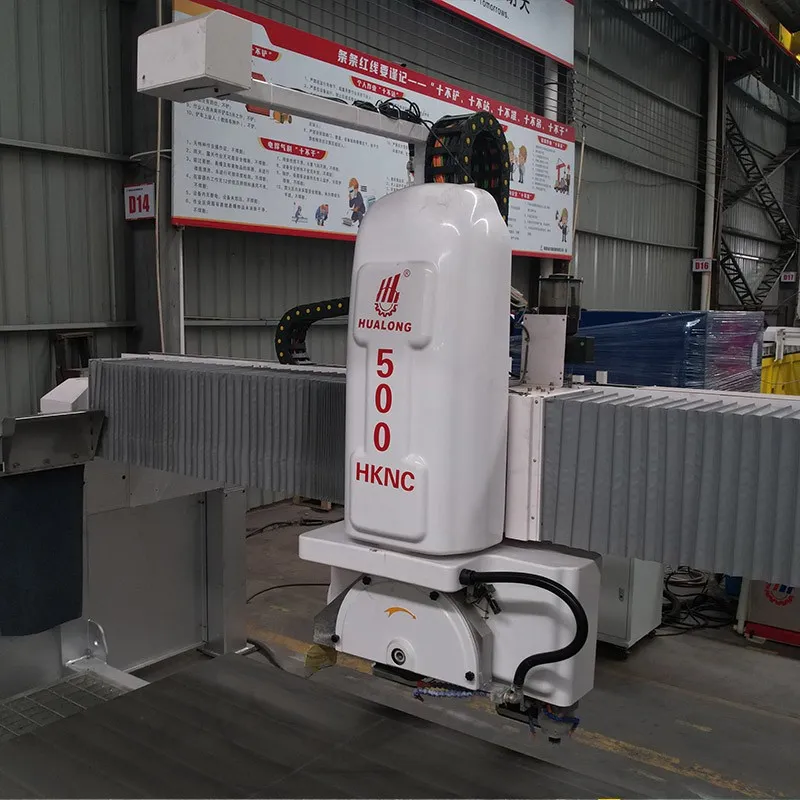

5-axis Linkage Cutting: On the basis of X/Y/Z three-axis movement, the saw blade supports linkage of Axis A (saw blade tilting) and Axis C (cutting head rotation). It easily completes complex processes including 0-90° arbitrary angle chamfering, arc cutting, polygon machining and edge trimming without re-clamping and repositioning.

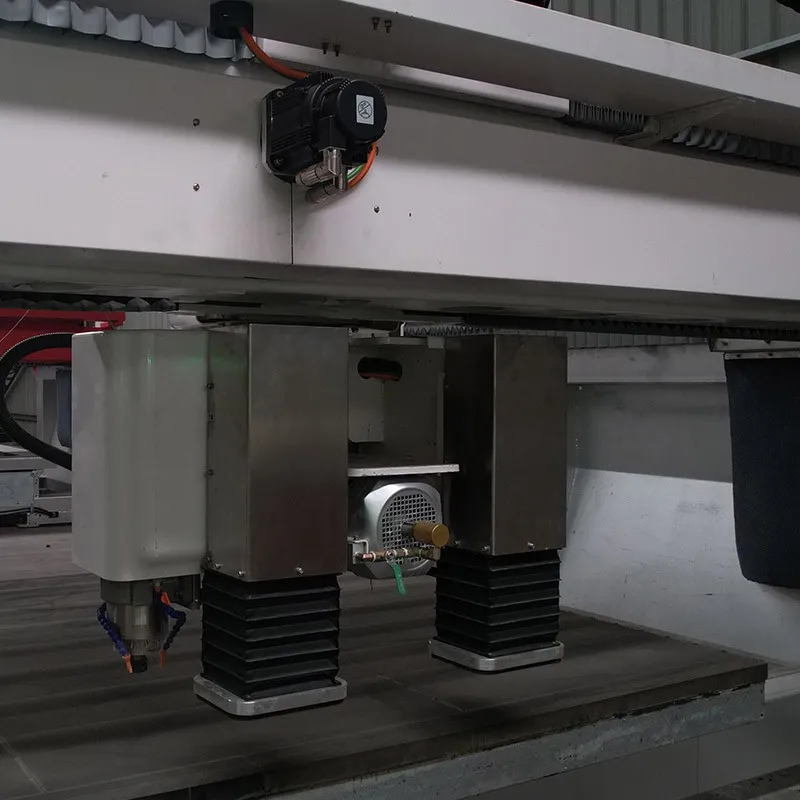

Extended +1 Axis High-speed Motor Spindle: Fitted with a motor spindle with a speed range of 0-24000 rpm. Installed with milling cutters, it supports milling, drilling and engraving. The machine integrates cutting and milling functions to achieve multi-purpose use, meeting customized requirements such as countertop hole drilling and decorative line profiling.

Wide Compatibility with Various Materials: It accommodates saw blades with a diameter of 350-500 mm. For slabs of different materials and thicknesses such as granite, marble, sintered stone and quartz stone, users can install matched saw blades and set dedicated parameters for optimal cutting performance.

High-rigidity Frame Structure: Built with heavy-duty cast body and one-piece cast crossbeam for outstanding rigidity. Fitted with premium linear guides and ball screws, the machine operates with low vibration, maintains high machining accuracy and resists deformation during long-term operation.

Large Machining Range: Standard worktable size: 3500×2100 mm. Maximum cutting length: 3500 mm; maximum cutting thickness: 120 mm. It is ideal for large slabs and standard stone panels, perfectly suited for most kitchen & bathroom countertops and engineering orders.

Reliable Power Configuration: Adopts a 18.8 kW permanent magnet main motor. The cutting speed can be adjusted according to different stone types for superior adaptability.

Optional Rubber Worktable: The replaceable rubber worktop effectively protects stone slabs and extends the service life of the worktable.

Technical Parameters

Model NO	unit	HKNC-500 PLUS
Diameter of saw blade	mm	400-500
Dimension of working platform	mm	3500×2100
Max. cutting length	mm	3500
Max. cutting thickness	mm	120
Max. lifting stroke	mm	300
Power of main motor	kw	18.8
Power of electro-spinele	kw	5.5
Power of cutter frame reciproctating motor	kw	2
Power of crossbeam shifting motor	kw	1.1
Power of hydraulic station motor	kw	2.2
Power of lifting motor	kw	0.85
Water consumption	m³/h	2
Dimensions (L x W x H)	mm	5900×3380×3000
Gross weight	kg	5800

Typical Application Scenarios

Kitchen and bathroom countertop processing: straight cutting, 45° chamfering & jointing, sink hole drilling, enabling seamless jointing.

Suitable for feature walls, table tops, decorative panels, floor paving, stair treads and more.

Special-shaped stone processing: capable of machining complex profiles such as arcs, polygons, carved lines and 3D shapes. Ideal for customized products including fireplaces, decorative columns, landscape stones and art ornaments.

Services & Guarantees

Quality Certifications: The machine is certified with CE, ISO9001 and other international standards. Core components are sourced from world-renowned brands including Siemens and Schneider Electric, ensuring stable performance and long service life.

Customization Services: Customizable modules such as worktable, vacuum suction cups and software functions are available to fit diverse production scenarios and processing requirements.

After-sales Support: We provide on-site installation, commissioning and operator training. The whole machine enjoys a 12-month warranty, together with lifetime technical support and spare parts supply to fully eliminate your operational concerns.

FAQ

Q: What is the difference between a 5+1 axis bridge cutting machine and a standard 5-axis model?

A: The 5+1 axis version is equipped with an additional independent motor spindle. It can be fitted with milling cutters to perform refined operations such as milling, drilling and engraving.

Q: How stable is the crossbeam? Is it prone to deformation after long-term use?

A: We adopt an integral cast crossbeam, unlike ordinary welded beams. It features high rigidity and solid structure with low operating vibration. It stays stable and resistant to deformation, maintaining high precision throughout long-term operation.

Q: What control system does the machine adopt?

A: It is equipped with the Italian ESA control system.

Q: Does the machine have CE certification?

A: Yes, the machine is CE certified.

Q: What is the warranty period?

A: We provide a 12-month warranty. Free spare parts will be supplied for non-artificial component failures within the warranty period.

Q: What is the production lead time?

A: The lead time depends on machine configuration and production schedule. Generally, it takes around 30 days upon receipt of the advance payment.

Q: Do you provide on-site installation and training?

A: Yes, we offer on-site installation and training services for customers worldwide.
