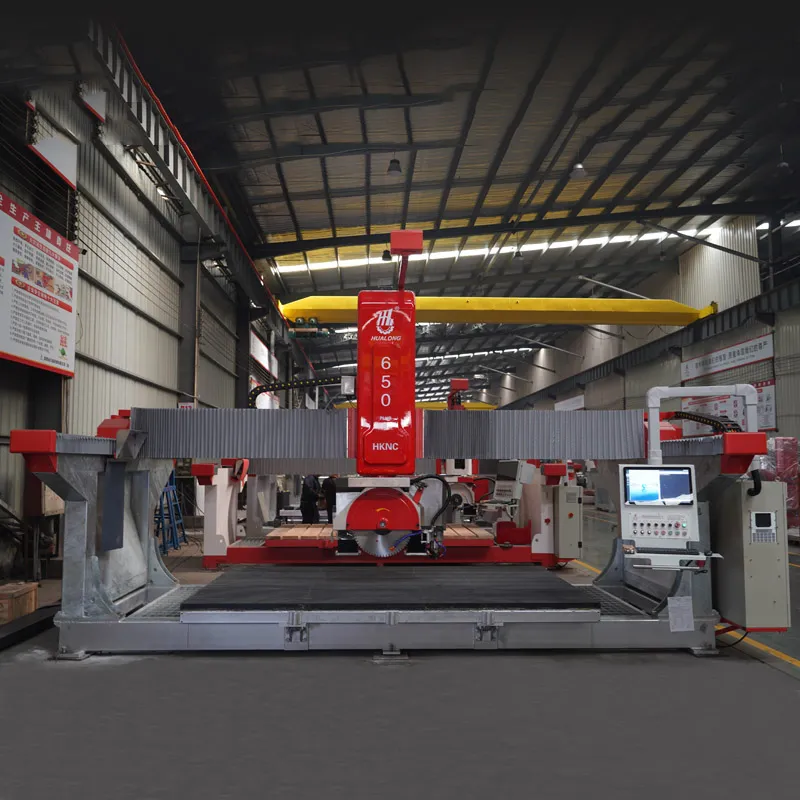

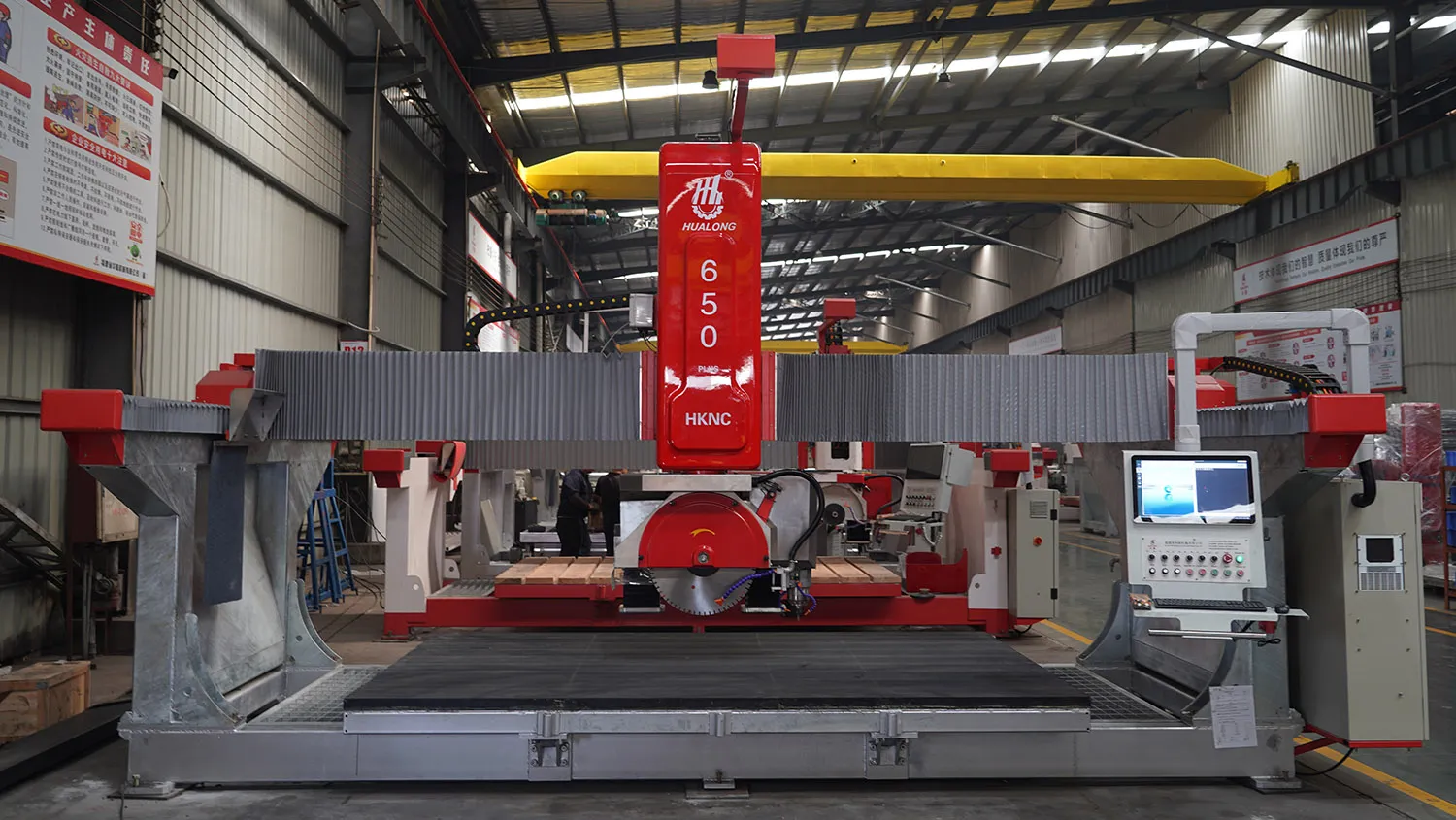

Hualong HKNC650 CNC Stone Bridge Saw is a 5-axis stone cutting machine equipped with Italian ESA control system. It features a high-rigidity solid frame and an independent high-speed motor spindle. Fitted with milling cutters, the machine can perform milling, drilling, engraving and other processes. Supported by 5-axis linkage, it handles complex machining such as multi-angle cutting, curved surfaces and 3D shaping. It is applicable to marble, granite, artificial stone, quartz stone, sintered stone and other stone materials.
This machine can be installed with saw blades ranging from 350mm to 650mm in diameter, with a maximum cutting depth of 200mm. It adopts a 18.8 kW high-efficiency permanent magnet motor. Weighing up to 6 tons, the machine is built with an integrated cast beam, which ensures stable operation of the cutting head and effectively prevents deformation that may compromise machining accuracy. The worktable measures 3500*2100 mm, enabling processing of large-size stone slabs. It is also equipped with camera positioning and vacuum suction functions to greatly improve production efficiency.
Technical Parameters
|
NAME |
Unit |
HLNC-650 PLUS |
|
Diameter of saw balde |
mm |
Φ350-650 |
|
Dimensions of working platform |
mm |
3500×2100 |
|
Max. length of horizontal cutting |
mm |
3500 |
|
Max. cutting thickness |
mm |
200 |
|
Max. lifting stroke |
mm |
500 |
|
Max. lifting weight by vacuum |
kg |
200 |
|
Max. lifting weight by vacuum |
kw |
18.8 |
|
Power of cutter frame reciprocating motor |
kw |
2 |
|
Power of crossbeam shifting motor |
kw |
1.15 |
|
Power of hydraulic station motor |
kw |
2.2 |
|
Power of lifting motor |
kw |
0.85 |
|
Gross power |
kw |
32.5 |
|
Water consumption |
m³/h |
2 |
|
Dimensions (LxWxH) |
mm |
6250×3400×3700 |
|
Gross weight |
kg |
6200 |
Main Functions
Cutting head: 0°~360° rotation
Saw blade: 0°~90° arbitrary chamfering
Camera function for automatic nesting and cutting path optimization
Vacuum suction system to automatically position slabs without manual operation

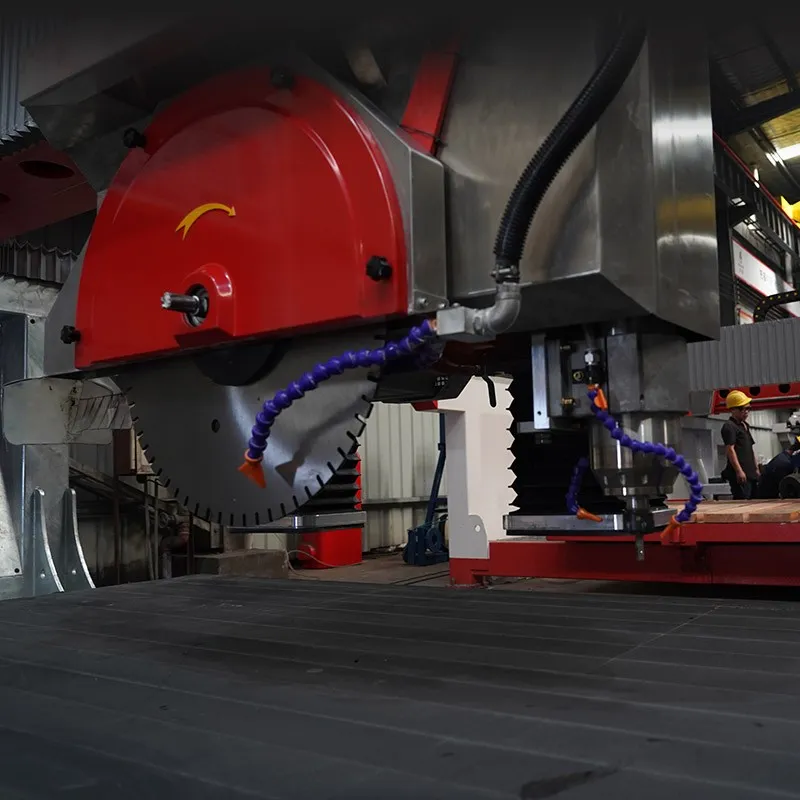

Motor spindle, compatible with milling cutters for milling, drilling and engraving
Worktable: 85° tilting capability
Optional Configurations
Stainless steel safety guard
Slab thickness gauge for material thickness measurement
Tool setter for tool dimension detection
Optional Functions
Vein matching, automatic nesting and 3D machining function
FAQ
Q: Are you a direct manufacturer?
A: Yes. We are an integrated stone machinery manufacturer integrating R&D, design, production and sales.
Q: Can we tour your factory online?
A: Sure. We can arrange an online video call for you to visit our factory anytime.

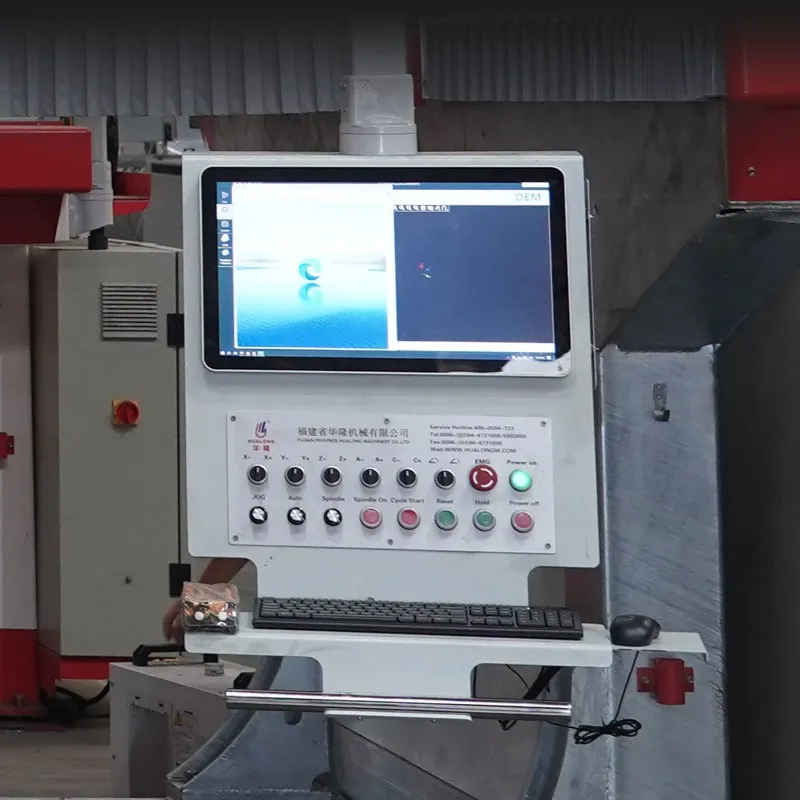

Q: What control system does the machine adopt?
A: It is equipped with Italian ESA control system.
Q: Is the machine CE certified?
A: Yes, all our machines have passed CE certification.
Q: Do you provide overseas on-site installation service?
A: Yes. We will send professional technicians overseas for installation and operation training.
Q: What is the warranty period of the equipment?
A: We provide 12 months warranty.
Q: What trade terms do you accept?
A: We accept common trade terms including FOB, CIF and EXW.
Q: How long is the production lead time?
A: Generally 30 to 40 days after receiving the deposit, depending on machine models and configurations.
