Hualong Machinery HLSJ-2000/2500/3000 4-Axis Diamond Wire Saw for Stone adopts a gantry single-line diamond wire saw structure. Leveraging the flexible cutting property of diamond bead wire and equipped with a 4-axis linkage system, it realizes profile cutting of irregular shapes for various stone blocks such as marble and granite. It is suitable for processing arc slabs, special-shaped moldings and irregular profiles. Different machine models can be matched according to the specifications of various stone blocks.
Equipment Features
Equipped with a CNC system, it features a simple and flexible human-machine interface.
Stable flywheel tension improves cutting accuracy. Capable of machining various complex curved surfaces.
The cutting speed can be adjusted to meet different requirements.
Easy to operate with high processing efficiency. The produced stone slabs feature precise dimensions and smooth, flat edges.
Technical Parameters
|
Name |
Unit |
HLSJ-2000 |
HLSJ-2500 |
HLSJ-3000 |
|
Max processing size |
mm |
2000×3000×1500 |
2500×3000×1500 |
3000×3000×1500 |
|
Wheel diameter |
mm |
1600 |
1600 |
1600 |
|
Trolley size |
mm |
1300×2500 |
1300×2500 |
1300×2500 |
|
Table bearing weight |
T |
15 |
15 |
15 |
|
Main motor |
kw |
11 |
11 |
11 |
|
Wire speed |
m/s |
0~40 |
0~40 |
0~40 |
|
Outline dimension |
mm |
6800×6300×3800 |
7800×6300×3800 |
8800×6300×3800 |
|
Gross weight |
kg |
5500 |
5750 |
6000 |
|
Water consumption |
m³/h |
4 |
4 |
4 |
|
Max processing size (with rotary worktable) |
mm |
No option |
2500×3000×1500 |
3000×3000×1500 |
|
Rotary trolley size (with rotary worktable) |
mm |
No option |
1400×2000 |
1600×2000 |
|
Outline dimension (with rotary worktable) |
mm |
No option |
7800×6800×4100 |
8800×6800×4100 |

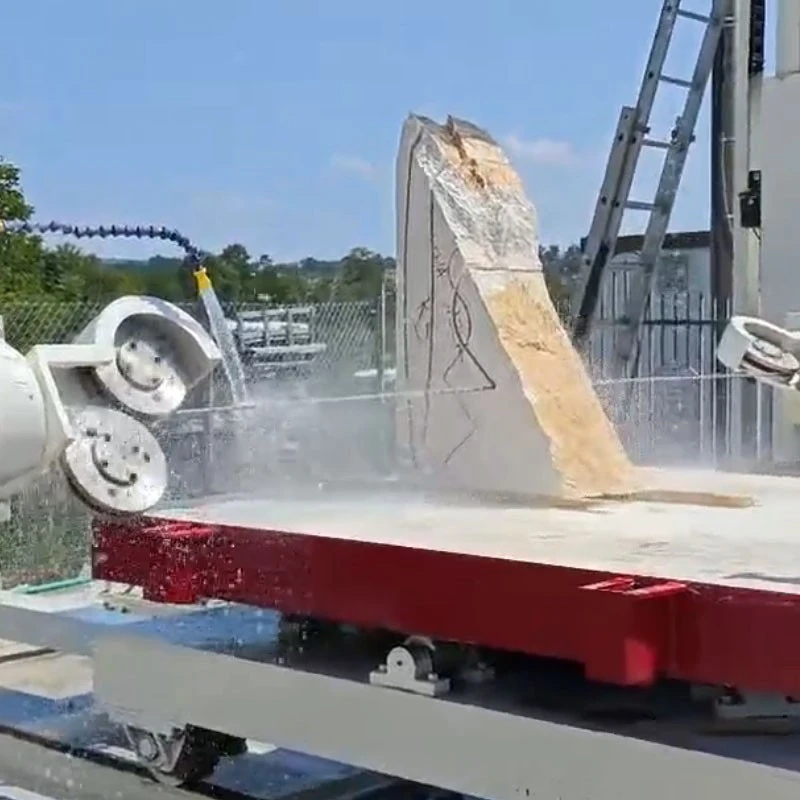

Application Cases of Diamond Wire Stone Saw
Capable of processing arc slabs, special-shaped stone moldings, irregular stone profiles, etc.
Customer Cases of Diamond Wire Stone Saw
FAQ
Q: Are you the direct manufacturer? Can we visit your factory?
A: Yes, we are a stone machinery manufacturer integrating R&D, production and sales. You are warmly welcome to visit our factory for inspection.
Q: What authoritative certifications do you have? Are CE and ISO9001 certifications available?
A: Hualong Machinery is a National High-Tech Enterprise and a National-level Specialized, Sophisticated, Distinctive and Innovative "Little Giant" Enterprise. We hold complete CE and ISO9001 certifications.
Q: Can you provide on-site factory videos and workshop production line videos?
A: Sure. You can learn about our production workshop and warehouse capacity via video calls.
Q: Do you support OEM/ODM customized equipment and private labeling?
A: Yes, we accept customization.
Q: What stone machinery do you mainly supply?
A: Multi-blade block saws, CNC bridge saws, stone engraving machines, automatic edge polishing machines, automatic polishing machines, waterjet cutting machines, etc.
Q: How long is the equipment production lead time?
A: Normally 30–45 days, subject to machine model and configuration.
Q: How long is the equipment warranty?
A: The whole machine enjoys a 12-month warranty, excluding wearing parts and consumables.
Q: Can you arrange technicians for overseas customers to conduct on-site installation, commissioning and training?
A: Yes, we can provide on-site installation, commissioning and training services.
Q: What trade terms are available?
A: We support common trade terms including FOB, CIF and EXW.
