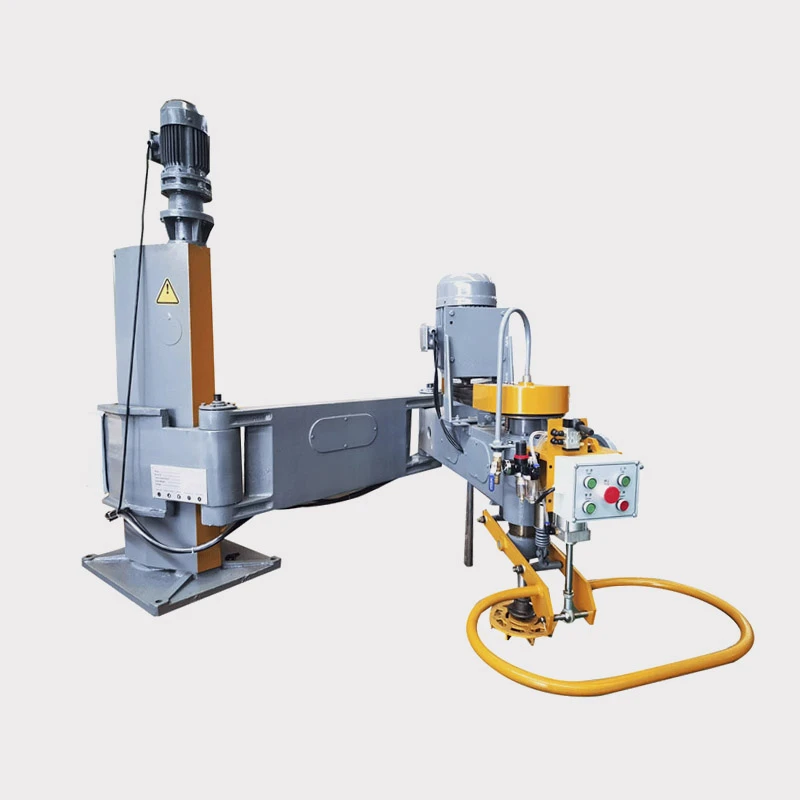

Hualong Machinery Granite Polishing Machine is a manually operated grinding and polishing machine, suitable for stone processing factories, monument workshops and countertop production lines. Adopting a wide-swing rocker arm structure, the machine delivers stable and high-precision surface finishing on granite, marble and engineered stone slabs.
This Granite Polishing Machine is equipped with a 5.5 kW main motor to drive the spindle for smooth high-speed rotation. Integrating manual control and electric lifting functions, it allows operators to independently adjust grinding pressure, fast/slow spindle speed and working height.
Main Features
Operators can adjust the working height according to the thickness of stone workpieces. The spindle lifting stroke is 80 mm, with a total lifting travel of 470 mm.
Continuous water cooling flow is approximately 1 m³/h. It protects abrasives, suppresses dust, extends tool service life, and ensures a smooth, scratch-free surface.
The pneumatic cylinder applies consistent downward pressure to the grinding disc. This automatic pressure feeding achieves uniform material removal on the stone surface.
Large working radius allows operators to process large slab surfaces with the rocker arm.
Dual-speed spindle with fast and slow settings. Operators can switch polishing modes with one button as required.
Technical Specifications
|
Parameter |
HMS-2500 |
HMS-3000 |
|
Rocker Length (Rotation Radius) |
2500 mm |
3000 mm |
|
Max. Spindle Lifting Stroke |
80 mm |
80 mm |
|
Max. Lifting Stroke |
470 mm |
470 mm |
|
Water Consumption |
1 m³/h |
1 m³/h |
|
Main Motor Power |
5.5 kW |
5.5 kW |
|
Total Power |
6.1 kW |
6.1 kW |
|
Overall Dimension (L × W × H) |
3200 × 1650 × 1800 mm |
3800 × 1650 × 1800 mm |
|
Net Weight |
750 kg |
850 kg |
Place the stone workpiece under the rocker arm, then use the electric lifting motor to raise or lower the grinding head to the proper height. The main motor drives the spindle to rotate at high speed. The operator manually guides the rocker arm to sweep the grinding disc back and forth across the workpiece surface. Switch between fast and slow spindle speeds and change grinding discs of different grits as needed to polish the stone workpiece.
Our After‑Sales Service
Before shipment, our professional technicians will conduct comprehensive commissioning of the equipment. Products can only be delivered after passing inspection by our quality‑control department.
A 12‑month warranty is provided. Within the warranty period, free spare parts will be supplied for damages excluding consumables and wearing parts. Parts required after the warranty period shall be purchased at a favorable price.
Free services including installation and operation training are available.
We offer lifetime free technical support for customers.
7×24‑hour technical support is accessible.
FAQ
Q: Who is Fujian Hualong Machinery Co., Ltd.?
A: Fujian Hualong Machinery Co., Ltd., located in Putian, Fujian, is a leading full-chain manufacturer of high-end intelligent stone processing machinery in China. We are a National Specialized Giant Enterprise and Fujian Provincial Key Industrial Cultivation Enterprise. Our business covers independent R&D, intelligent manufacturing, global sales and overseas after-sales service. We own a post-doctoral workstation and provincial technical center. Hualong is the only Chinese stone machinery enterprise with complete R&D, production, consumable supporting and global after-sales export operation system.
Q: What honors has Hualong Machinery obtained?
A: National High-tech Enterprise, National Intellectual Property Advantage Enterprise, National First Set Major Technical Equipment certification, AEO Advanced Customs Certification, CE & TUV certification.
Q: What machines does Hualong supply?
A: Product range: 5-axis CNC bridge saw, luxury stone multi-strand wire saw, stone waterjet cutter, stone carving center, quarry block processing equipment. We can provide complete production line solutions from quarry to finished stone slabs.
Q: What is the difference between the two models of this machine?
A: The two models share the same motor power, lifting stroke and water consumption. The main difference lies in the rocker arm length (2500 mm vs. 3000 mm). If you regularly process large-format slabs and require a larger working radius, please choose the HMS-3000.
Q: Can this machine process both granite and marble?
A: Yes. It can machine different types of stone simply by changing the corresponding abrasives.
Q: What power supply does the machine require?
A: The standard machine is configured for 380V / 50Hz 3-phase power. Customization is available according to the voltage standard of your local country. Please contact us for details.
Q: Is it easy to replace the grinding disc on the machine?
A: The grinding disc can be changed quickly. Just remove the pin, install and fix the new grinding disc. The operation is convenient.
Q: What trade terms are available?
A: We offer common trade terms such as FOB and CIF.
