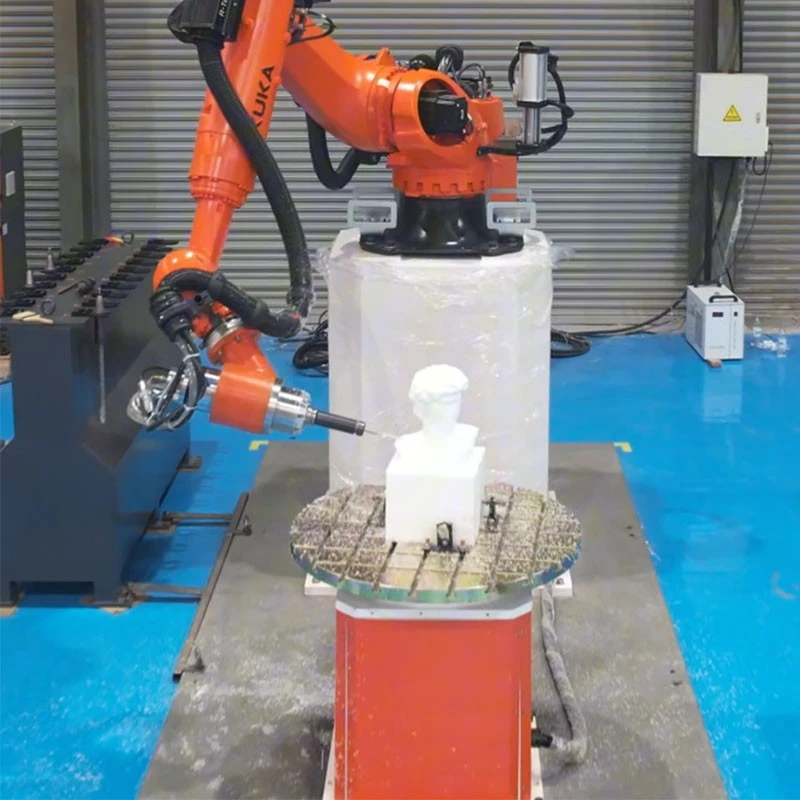

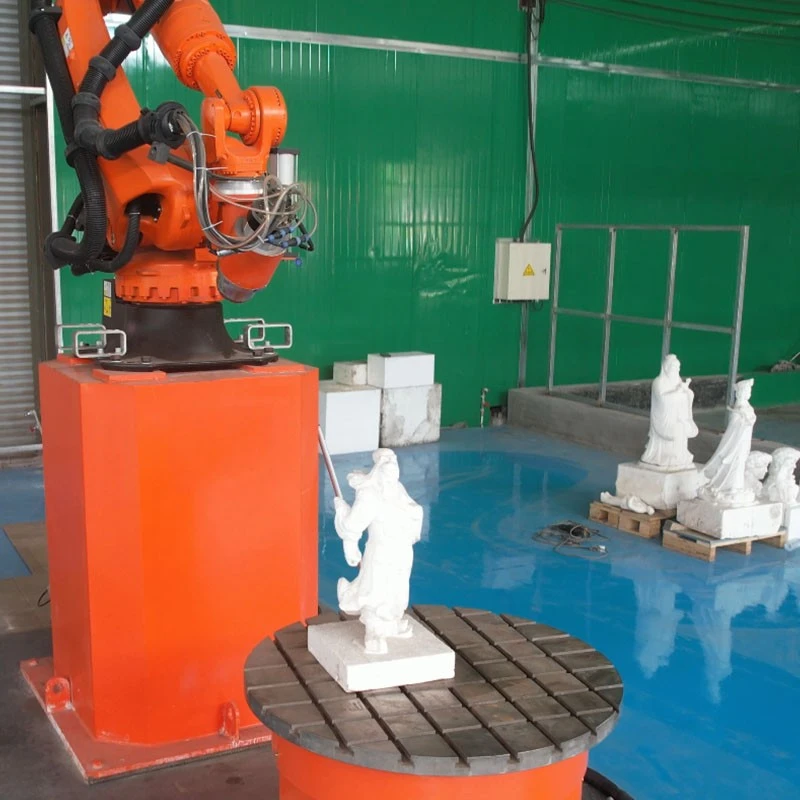

Hualong Machinery HLRB-7A3D stone cnc engraving machine is adaptable to harsh working conditions with high-grade IP dustproof and waterproof protection for the whole unit. Leveraging its seven-axis design advantage, the robotic arm delivers highly flexible movement. Paired with a rotary worktable, it enables engraving operations on workpieces at any arbitrary angle.
This stone cnc engraving machine machine adopts a secondary-developed KUKA robot body with a wide range of application scenarios. The equipment can be equipped with a 20-position tool magazine. Based on the machining programming code, the system automatically identifies tools and performs fast automatic tool changes on demand. Manual tool replacement with machine shutdown, which would compromise production efficiency, is eliminated. The machine supports round-the-clock non-stop operation to cut down total machining hours.
It features a 2700 mm machining stroke and an infinitely rotatable robotic arm. Combined with an omnidirectional rotary worktable, its seven-axis linkage delivers full coverage without dead angles, enabling full three-dimensional processing of irregular sculptural shapes. It is perfectly suited for engraving oversized artworks made of marble and granite.
Powered by the new-generation Ency robot programming platform, the machine supports importing 3D model drawings to rapidly generate optimized machining paths. A built-in AI programming assistant automatically optimizes cutting paths and lowers the threshold for manual programming, allowing general factory workers to master operation quickly.
Technical Parameters
|
TECHNICAL DATA |
HLRB-7A3D 7 Axis Robot |
|
Actual Load |
210 kg |
|
Max. Armspread |
2700 mm |
|
Max. Processable Size |
1000x2500mm |
|
Diameter of Rotation Worktable |
1000 mm |
|
Spindle power |
15 kw |
|
Max. Rotating Speed of Spindle |
18500 rpm/min |
|
Repeat positioning accuracy |
＜ +/- 0.06 mm |
|
Tools supported |
Blades /tools /drilling /polishing |
|
Offline Software |
Sprut CAM |
|
Motion range & Speed of Axis 1 |
+/-185° 86°/s |
|
Motion range & Speed of Axis 2 |
0°/-146° 84°/s |
|
Motion range & Speed of Axis 3 |
+155°/ -119° 84°/s |
|
Motion range & Speed of Axis 4 |
+/-350° 100°/s |
|
Motion range & Speed of Axis 5 |
+/-125° 110°/s |
|
Motion range & Speed of Axis 6 |
+/-350° 184°/s |
|
Motion range & Speed of Axis 7 |
84°/s (infinite rotation) |
Application Fields

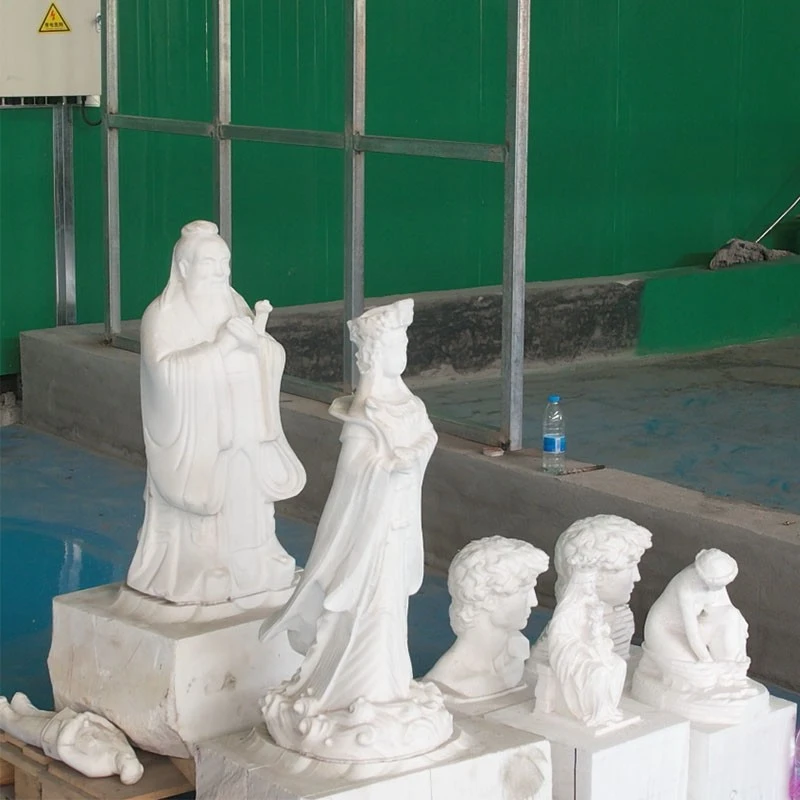

3D Stone Carving: Figurines, Buddha Statues, Animal & Plant Sculptures.
Architectural Stone Materials: Special-shaped Railings, Roman Columns, Irregular Decorative Components.
Art Crafts: Landscape & Garden Sculptures, 3D Craft Ornaments.
FAQ
Q: Are you a direct manufacturer or a trading company? Can we visit your factory on site?
A: We are a professional stone machinery manufacturer integrating R&D, production and sales. You are warmly welcome to visit and inspect our factory.
Q: Can you provide real-shot factory videos and workshop production line videos?
A: Sure, we can send you videos of our production workshop for your reference.
Q: Do you support customized machines?
A: Yes, customization service is available.
Q: How long is the machine production lead time?
A: The normal production lead time is 30 to 45 days.
Q: What is the warranty period of the machines?
A: The whole machine comes with a 12-month warranty, excluding wearing parts and consumables.
Q: Do you offer overseas on-site installation, commissioning and training services by professional technicians?
A: Yes, we provide on-site installation, commissioning and operator training services abroad.
Q: What trade terms do you accept?
A: We support mainstream trade terms including FOB, CIF and EXW.
