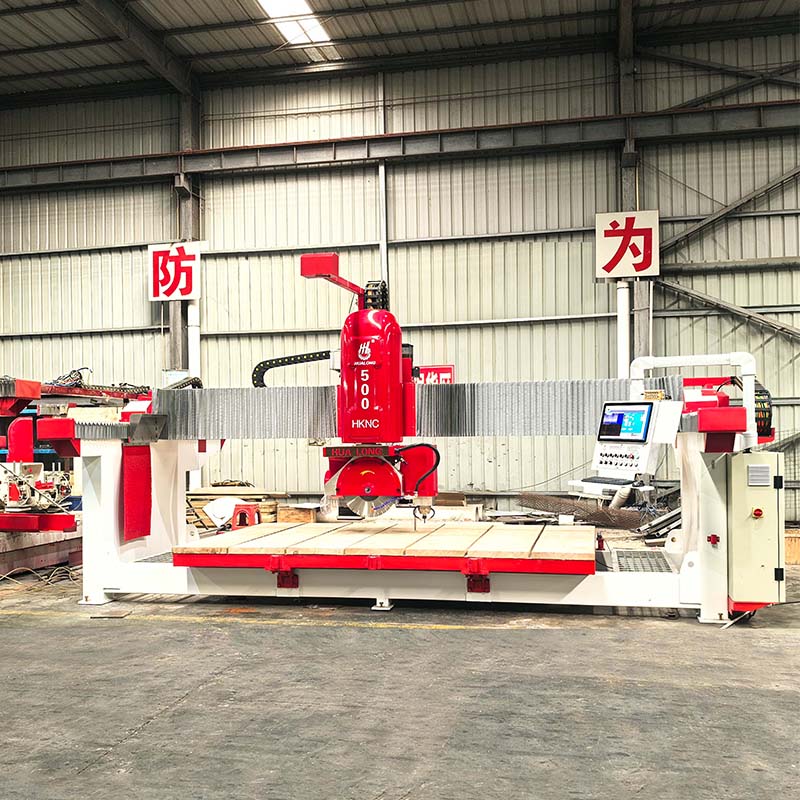

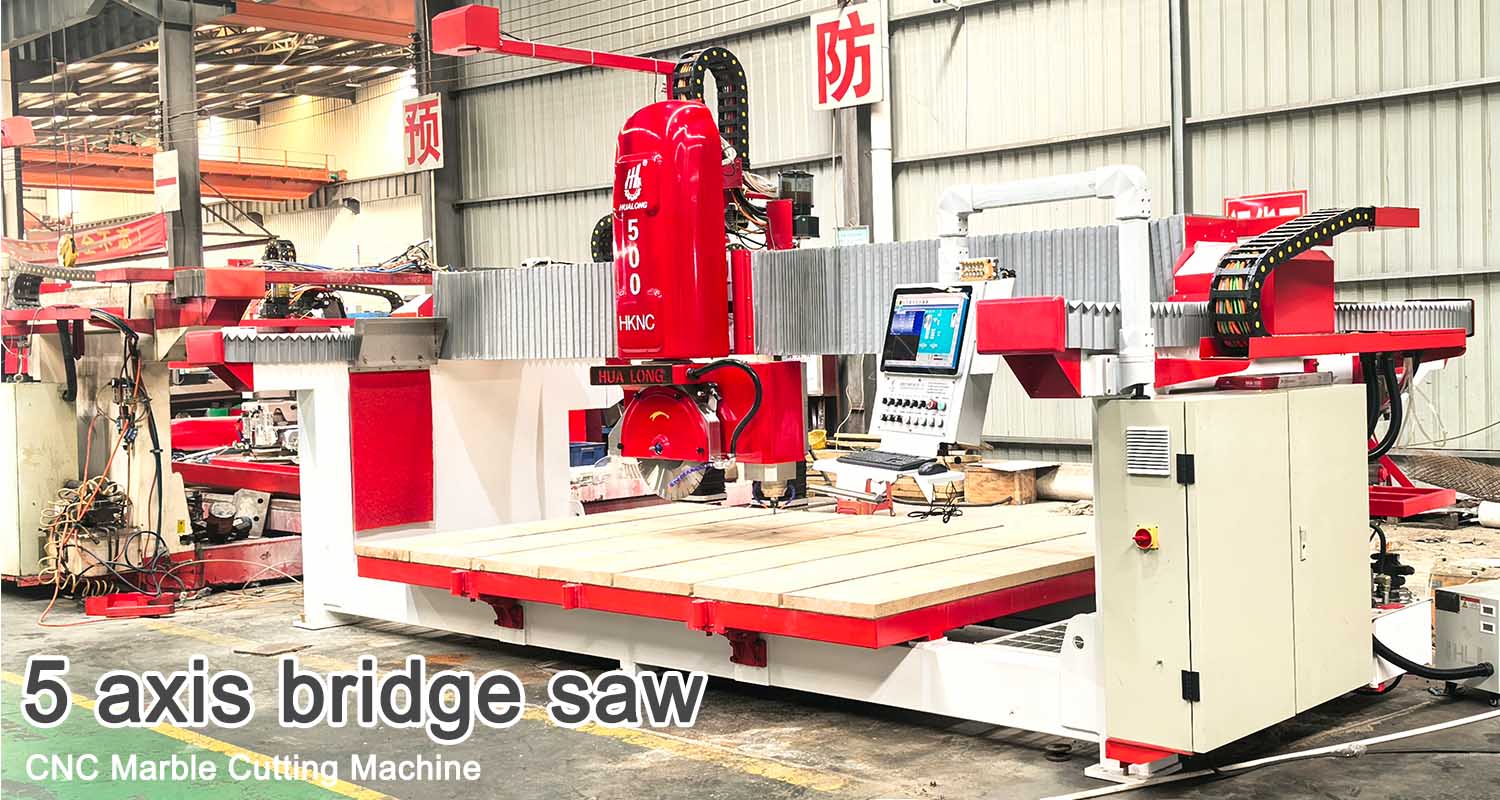

Hualong HKNC-500 Plus 5+1 Axis CNC Marble Cutting Machine is a high-end intelligent 5-axis CNC bridge saw engineered for deep stone processing. It is suitable for cutting large slabs of natural and engineered stone such as marble, granite and quartz stone, as well as complex processes including irregular profile machining, arc cutting, chamfering and sink hole cutting for stone countertops.
CNC marble cutting machine, standard equipped with camera, vacuum suction cups and independent electric spindle. Targeting the core demands of stone factories to boost processing efficiency, improve slab utilization rate, fulfill complex order processing and stabilize finished product precision, it greatly expands stone processing plants' order acceptance capacity.
Core Advantages of the Equipment
Equipped with Italian ESA CNC system and Pegasus CAD/CAM software, paired with ESA digital servo motors for precise motion control and stable operation. Featuring graphical programming, it can directly import CAD drawings to generate tool paths with high intelligence.
5+1 axis linkage enables one-stop machining of complex special-shaped stone. Adopting 5-axis interpolation plus 1-axis high-speed electric spindle with spindle speed ranging from 0 to 24000 rpm. It supports stable and fast arc milling, angle cutting and special contour cutting. The cutting head can rotate 0–360°, saw blade tilts 0–90°, and worktable tilts 0–85°. It can process a wide range of products including stone countertop chamfers, irregular feature walls, curved stone, stair treads and more.
Slab camera positioning system improves the yield rate of large slabs. It automatically nests and optimizes cutting paths after slab scanning to maximize slab utilization. For high-value marble and sintered stone slabs, it directly cuts raw material wastage costs. Fitted with vacuum sucker material handling device to facilitate slab movement during cutting.
Integrated cast beam and robust machine frame suit long-hour factory operation. High rigidity and low cutting vibration ensure stable dimensional accuracy even under prolonged continuous machining.
Application Scenarios
Large stone slab cutting, kitchen countertop & bathroom countertop fabrication
Special-shaped stone, curved slabs, stone feature walls, stone moldings, stair treads
Fabrication of various decorative elements in granite, marble, quartz stone, sintered stone and other materials
Technical Parameters
|
Name |
Unit |
HKNC-500 Plus |
|
Diameter of saw blade |
mm |
Φ350–500 |
|
Dimensions of working platform |
mm |
3500×2100 |
|
Max. length of horizontal cutting |
mm |
3500 |
|
Max. cutting thickness |
mm |
120 |
|
Max. lifting stroke |
mm |
300 |
|
Max. lifting weight by suction cups |
kg |
200 |
|
Power of main motor |
kw |
18.8 |
|
Power of retractable electrospindle |
kw |
5.5 |
|
Power of cutter frame reciprocating motor |
kw |
1.6 |
|
Power of crossbeam shifting motor |
kw |
1.3 |
|
Power of hydraulic station motor |
kw |
2.2 |
|
Power of lifting motor |
kw |
3 |
|
Gross power |
kw |
32.4 |
|
Water consumption |
m³/h |
2 |
|
Dimensions (L×W×H) |
mm |
6000×3380×3000 |
|
Gross weight |
kg |
5800 |
Our After‑Sales Service
Before shipment, our professional technicians will conduct comprehensive commissioning of the equipment. Products can only be delivered after passing inspection by our quality‑control department.
A 12‑month warranty is provided. Within the warranty period, free spare parts will be supplied for damages excluding consumables and wearing parts. Parts required after the warranty period shall be purchased at a favorable price.
Free services including installation and operation training are available.
We offer lifetime free technical support for customers.
7×24‑hour technical support is accessible.
Overseas technician dispatch service is provided.
English‑language manuals, operation guides and relevant videos are supplied.
FAQ
Q: Who is Fujian Hualong Machinery Co., Ltd.?
A: Fujian Hualong Machinery Co., Ltd., located in Putian, Fujian, is a leading full-chain manufacturer of high-end intelligent stone processing machinery in China. We are a National Specialized Giant Enterprise and Fujian Provincial Key Industrial Cultivation Enterprise. Our business covers independent R&D, intelligent manufacturing, global sales and overseas after-sales service. We own a post-doctoral workstation and provincial technical center. Hualong is the only Chinese stone machinery enterprise with complete R&D, production, consumable supporting and global after-sales export operation system.
Q: What honors has Hualong Machinery obtained?
A: National High-tech Enterprise, National Intellectual Property Advantage Enterprise, National First Set Major Technical Equipment certification, AEO Advanced Customs Certification, CE & TUV certification.
Q: What types of stone can the HKNC-500 Plus process?
A: It can process natural and artificial stones including marble, granite, quartz stone and sintered stone. It is suitable for kitchen countertops, stair treads, curved stone, stone feature walls and various custom stone projects.
Q: What are the functional advantages of the 5+1 axis?
A: 5-axis interpolation plus 1 high-speed electric spindle. The cutting head rotates 0–360°, the saw blade tilts 0–90°, and the worktable tilts 0–85°.
Q: What control system does the machine adopt? Does it support CAD drawing import?
A: Yes. It is equipped with Italian ESA CNC system and Pegasus CAD/CAM software, enabling direct import of CAD drawings. The slab camera positioning system optimizes large-slab nesting layout to improve slab utilization and reduce waste. It comes with touchscreen, USB and network interfaces for convenient program transfer.
Q: What trade terms are available?
A: Common trade terms such as FOB and CIF are supported.
