Fujian Hualong Machinery Co., Ltd., China welcomes you to visit our official website. Should you plan to purchase stone processing machinery, please feel free to contact us, and we will serve you wholeheartedly.
We supply full-process equipment for stone quarrying and deep processing. Our core product range includes quarrying machines, diamond wire saws, multi-blade saws, CNC bridge saws, polishing machines and stone engraving machines. We are capable of delivering turnkey solutions covering the entire stone quarrying and production workflow for global clients.

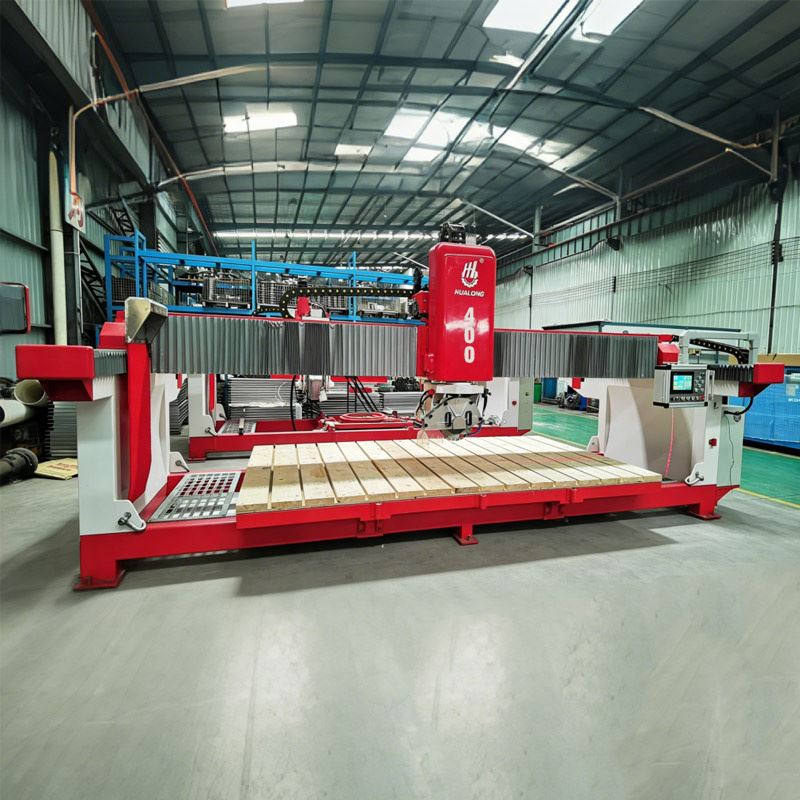

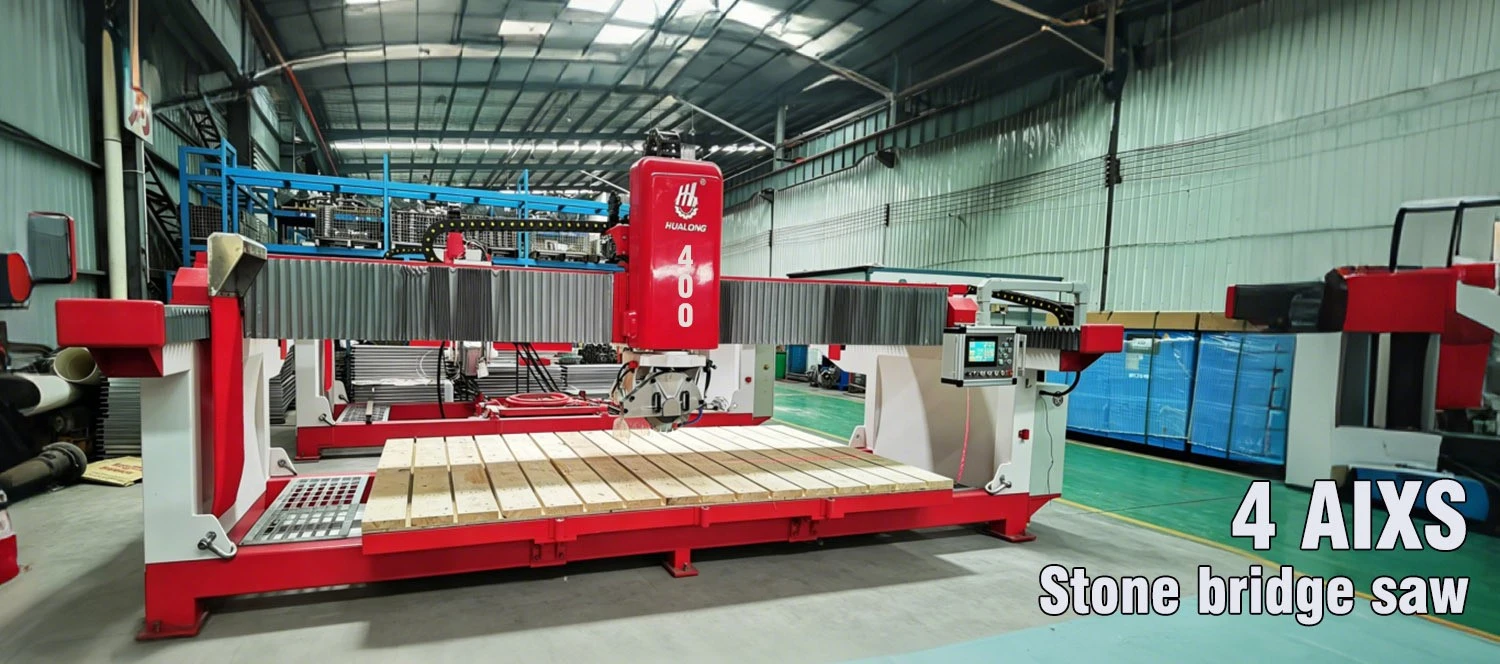

Hualong Machinery's 4-axis stone cutting machine is a bridge saw equipped with a PLC control system. Featuring user-friendly operation and easy learning curve, it is a standard model for slab edge trimming, chamfering and arc cutting.
It is mainly used for cutting marble, granite and quartz stone slabs to produce sized tiles, round table tops, tea table tops, floor paving slabs and dry-hanging wall panels, as well as for chamfer joint fabrication.
Core Functions & Configurations of 4-Axis Stone Cutting Machine
Equipped with PLC control system preloaded with multiple built-in cutting templates.
Accommodates saw blades up to Φ400 mm in diameter, capable of cutting slabs with a maximum thickness of 80 mm; machine models customizable per customer's slab dimensions.
Fitted with a 3500×2100 mm worktable to process oversized stone slabs.
Saw head tilts by 45° to execute chamfer cutting.
Cutting head rotates 360° for polygonal and curved cutting applications.
Worktable tilts up to 85° for convenient slab loading.
Integral cast beam for the main girder delivers outstanding structural rigidity and smoother, more stable cutting head movement.
Technical Parameters
|
NAME |
UNIT |
HLSQ-400 4 AXIS |
|
Diameter of saw blade |
mm |
350-400 |
|
Dimension of working platform |
mm |
3500*2100 |
|
Max.cutting size |
mm |
3500*2100*80 |
|
Cutting head rolation |
° |
0-360° |
|
Blade tilt |
° |
0°/45° |
|
Working table tilt |
° |
0°/85° |
|
Power of main motor |
kw |
15 |
|
Water consumption |
m³/h |
3.5 |
|
Gross weight |
kg |
4000 |
|
Dimensions (L x W x H) |
mm |
5700×3260×2765 |
Why Choose Hualong 4-Axis Stone Cutting Machine?
Hualong Machinery is an integrated stone machinery manufacturer specializing in R&D, production and sales. With over 30 years of industry experience, we maintain professional technical, production and after-sales service teams.
Our machinery has been exported to more than 100 countries worldwide, enabling us to deliver premium products and customized services for clients. The company is certified to ISO9001 standards and all our machines carry CE certification. We keep striving to supply optimal turnkey solutions for stone processing.
FAQ
Q: Can the machine model be customized as per requirements?
A: Yes, we also have various standard models for your selection.
Q: What control system is equipped on this machine?
A: It adopts a PLC control system.
Q: Does the machine come with CE certification?
A: Yes, the machine is CE-certified and complies with relevant quality and safety standards.
Q: Can cutting paths be generated directly by importing CAD drawings?
A: This model cannot support the function. If needed, we recommend our machines equipped with Italy ESA control system.
Q: What trade terms are available?
A: We accept mainstream terms including FOB, CIF and EXW.
Q: How long is the machine warranty period?
A: 12-month warranty is provided.
Q: Do you offer on-site installation and training for overseas buyers?
A: Yes, our professional technicians can be dispatched overseas to conduct on-site installation and operational training.
