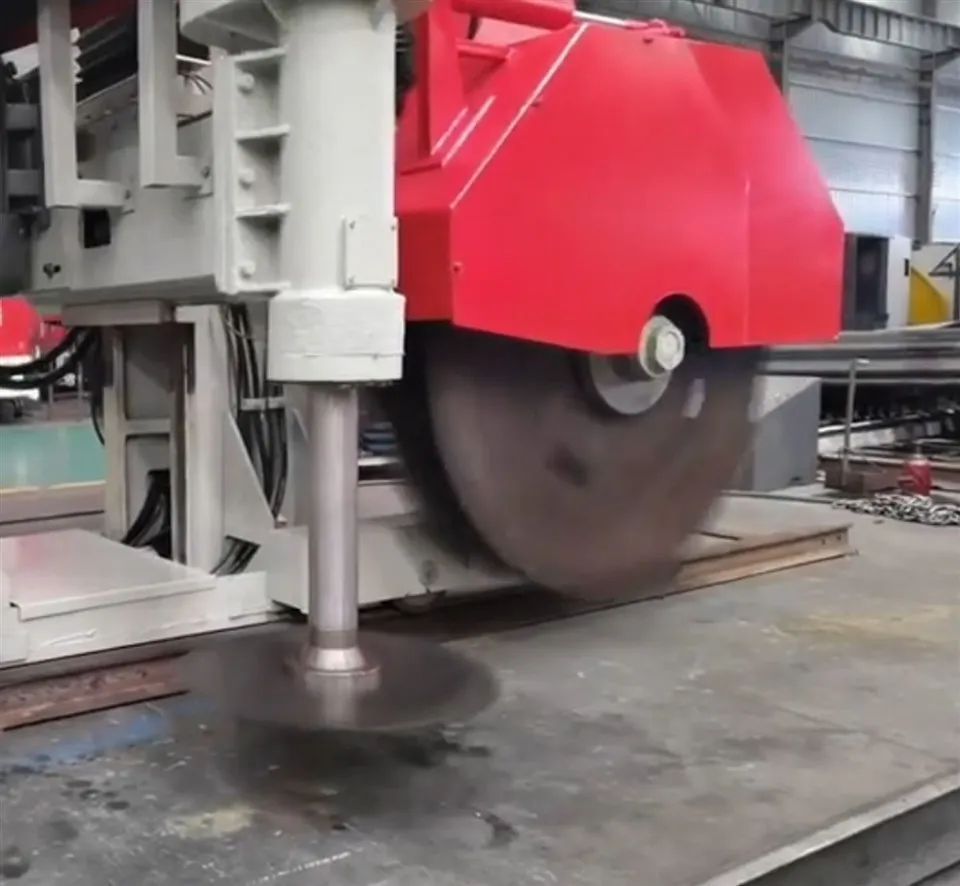

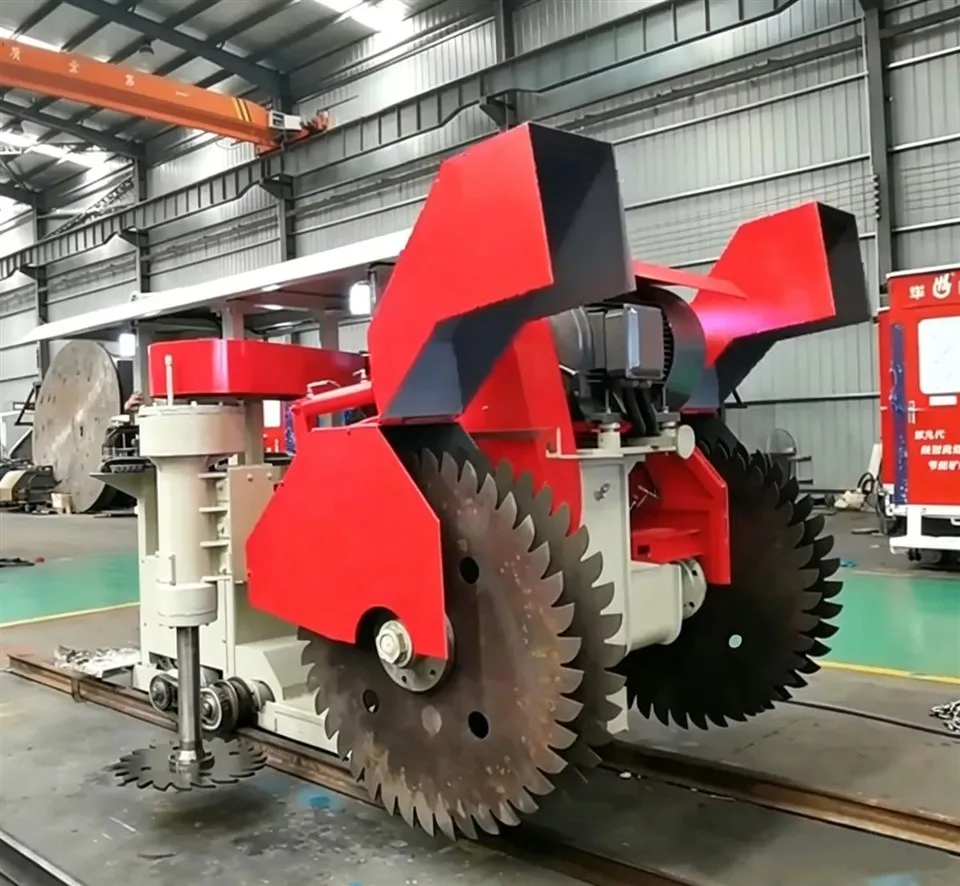

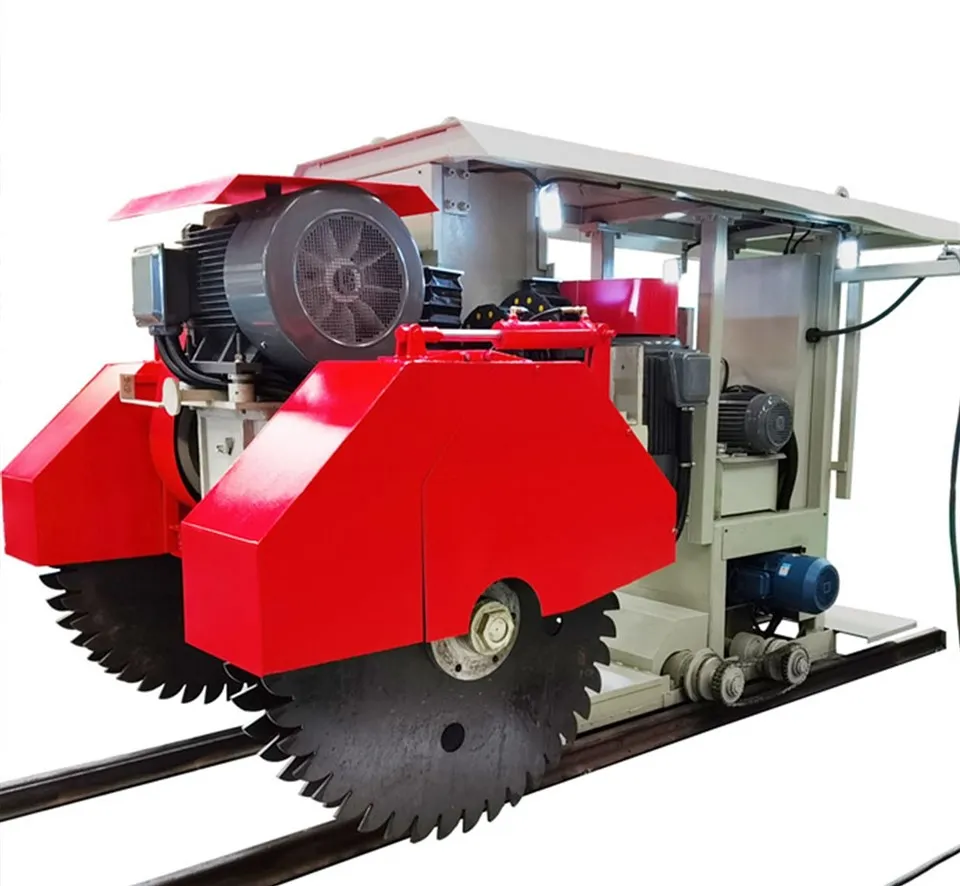

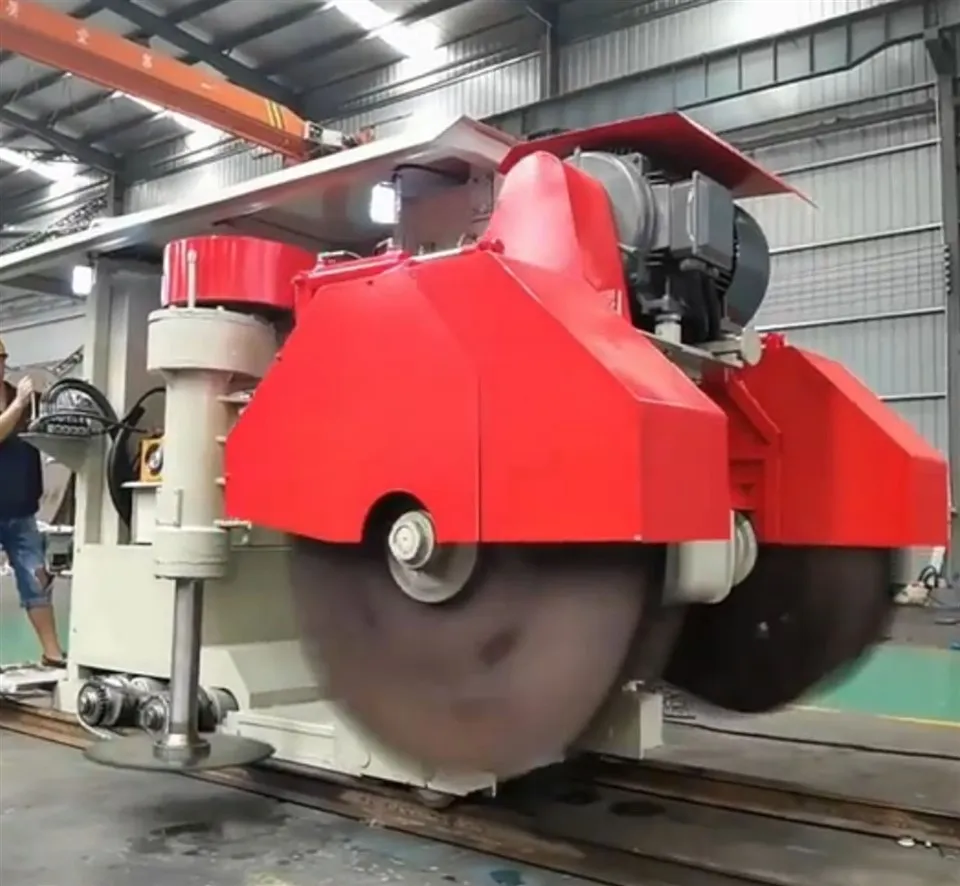

Hualong Machinery HKSS-1400 Sandstone Quarry Cutting Machine is designed for mining low-density soft stones such as sandstone, limestone, laterite rock and tuff. Adopting synchronous cross cutting technology, it can directly cut raw stone into standard blocks and greatly improve mining efficiency. This equipment is widely used in quarries across Africa, Southeast Asia, South America and other overseas regions.
Equipment Advantages
• Equipped with dedicated saw blades of only 12mm thickness, perfectly matched to the properties of the stones.
• Travel speed adjustable from 10 to 45 meters per minute for flexible adaptation to different stone hardness.
• Fitted with precision guide columns to ensure stable vertical lifting movement.
• Rail-type traveling design enables continuous operation under complex quarry working conditions.
• Adopts electrical components from Siemens and Schneider for reliable performance and long service life.
• Powered by a 75kW vertical main motor, a 45kW horizontal main motor and auxiliary motors.
• 12-month warranty for the whole machine, plus lifelong technical support.
Technical Parameters
|
NMAE |
Unit |
HKSS-1400 |
|
Diameter of the vertical |
mm |
1330 |
|
Diameter of the horizontal |
mm |
600 |
|
Blade Thickness |
mm |
12 |
|
Max.cutting depth |
mm |
500 |
|
cutting width |
mm |
1350-1750 |
|
velocity of approach |
m/min |
10-45 |
|
Max.stroke of the lifting cylinder |
mm |
700 |
|
Vertical main motor power |
kw |
75 |
|
Horizontal main motor power |
kw |
45 |
|
power of traction motor |
kw |
5.5 |
|
Hydraulic station motor power |
kw |
5.5 |
|
gross power |
kw |
133 |
|
gross weight |
kg |
6000 |
|
Dimensions |
mm |
4200×2060×2200 |
Application Scope
Suitable for mining various soft quarry stones including sandstone, limestone, laterite rock and tuff.
Key Markets
Regions with abundant soft stone reserves such as Kenya, India, Indonesia, Nigeria and Tanzania.
Value in Use
Finished products are ready for direct application, eliminating procedures like crushing and shaping.
FAQ
Q: Are you the equipment manufacturer?
A: Yes. Hualong Machinery is a stone machinery manufacturer with over 30 years of industry experience.
Q: Does the equipment have CE certification?
A: Yes, it has obtained CE certification.
Q: Do the saw blades need to be fitted with segments?
A: Yes, special segments are required for the saw blades.
Q: Do you provide on-site installation and operation training for overseas clients?
A: Yes. We offer overseas on-site services including equipment installation and technical training.
Q: What trade terms do you accept?
A: We support mainstream trade terms such as FOB, CIF and EXW.
Q: What is the warranty period of the equipment?
A: We provide a 12-month warranty.
Q: How long is the production lead time?
A: The regular production cycle is around 30 days.
Why Choose Hualong HKSS-1400
With more than 30 years of experience in manufacturing stone quarry machinery, Hualong HKSS-1400 has been put into operation in multiple countries including Kenya and India, and fully proven in actual working conditions. It runs stably for long-term operation at quarries across Africa and Southeast Asia, earning an excellent reputation.
Contact us now to get your exclusive quotation.
